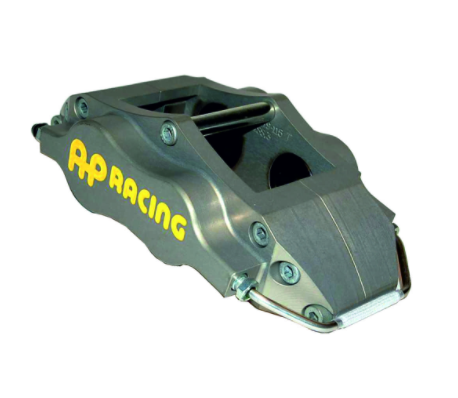

Radial 4 Piston - Two Piece Billet - CP5219

Applications:
- Front & Rear for 13" wheel.
- Lightweight Sportscar.

Features:
- Radial Mount, 152 x 42.78mm centres.
- Two piece billet aluminium alloy body.
- Suits 280 x 25.4mm disc.
- High Grade Aluminium pistons.
- CNC machined from billet.
- Superior dynamic performance than that of CP4219.
- Stainless Steel wear plates.

Part Numbers:
- RHT = CP5219-16S0. / - LHT = CP5219-17S0.
- RHL = CP5219-18S0. / - LHL = CP5219-19S0.

| Brake Pad Information|-|

CP3215D42

- Pad Area = 51.7cm²
- Pad Depth = 42.0mm
- Thickness = 16.8mm || TECHNICAL SPECIFICATIONS || Piston Sizes - mm | - 34.9 x 2

• 41.3 x 2 || Piston Area cm³ | 45.92 || Disc Diameter - mm | 280.0 || Disc Thickness - mm | 25.4 || Weight (no pads) - Kg | 1.98 || Hydraulic Threads | M10x1.0 || Mounting Type | Radial || Mounting Centres - mm | 152.0 || Mounting Offset - mm | 42.78 || Mounting Hole - mm | 10.27 || ‘PL’ Dimension - mm | 56.81 || Bleed Screw Tightening Torque | 17Nm || SPARE PARTS || Pistons | - 34.9 = CP2876-101
• 41.3 = CP2270-92 || Seal Repair Kit | CP4518-GK || Pad Retainer | Bolt = CP4219-122 || Pad Retainer Bolt | CP5100.126 || Wear Plates | CP4219-7 || Bleed Screw | CP3880-1 || Fluid Pipe | CP5219-6 |

Feel free to contact us at info@mlperformance.co.uk should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

AP-RACING-CP5219-17S0

Manufactured by

AP RACING
