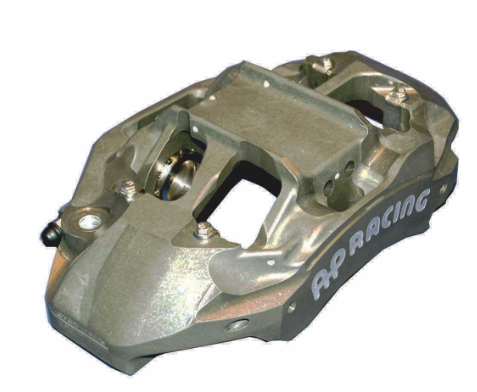

• AP RACING CP6840-5S4L BRAKE CALIPER RADI-CAL (GK)LHLX32.0-CP6840
1 1
Animated GIF

AP RACING

AP RACING CP6840-5S4L BRAKE CALIPER RADI-CAL (GK)LHLX32.0-CP6840

AP RACING CP6840-5S4L BRAKE CALIPER RADI-CAL (GK)LHLX32.0-CP6840

£3,693.00 Inc. VAT
£2,765.00 £3,693.00 Inc. VAT
9th Anniversary Badge

Price Match

Price Match Guarantee

If you find a lower price at an eligible US retailer website, we will match it.

Questions about this part?

Our technical advisors can confirm fitment for your vehicle. Contact us with your vehicle details.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

4 Piston - WRC/S2000 - Forged Radi-CAL - Front - CP6840

Applications:
- WRC Turbo.
- S2000 Tarmac / Gravel Specifications.
- Manufactured to meet FIA R4T & R5 cost cap.

Features:
- Radial mount, 180 x 42mm centres.
- Forged monobloc Aluminium alloy body.
- Suits 355 or 300 x 32mm iron discs.
- Benefits from radical asymmetric design concept for superior dynamic performance.
- Ducted air cooling features, reduces caliper temperatures.
- Monobloc aluminium alloy body.
- Internally Ported

- No external bridge pipe.
- Available with either a "Push In" or an "M10 x 1.0 Threaded" Inlet.
- Stainless steel pistons.
- High temperature, low drag seals fitted as standard.
- Manufactured with bleedscrew and pipe protection.

Part Numbers:
Calipers with "Push-In" inlet.
- RHL = CP6840-4S4L
- LHL = CP6840-5S4L

Calipers with "M10 x 1.0 Threaded" inlet.
- RHL = CP6840-6S4L
- LHL = CP6840-7S4L

Brake Pad Information
- Gravel Pad CP6820D46
- Pad Area = 61.7cm²
- Pad Depth = 46.0mm
- Thickness = 16.0mm

- Tarmac Pad CP6820D48
- Pad Area = 63.2cm²
- Pad Depth = 48.0mm
- Thickness = 16.0mm

TECHNICAL SPECIFICATIONS
Piston Sizes - mm
- 34.9 x 2
- 41.3 x 2

Piston Area cm³ 45.9
Disc Diameter - mm
- Max = 355.0
- Min = 300.0

Disc Thickness - mm 32.0
Weight (no pads) - Kg 2.16
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres - mm 180.0
Mounting Offset - mm 42.0
Mounting Hole - mm 10.175
‘PL’ Dimension - mm 57.5
Bleed Screw Tightening Torque 17Nm
Dry Break Tightening Torque 13Nm

SPARE PARTS
Pistons
- 34.9mm = CP6820-106
- 41.3mm = CP6820-107
Seal Repair Kit CP8518-GK

Wear Plates - CP6820-113 x 4
Beam Wear Plate = CP6820-109
Anti-Knockback Springs CP6518-4LBLL
Bleed Screw CP3880-1
