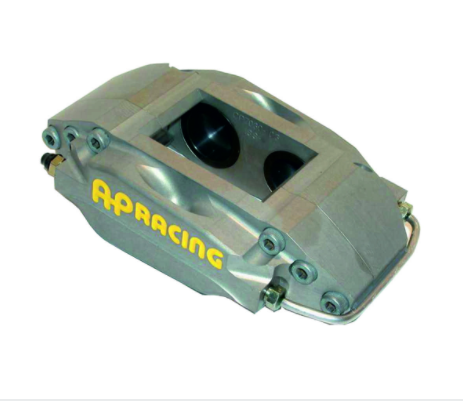

Radial 4 Piston - Two Piece Billet F3 Caliper - CP7030
Applications:
- F3 Front & Rear.

Features:
- Radial Mount, 120 x 40mm centres.
- Two piece aluminium alloy body.
- CNC machined from billet.
- Lightweight.
- Suits 278 x 17mm or 16mm disc.
- Aluminium pistons.
- Complete system (calipers discs and bells) available.
- Stainless steel wear plates fitted.

Part Numbers:
- RHT = CP7030-2S0. / - LHT = CP7030-3S0.
- RHL = CP7030-4S0. / - LHL = CP7030-5S0.

Brake Pad Information
CP3345D38

- Pad Area = 38.7cm²
- Pad Depth = 38.0mm
- Thickness = 16.0mm

TECHNICAL SPECIFICATIONS
Piston Area cm³ 45.92
Piston Sizes - mm
- 34.9 x 2
- 41.3 x 2
Disc Diameter - mm 278.0
Disc Thickness - mm - Max = 17.0 / Min = 16.0
Weight (no pads) - Kg 1.5
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres - mm 120.0
Mounting Offset - mm 40.0
Mounting Hole - mm 10.2
‘PL’ Dimension - mm 50.3
Bleed Screw Tightening Torque 17n=Nm

SPARE PARTS
Pistons
- 34.9 = CP7030-108
- 41.3 = CP7030-107

Seal Repair Kit CP4518-GK
Wear Plates CP7030-106 x 4
Bleed Screw CP3720-173
Fluid Pipe CP7030-6
