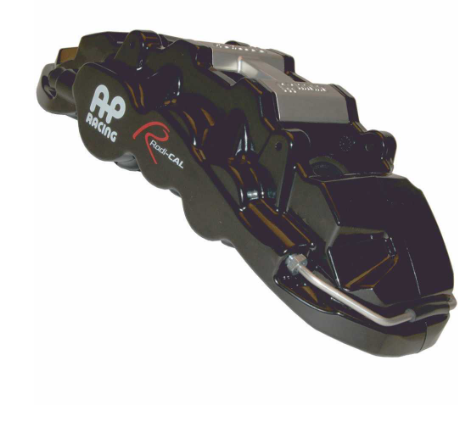

CP8520 Family - 62.5cm² Piston Area

Applications:
- Performance Road Front.
- Factory Radi-CAL Brake Kits.

Features:
- Benefits from a radical asymmetric design concept.
- Radial Mount, 195mm centres.
- Suits 410mm or 380mm x 36mm thick discs.
- Forged two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Pad anti-rattle clip fitted.

Black Caliper Part Numbers:
- RHT = CP8520-2S0BG
- LHT = CP8520-3S0BG.
- RHL = CP8520-4S0BG
- LHL = CP8520-5S0BG

Red Caliper Part Numbers:
For Red calipers add 'R2' to end of Part Number e.g.
CP8520-2S0R2

Brake Pad Information

- Pad Area = 108.9cm²
- Pad Depth = 70mm
- Thickness = 16.75mm

CALIPER TECHNICAL SPECIFICATIONS
Piston Sizes - mm 31.8 / 36.0 / 41.3
Piston Area - cm² 62.5

Disc Diameter - mm
- Max = 410.0
- Min = 380.0

Disc Thickness - mm 36.0
Weight (No Pads) - Kg 4.65
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres - mm 195.0
Mounting Offset - mm 49.50
Mounting Hole - mm 12.10
PL Dimension - mm 70.0
Bleed Screw Tightening Torque - Nm 17

CALIPER SPARES
Pistons
- 31.8mm = CP8336-116
- 36.0mm = CP8520-107
- 41.3mm = CP8335-111

Seal Repair Kit CP4527-EHK
Pad Retainer Type / Part No. Pin / CP7555-116
H / Piece and Bolt CP8520-106 & CP3596-112ST x 2
Bleed Screws CP3880-1
Pad Anti Rattle Clip
CP8520-110
