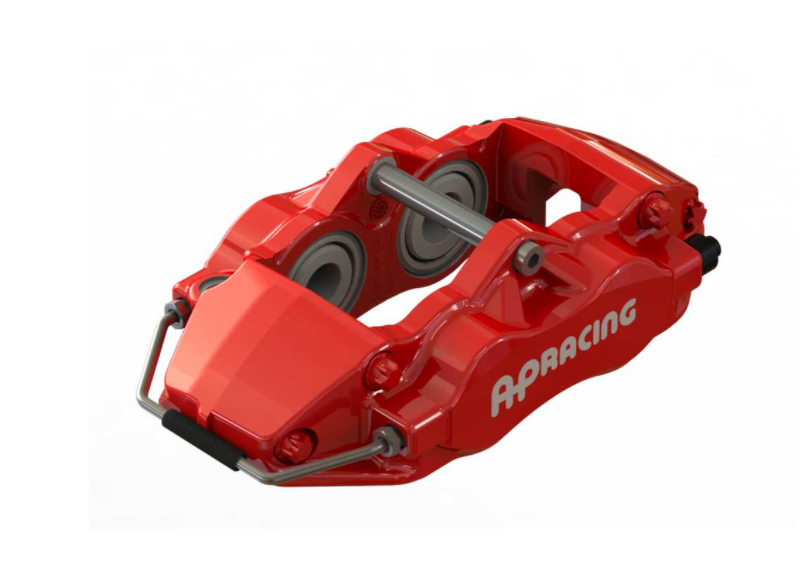

• AP RACING CP9200-2S0R2 BRAKE CALIPER RADI-CAL (JK) RHTX28.0-CP3215 (RED)
1 1
Animated GIF

AP RACING

AP RACING CP9200-2S0R2 BRAKE CALIPER RADI-CAL (JK) RHTX28.0-CP3215 (RED)

AP RACING CP9200-2S0R2 BRAKE CALIPER RADI-CAL (JK) RHTX28.0-CP3215 (RED)

£1,039.00 Inc. VAT
£778.00 £1,039.00 Inc. VAT
9th Anniversary Badge

Price Match

Price Match Guarantee

If you find a lower price at an eligible US retailer website, we will match it.

Questions about this part?

Our technical advisors can confirm fitment for your vehicle. Contact us with your vehicle details.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

CP9200 - Forged Front - 152mm Mounting Ctrs

Applications:
- Front.
- Factory Big Brake Kit.

Features:
- Radial Mount, 152mm centres.
- Suits 330 x 28mm Max / 26mm Min Disc.
- Forged two piece Aluminium alloy body. - Designed to replace CP5200 caliper.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Pad anti-rattle clip fitted.

IMPORTANT NOTE: CP9200 replaces CP5200 family BUT IS NOT A DIRECT REPLACEMENT DIMENSIONALLYWhilst mounting hole centres, offset and PL dimensions are the same as CP5200-806/7/8/9S4 variant, there are differences in the radial profiles dimensions and pad location - please check installation before purchasing.When replacing CP5200 calipers with CP9200 in brake kits please contact AP Racing technical for guidance.

Black Caliper Part Numbers:
- RHT = CP9200-2S0BG / - LHT = CP9200-3S0BG.
- RHL = CP9200-4S0BG / - LHL = CP9200-250BG.

Red Caliper Part Numbers:
For Red calipers add 'R2' to end of Part Number e.g.
CP9200-2S0R2

Brake Pad Information

- Pad Area = 57.4cm²
- Pad Depth = 50.3mm
- Thickness = 16.8mm

TECHNICAL SPECIFICATIONS
Piston Sizes - mm
38.1 x 2
41.3 x 2

Disc Diameter - mm 330

Disc Thickness - mm
- Max = 28
- Min = 26

Weight (no pads) - Kg 2.43
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres - mm 152
Mounting Offset - mm 46.86
Mounting Hole - mm 10.1 Nom
‘PL’ Dimension - mm 60.36
Bleed Screw Tightening Torque 17Nm

SPARE PARTS
Pistons
- 38.1 = CP9200-108
- 41.3 = CP9200-109

Seal Repair Kit CP4527-JK
Pad Retainer Type / Part No
Bolt - CP5200-124

Pad Retainer Cap Head Bolt Part No
CP3596-112ST

Bleed Screw CP4970-125
Pad Anti-Rattle Clip CP5200-151
