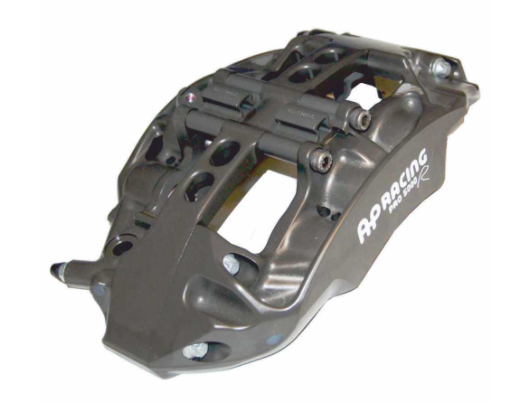

AP Racing Pro5000R Radi-CAL Six Piston (Left side)

TypicalApplications:
- Budget, general competition use.
- Single make race series.

Features:
- Benefits from a radical asymmetric design concept.
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece aluminium alloy body.
- Radial mount, 180.0mm x 42.0mm centres.
- Suits 390.0mm Max or 362.0mm Min x 36.0mm Max / 32.0mm Min thick disc.
- Stainless Steel Pistons.
- High temperature seals.
- 7lb Anti-knockback springs fitted.
- Stainless Steel wear plates.

Part Numbers:
- RH = CP9668-2S7L.
- LH = CP9668-3S7L.

Brake Pad - CP3558D54
- Pad Area = 77.4cm²
- Pad Depth = 54.0mm
- Thickness = 25.0mm

TECHNICAL SPECIFICATIONS
Piston Sizes - mm - 27.0 x 2
- 31.8 x 2
- 38.1 x 2
Piston Area - cm² 50.1
Disc Diameter - mm - Max = 390.0
- Min = 362.0
Disc Thickness - mm - Max = 36.0
- Min = 32.0
Weight - No pads - Kg 3.1
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres - mm 180.0
Mounting Offset - mm 42.0
Mounting Hole - mm 12.27 - 12.17
PL Dimension - mm 63.5
Bleedscrew Tightening Torque - Nm 17

SPARE PARTS
Pistons
- 27.0 = CP9665-114
- 31.8 = CP9665-115
- 38.1 = CP9665-116

Seal Repair Kit CP8518-CEJ

Ani-Knockback Spring Kit CP6518-7LBSSL

Pad Retainer Kits
- Standard retainer - CP9665-12
- Quick Release - CP9665-13

Wear Plates
RH = CP9668-106
LH = CP9668-107

Bleedscrew Kit CP3880-1
