Brembo 1M-.8049A 6-Piston Monobloc Calipers 355x32mm (14") 2-Piece Discs Brake Disc (Front)

Brembo 1M-.8049A 6-Piston Monobloc Calipers 355x32mm (14") 2-Piece Discs Brake Disc (Front)

$4,425.96 Inc. VAT
$5,087.32 $4,425.96 Inc. VAT
9th Anniversary Badge

Price Match

Price Match Guarantee

If you find a lower price at an eligible US retailer website, we will match it.

Questions about this part?

Our technical advisors can confirm fitment for your vehicle. Contact us with your vehicle details.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details
This is 6-Piston Monobloc Calipers | 355x32mm (14") 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included, Front



Caliper

Caliper Body : Cast Monobloc Radial Mount
Caliper Piston Configuration : 6-Piston
Caliper Piston Design And Insert Type : Inner Pressure Seal / OEM Approved Dust Boot

Disc

Disc Material/Finish : Advanced High Carbon Alloy / Corrosion Resistant Plating
Disc Diameter : 328mm
Disc Width (Measurement) : 28mm
Disc Air Gap (Measurement) : 17mm
Disc Annulus (Measurement) : 54mm
Disc Construction : 2-Piece Disc Assembly
Disc Vane Design (Measurement) : Vented Curved 48 Vane
Disc To Hat Mounting System : Floating D-Bobbin with Anti Rattle Spring

Friction Material

Pad Compound : Brembo High Performance FM1000
Pad Volume / Surface Area : 48.2 | 53.6



  • Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
  • Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation





  • 228I (EXCLUDING M-SPORT BRAKES) (F22)
  • 228I M-SPORT BRAKES (EXCLUDING XDRIVE) (F22)
  • 230I (EXCLUDING M-SPORT BRAKES) (F22)
  • 230I M-SPORT BRAKES (EXCLUDING XDRIVE) (F22)
  • 320I (EXCLUDING XDRIVE / M-SPORT BRAKES) (F30)
  • 320I XDRIVE (EXCLUDING M-SPORT BRAKES) (F30)
  • 328D / 328D XDRIVE (EXCLUDING M-SPORT BRAKES) (F30)
  • 328D / 328D XDRIVE M-SPORT BRAKES (F30)
  • 328D XDRIVE TOURING (EXCLUDING M-SPORT BRAKES) (F31)
  • 328D XDRIVE TOURING M-SPORT BRAKES (F31)
  • 328I (EXCLUDING XDRIVE / M-SPORT BRAKES) (F30)
  • 328I M-SPORT BRAKES (EXCLUDING XDRIVE) (F30)
  • 328I XDRIVE (EXCLUDING M-SPORT BRAKES) (F30)
  • 328I XDRIVE GRANTURISMO / TOURING (EXCLUDING M-SPORT BRAKES) (F31 / F34)
  • 328I XDRIVE GRANTURISMO / TOURING M-SPORT BRAKES (F31 / F34)
  • 328I XDRIVE M-SPORT BRAKES (F30)
  • 330I (EXCLUDING XDRIVE / M-SPORT BRAKES) (F30)
  • 330I M-SPORT BRAKES (EXCLUDING XDRIVE) (F30)
  • 330I XDRIVE (EXCLUDING M-SPORT BRAKES) (F30)
  • 330I XDRIVE GRANTURISMO / TOURING (EXCLUDING M-SPORT BRAKES) (F31 / F34)
  • 330I XDRIVE GRANTURISMO / TOURING M-SPORT BRAKES (F31 / F34)
  • 330I XDRIVE M-SPORT BRAKES (F30)
  • 335I / 335I XDRIVE (EXCLUDING M-SPORT BRAKES) (F30)
  • 335I / 335I XDRIVE GRANTURISMO (EXCLUDING M-SPORT BRAKES) (F34)
  • 340I / 340I XDRIVE (EXCLUDING M-SPORT BRAKES) (F30)
  • 340I / 340I XDRIVE GRANTURISMO (EXCLUDING M-SPORT BRAKES) (F34)
  • 428I (EXCLUDING XDRIVE / M-SPORT BRAKES) (F32 / F33)
  • 428I / 428I XDRIVE GRAN COUPE (EXCLUDING M-SPORT BRAKES) (F36)
  • 428I / 428I XDRIVE GRAN COUPE M-SPORT BRAKES (F36)
  • 428I M-SPORT BRAKES (EXCLUDING XDRIVE) (F32 / F33)
  • 428I XDRIVE (EXCLUDING M-SPORT BRAKES) (F32 / F33)
  • 428I XDRIVE M-SPORT BRAKES (F32 / F33)
  • 430I (EXCLUDING XDRIVE / M-SPORT BRAKES) (F32 / F33)
  • 430I / 430I XDRIVE GRAN COUPE (EXCLUDING M-SPORT BRAKES) (F36)
  • 430I / 430I XDRIVE GRAN COUPE M-SPORT BRAKES (F36)
  • 430I M-SPORT BRAKES (EXCLUDING XDRIVE) (F32 / F33)
  • 430I XDRIVE (EXCLUDING M-SPORT BRAKES) (F32 / F33)
  • 430I XDRIVE M-SPORT BRAKES (F32 / F33)
  • 435I / 435I XDRIVE (EXCLUDING M-SPORT BRAKES) (F32 / F33)
  • 435I / 435I XDRIVE GRAN COUPE (EXCLUDING M-SPORT BRAKES) (F36)
  • 440I / 440I XDRIVE (EXCLUDING M-SPORT BRAKES) (F32 / F33)
  • 440I / 440I XDRIVE GRAN COUPE (EXCLUDING M-SPORT BRAKES) (F36)
  • M135I (F20 / F21)
  • M140I (F20 / F21)
  • M235I (F22)
  • M240I (F22)

Feel free to contact us at info@mlperformanceusa.com should you wish to double check!



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your license plate or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

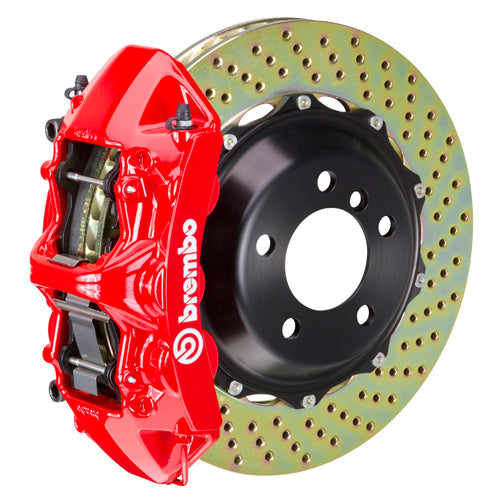

BREMBO-1M1.8049A2 (Cross Drilled / Red)

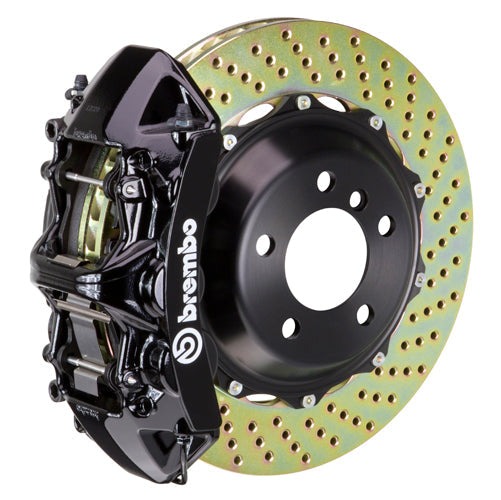

BREMBO-1M1.8049A1 (Cross Drilled / Black)

BREMBO-1M1.8049A3 (Cross Drilled / Silver)

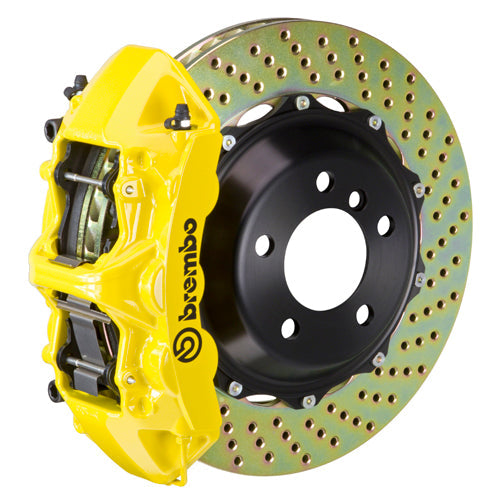

BREMBO-1M1.8049A5 (Cross Drilled / Yellow)

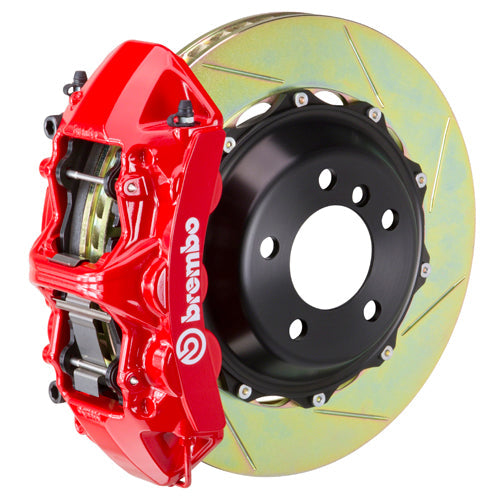

BREMBO-1M2.8049A2 (TY1 / Red)

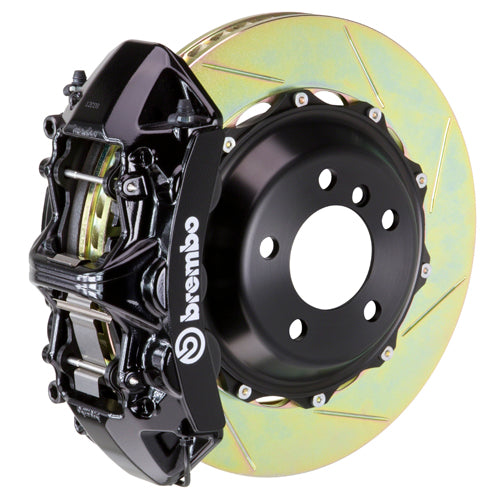

BREMBO-1M2.8049A1 (TY1 / Black)

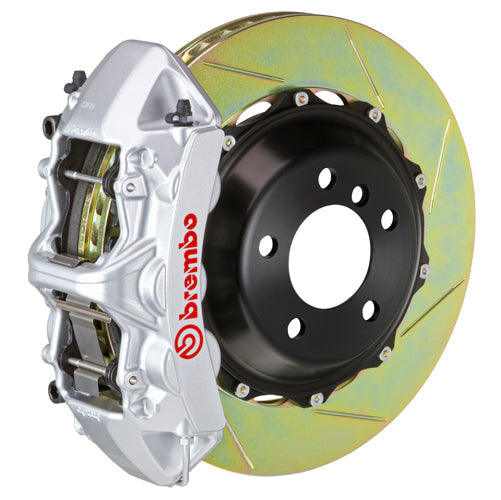

BREMBO-1M2.8049A3 (TY1 / Silver)

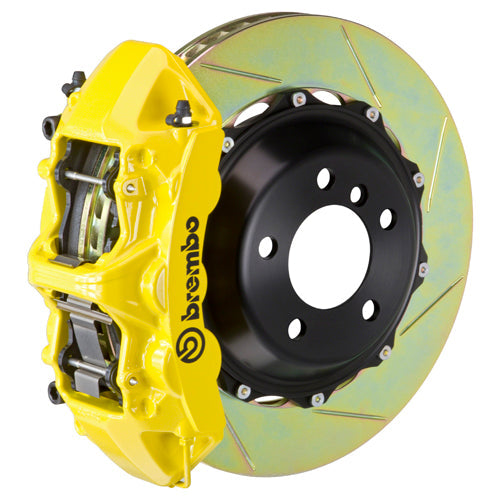

BREMBO-1M2.8049A5 (TY1 / Yellow)

BREMBO-1M3.8049A2 (TY3 / Red)

BREMBO-1M3.8049A1 (TY3 / Black)

BREMBO-1M3.8049A3 (TY3 / Silver)

BREMBO-1M3.8049A5 (TY3 / Yellow)
