CSF BMW B48 B58 Charge Cooler Water Radiator (M140i, M240i, 340i & 440i)

CSF BMW B48 B58 Charge Cooler Water Radiator (M140i, M240i, 340i & 440i)

£626.00 Inc. VAT
£623.00 £626.00 Inc. VAT
9th Anniversary Badge

Price Match

Price Match Guarantee

If you find a lower price at an eligible US retailer website, we will match it.

Questions about this part?

Our technical advisors can confirm fitment for your vehicle. Contact us with your vehicle details.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

The CSF Chargecooler Water Radiator AKA Heat Exchanger is the most technologically advanced on the market.

Independently proven to drop intake air temperatures by 10C vs. the OE heat exchanger. Car tested was a B58 car with Pure Turbos Stage 2 Turbo Upgrade!

  • Drops Intake Air Temps
  • Drops Intake Air Temps Consistently

The tuning potential for the charge-cooled M1/240i, 1/2/3/420i and 1/2/3/425i is huge. However, once boost levels are increased the charge air temperature increases which is due to compressed air heating up. The stock cooling system works okay on a stock car but once boost levels are increased and more heat is introduced it begins to struggle.

Increased heat robs power in several ways, the main being that hotter air is less dense and results in less oxygen which is key for power and with the hotter air the risk of knock is also increased, to counter this the ECU will introduce its safety protocols to reduce power until the air is cool again.

The only way to maintain and improve performance is to reduce the temperature is by improving the cooling performance.

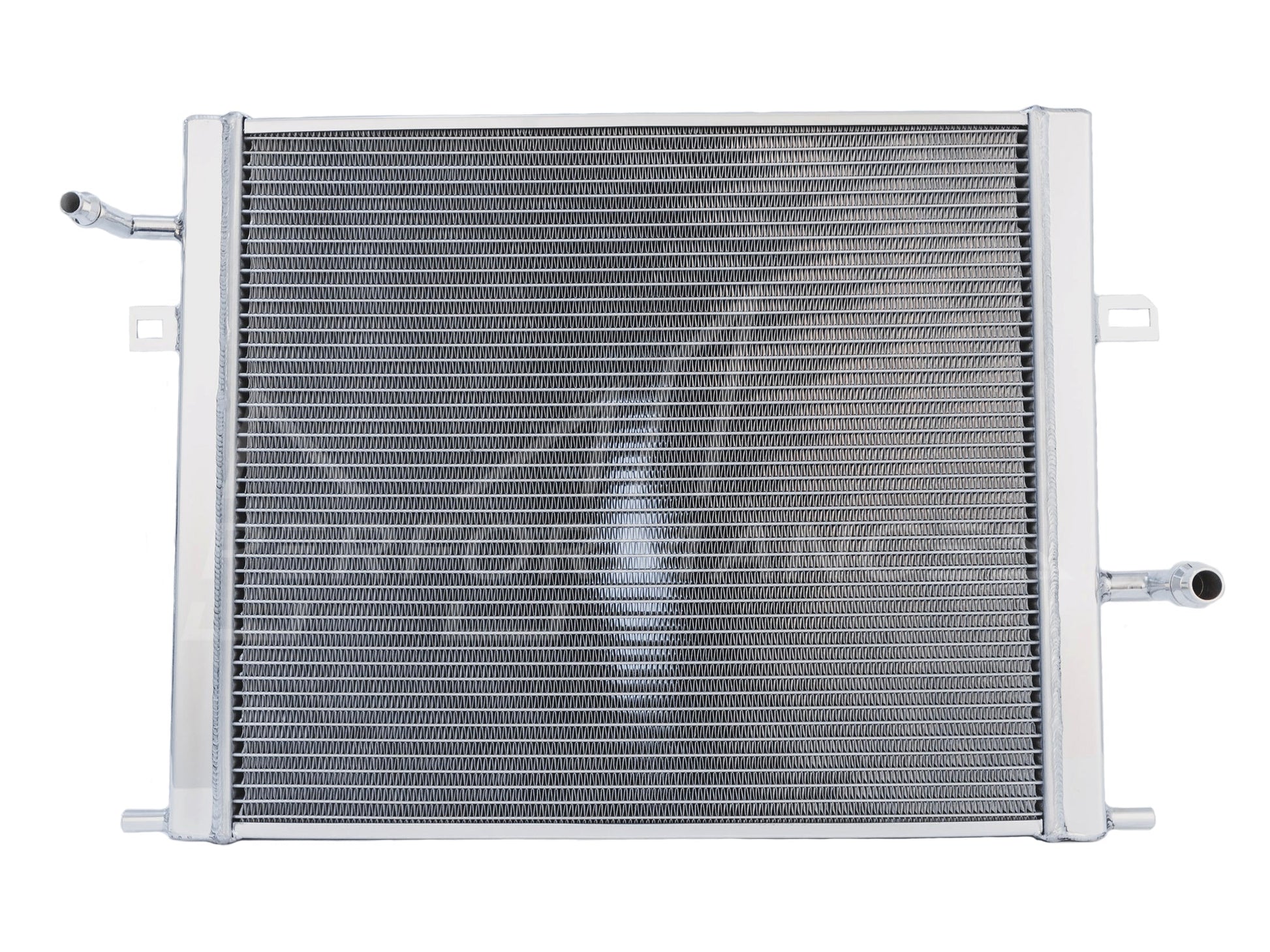

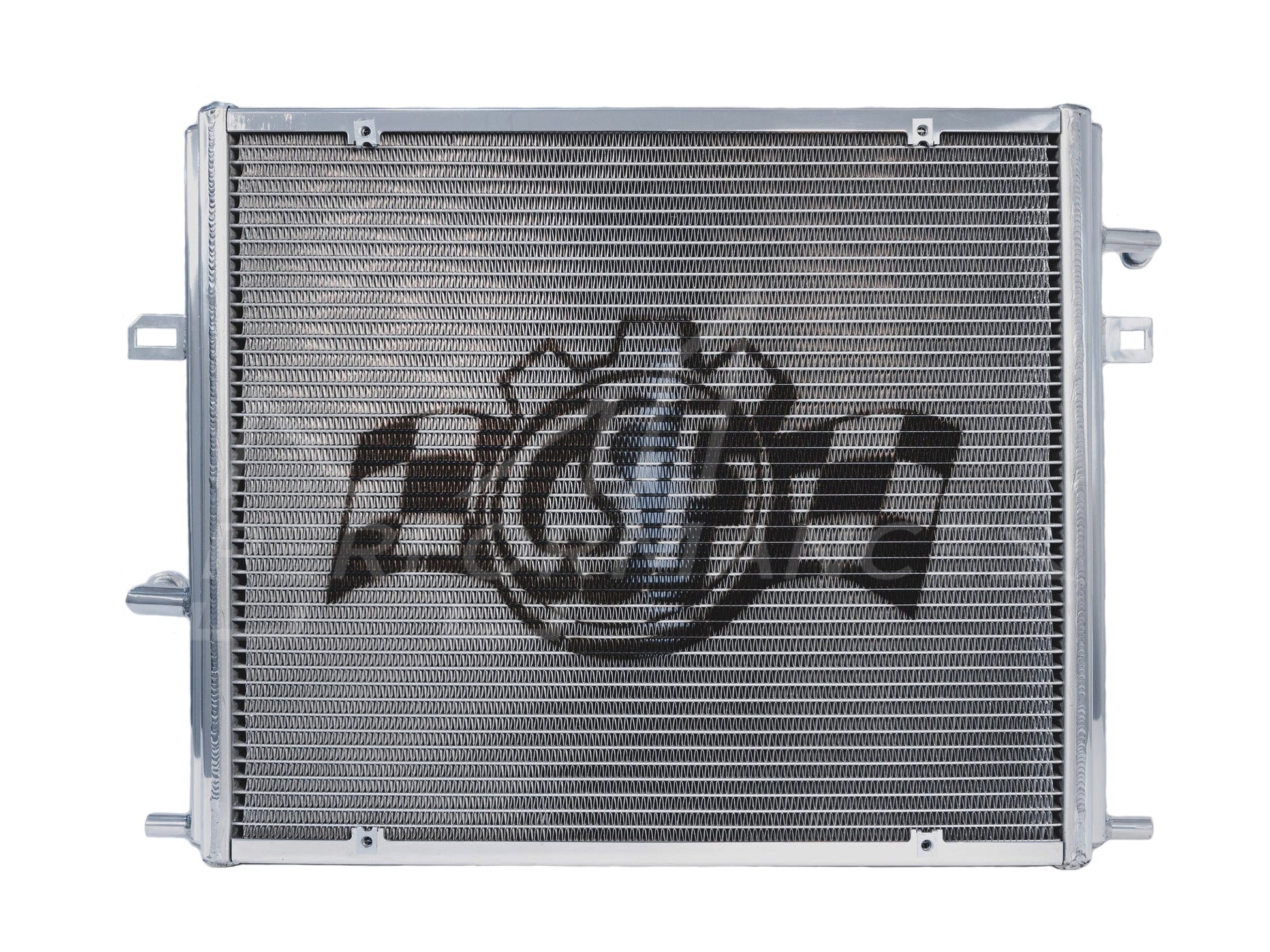

Featuring a super thick 68mm dual-row core which maximises the space available with zero cutting. The Triple Pass design means that coolant passes through the core three times before the outlet for the coolest temperatures. Another feature which you will not find in other designs is CSF's unique B-Tube technology which uses a uniquely shaped tube, this allows CSF to use a thinner material whilst maintaining strength for an incredibly lightweight core which also improves heat transfer; it's around 15% more efficient than regular O-Tubes in the same space.

Matched with a rock guard, just like the OE part. The CSF Charge Cooler Water Radiator/Heat Exchanger is the ultimate cooling upgrade for the B58/B48 powered motors.

  • Worlds largest 2-row core (68mm)
  • CSF’s B-Tube technology
  • Triple Pass

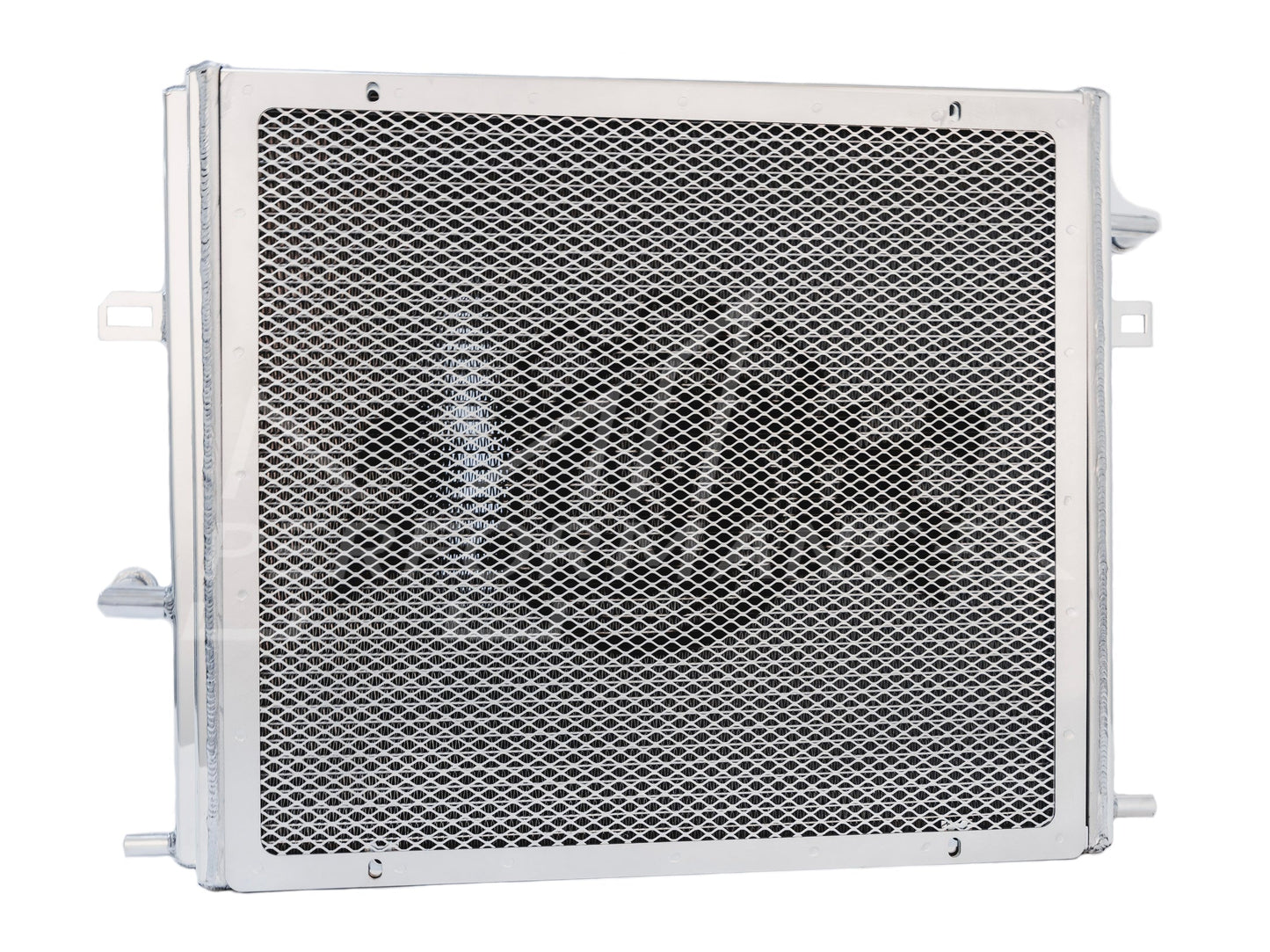

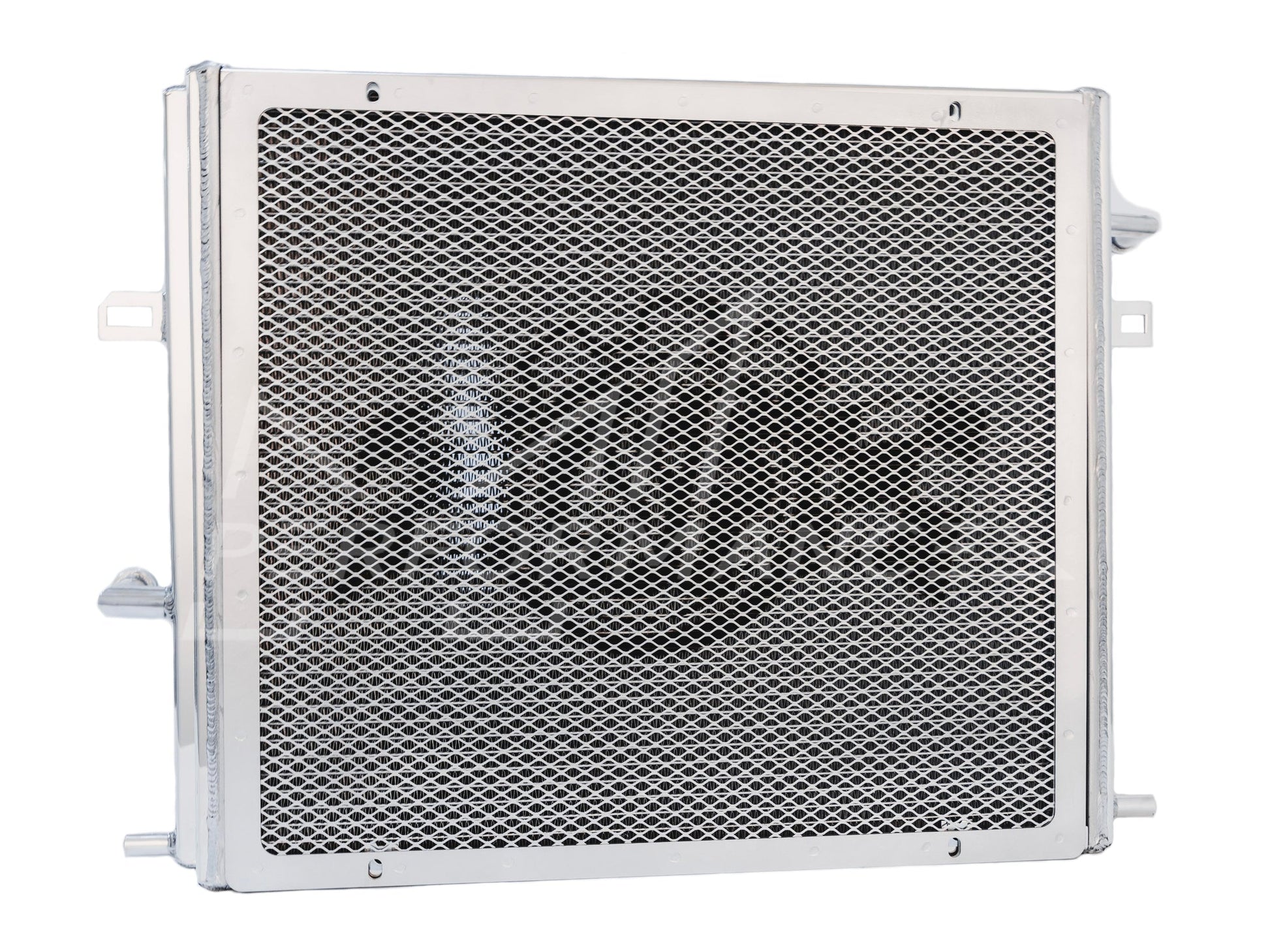

  • Removable Rock Guard (just like the original!)

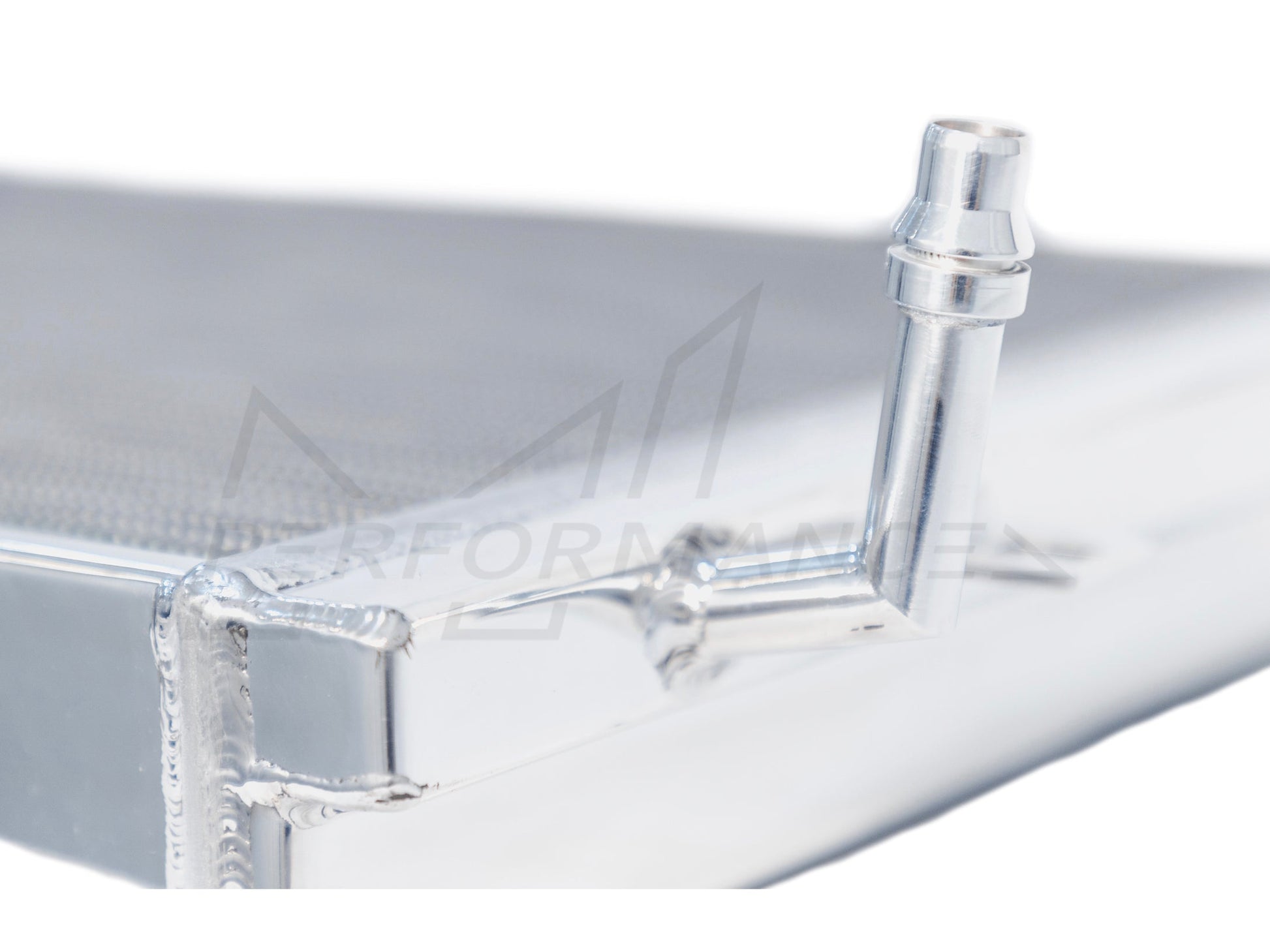

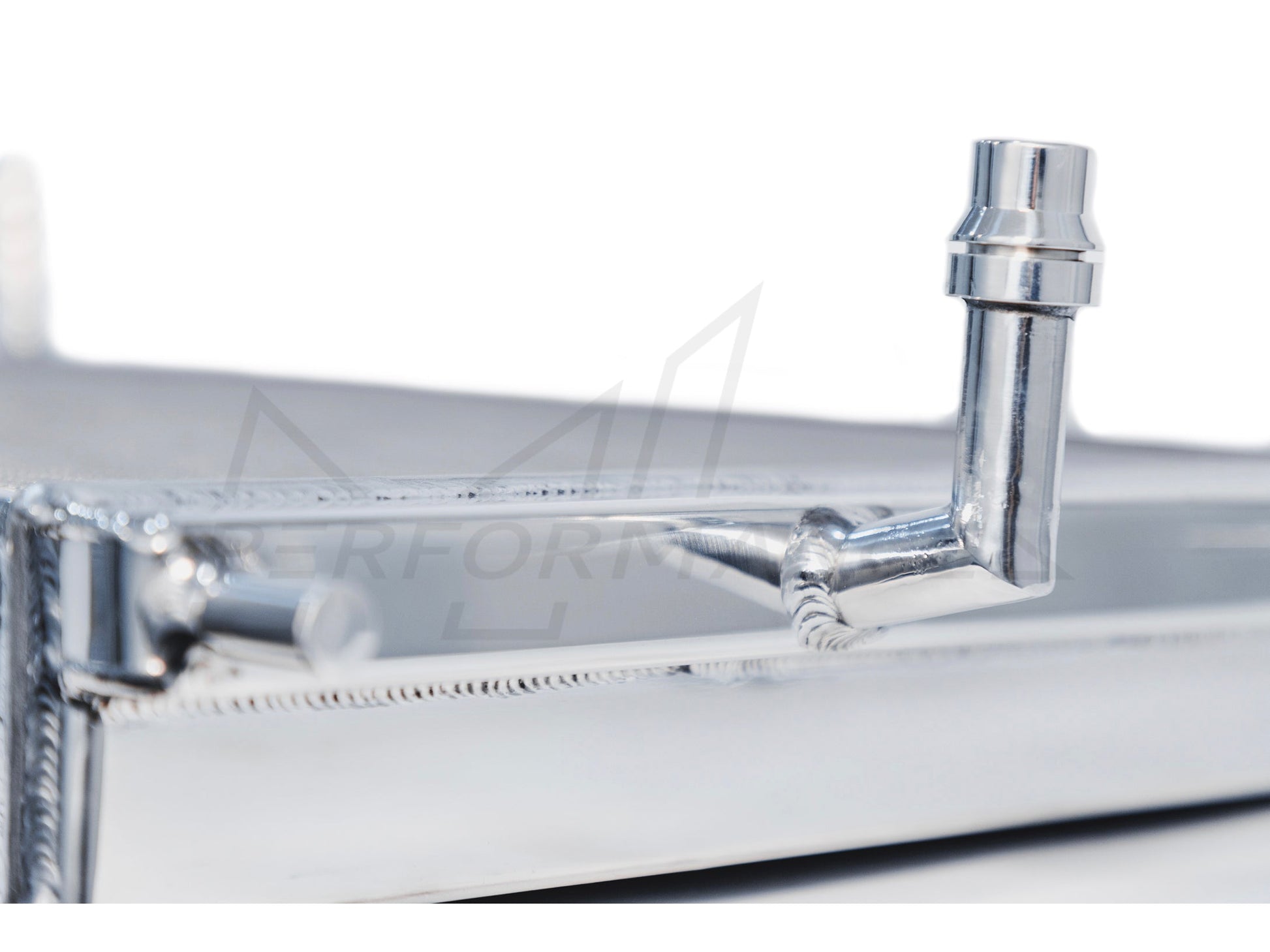

  • CNC machines quick connect fittings
  • Fitting requires ZERO modifications

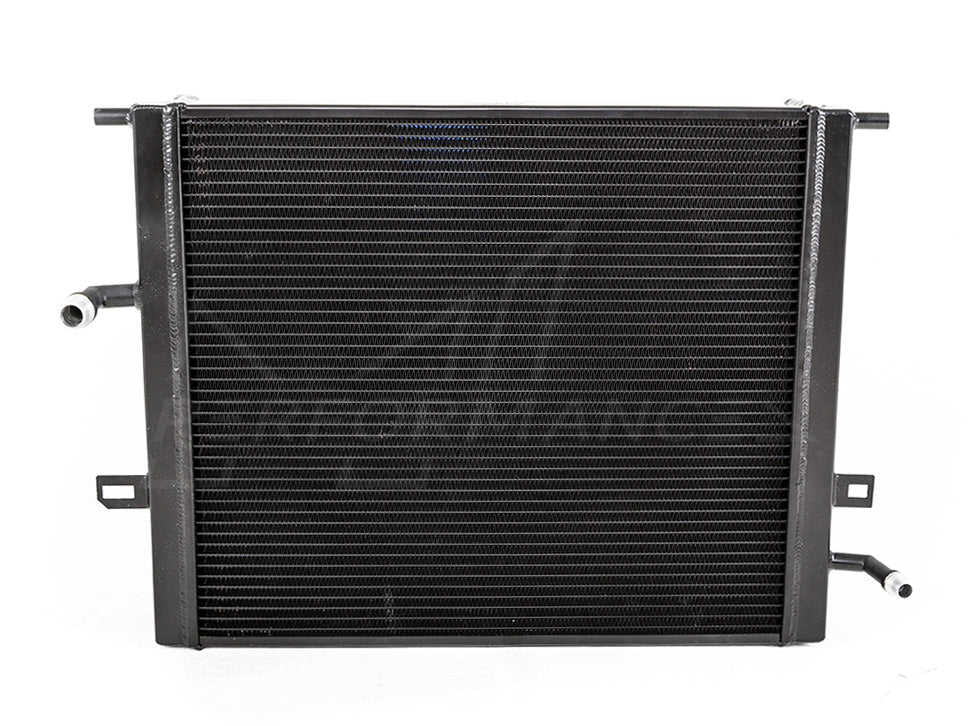

  • Available in Polished Silver or Black



  • 15-18 BMW 120i, 125i, M140i(x) (F20)
  • 15-18 BMW 120i, 125i, M140i(x) (F21)
  • 15-18 BMW 220i, 230i(x), M240i(x) (F22)
  • 15-18 BMW 220i, 230i(x), M240i(x) (F23)
  • 14-18 BMW 320i(x), 330e, 330i(x), 340i(x) (F30)
  • 14-18 BMW 320i(x), 330i(x), 340i(x) (F31)
  • 15-18 BMW 320i(x) GT, 330i(x) GT, 340i(x) GT (F34)
  • 15-18 420i(x), 430i(x), 440i(x) (F32)
  • 15-18 BMW 420i, 430i(x), 440i(x) (F33)
  • 15-18 BMW 420i(x), 430i(x), 440i(x) Gran Coupe (F36)



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



8131    - Polished

8131B  - Black



Manufactured by

CSF Radiators



Warranty

2 Years CSF Radiators Warranty









Vehicle Fitment (North America)
YearsMakeModelSubmodelPart Type
2017–2021 BMW 230i Base Radiators
2017–2021 BMW 230i xDrive Base Radiators
2018 BMW 330e Base Radiators
2017 BMW 330e iPerformance Radiators
2016 BMW 330e Base Radiators
2017–2018 BMW 330i Base Radiators
2017–2018 BMW 330i GT xDrive Base Radiators
2017–2019 BMW 330i xDrive Base Radiators
2016–2018 BMW 340i Base Radiators
2017–2019 BMW 340i GT xDrive Base Radiators
2016–2018 BMW 340i xDrive Base Radiators
2017–2020 BMW 430i Base Radiators
2017–2020 BMW 430i xDrive Base Radiators
2017–2020 BMW 430i xDrive Gran Coupe Base Radiators
2017–2020 BMW 440i Base Radiators
2017–2020 BMW 440i Gran Coupe Base Radiators
2017–2020 BMW 440i xDrive Base Radiators
2017–2020 BMW 440i xDrive Gran Coupe Base Radiators
2017–2021 BMW M240i Base Radiators
2017–2021 BMW M240i xDrive Base Radiators

Fitment data is based on North American vehicle specifications. Verify imported or non-US vehicles before ordering.
