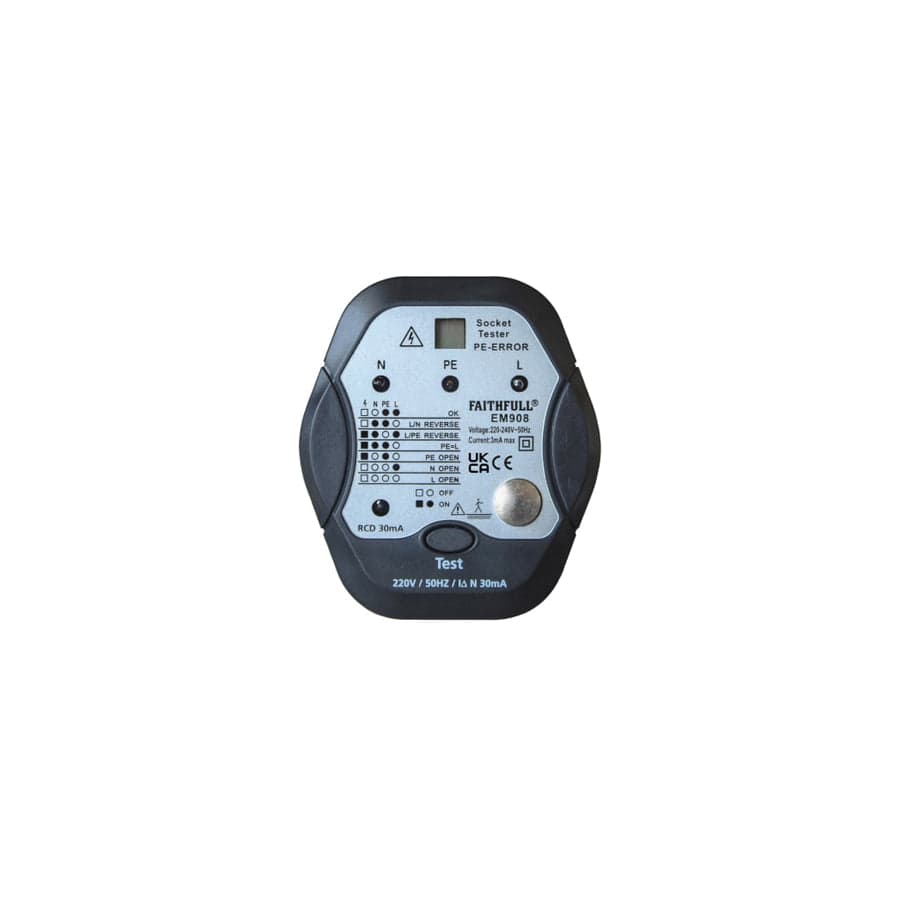

The Faithfull Socket Tester is an essential mains safety tester designed for testing socket wiring and RCDs. It will determine whether a socket is wired correctly or incorrectly. Used in conjunction with the coding table provided, the 5 combined indicators show the true status of the sockets wiring condition. It provides a true ground error indication through the LCD if dangerous contact voltage is present at the protective earth (PE). The use of 3 neon indicators for L-N-PE provides rapid detection of correct/incorrect socket wiring. It is equipped with an additional RCD tester for testing the operation of RCDs with a rating of not more than 30mA. Specification:

Socket Type: UK 240V 3-Pin Nominal Voltage: 220V ±10% Frequency Range: 50~60Hz Measurement Category: CATIII, 300V RCD Test Time: 60~300ms Contact Voltage Threshold: <35 AC against ground depending on coupling to earth RCD Test Current: 30mA ±15% Dimensions: 77 x 67 x 66mm Weight: approx. 70g

Specifications

Feel free to contact us at info@mlperformance.co.uk should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

FAI-FAIDETSOCRCD

Manufactured by

Faithfull (FAI)

EAN

5023969001258
