HEL Jaguar XF I (X250) All Models 2008-2015 Brake Lines Stainless Steel Braided
HEL Jaguar XF I (X250) All Models 2008-2015 Brake Lines Stainless Steel Braided
Questions about this part?
Our technical advisors can confirm fitment for your vehicle. Contact us with your vehicle details.

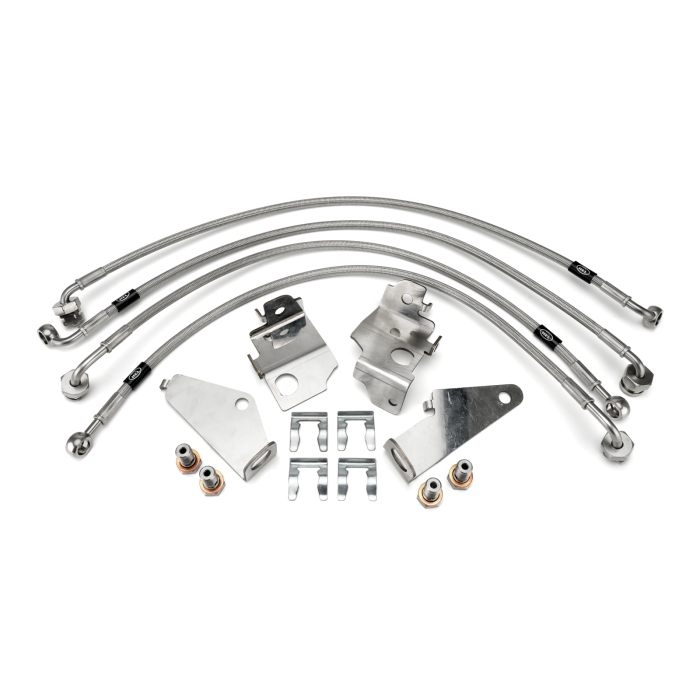

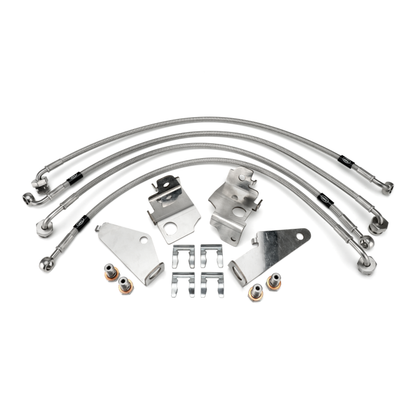

The HEL Performance Jaguar XF I (X250) braided brake line kit has been manufactured in-house, assembled, and machine-crimped directly onto high-quality stainless steel braided hose ensuring an exact match to your standard brake hoses. Each HEL brake line kit arrives complete with every essential component, resulting in a smooth and straightforward installation.
| AN Hose Size | AN3, AN03, -3 |
| Internal Diameter | 3mm, 1/8" |
| External Diameter | 8mm, 5/16" |
| Weight (Per Metre) | 71g, 0.16lbs |
| Inner Material (Core) | PTFE |
| External Material (Overbraid) | Stainless Steel - 303/304 |
| External Material (Outer) | PVC (Transparent or Coloured) |
| Fitting Material (Hose End) | Stainless Steel - 303/304 |
| Minimum Temperature | -70°C -94°F |
| Maximum Temperature | 250°C, 482°F |
| Operating Pressure | 4206 PSI, 290 BAR |
| Burst Pressure | 12618 PSI, 870 BAR |
| Minimum Bend Radius (90°) | 19mm, 0.7" |
| Fluid Compatibility | Petrol, E5, E10, E85, Race Fuel, Methanol, Diesel, Nitrous Oxide, Engine & Hydraulic Oil, Air, CO2, Coolant, Water, Brake & Clutch Fluid (DOT) |
| Brand | HEL Performance |
- Stainless Steel Braided Brake Hoses & Fittings
- Copper Crush Washers*
- Mounting Components*
- Lifetime Warranty
- Installation Leaflet
- Jaguar XF I (X250) All Models (2008-2015)
JAG-4-057
