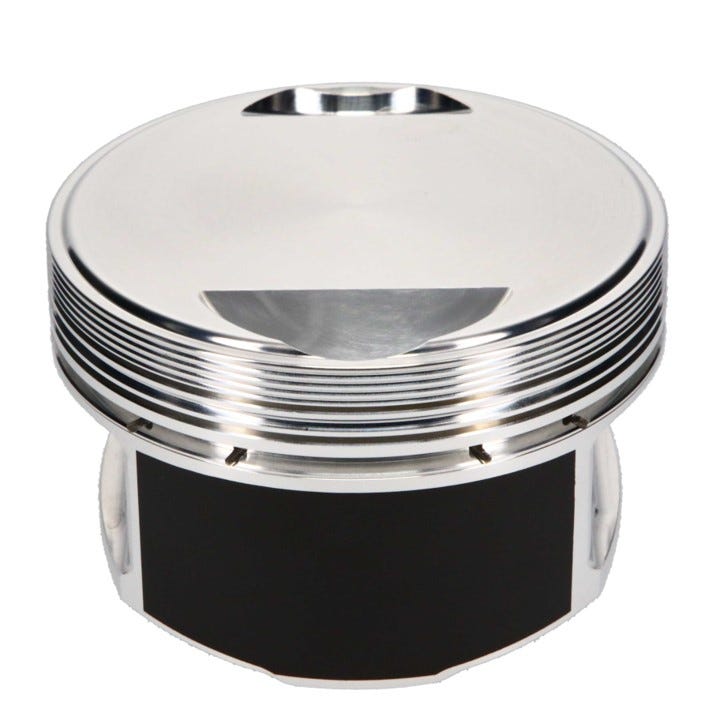

• JE 261664S PISTON PORSCHE 2.7L 10.5 (SINGLE PIECE SET)
1 1
Animated GIF

JE PISTONS

JE 261664S PISTON PORSCHE 2.7L 10.5 (SINGLE PIECE SET)

JE 261664S PISTON PORSCHE 2.7L 10.5 (SINGLE PIECE SET)

£441.00 Inc. VAT
£369.00 £441.00 Inc. VAT
9th Anniversary Badge

Price Match

Price Match Guarantee

If you find a lower price at an eligible US retailer website, we will match it.

Questions about this part?

Our technical advisors can confirm fitment for your vehicle. Contact us with your vehicle details.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details
Bore (in) 3.543
Bore (mm) 90.
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Forging Type Round
Volume (cc) 27.30
Series JE Pistons
Piston Head Type Dome
Pin Diameter (IN) 0.866
Compression Height 1.335
Make PORSCHE
Wrist Pin Style - floating or press fit Floating
Wall Type CHAMFERED
Wall Thickness (IN) 0.150
Ringset Part Number JG1001-3543
Ring Brand ProSeal
Ringset Included Yes
Retainer Thickness 0.063
Retainer Lock Style Wire Lock
Retainer Lock Part Number 866-063-MW
Retainer Diameter (IN) 0.866
Replacement Single Piston 261664S
Piston Pin Inside Diameter 0.566
Piston Pin Material 9310 NICKEL CARBON STEEL ALLOY
Piston Material 2618
Piston Pin Length (IN) 2.500
Piston Avg Wt 419
Pin Offset No
Pin Brand JE Pistons
Pin Part Number 866-2500-15-93C
Pin Included Yes
Pin Diameter (mm) 22.00
Oil Rail Support Included No
Deck Clearance 0.000
Brand JE Pistons
