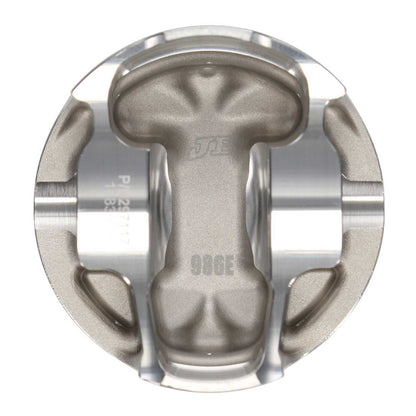

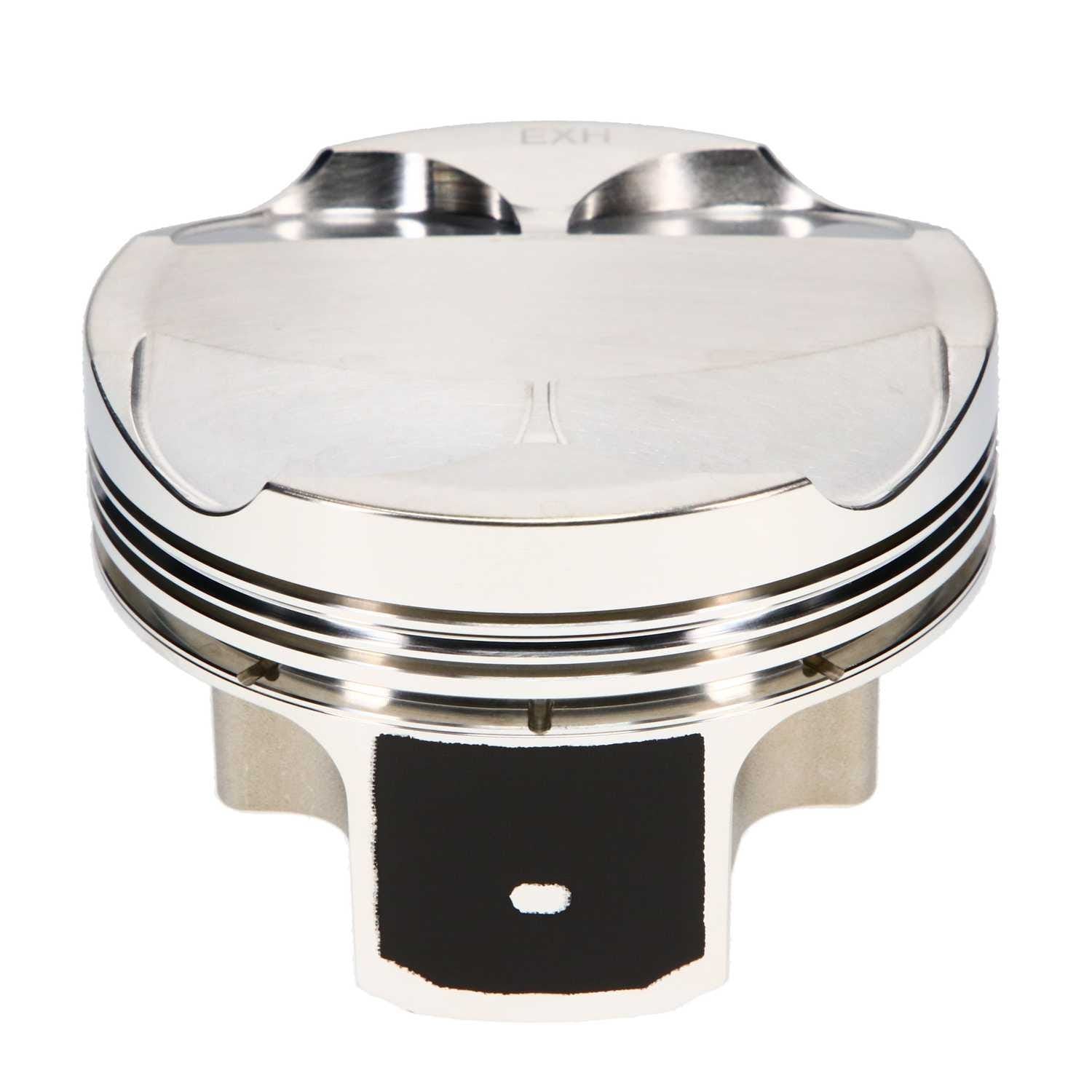

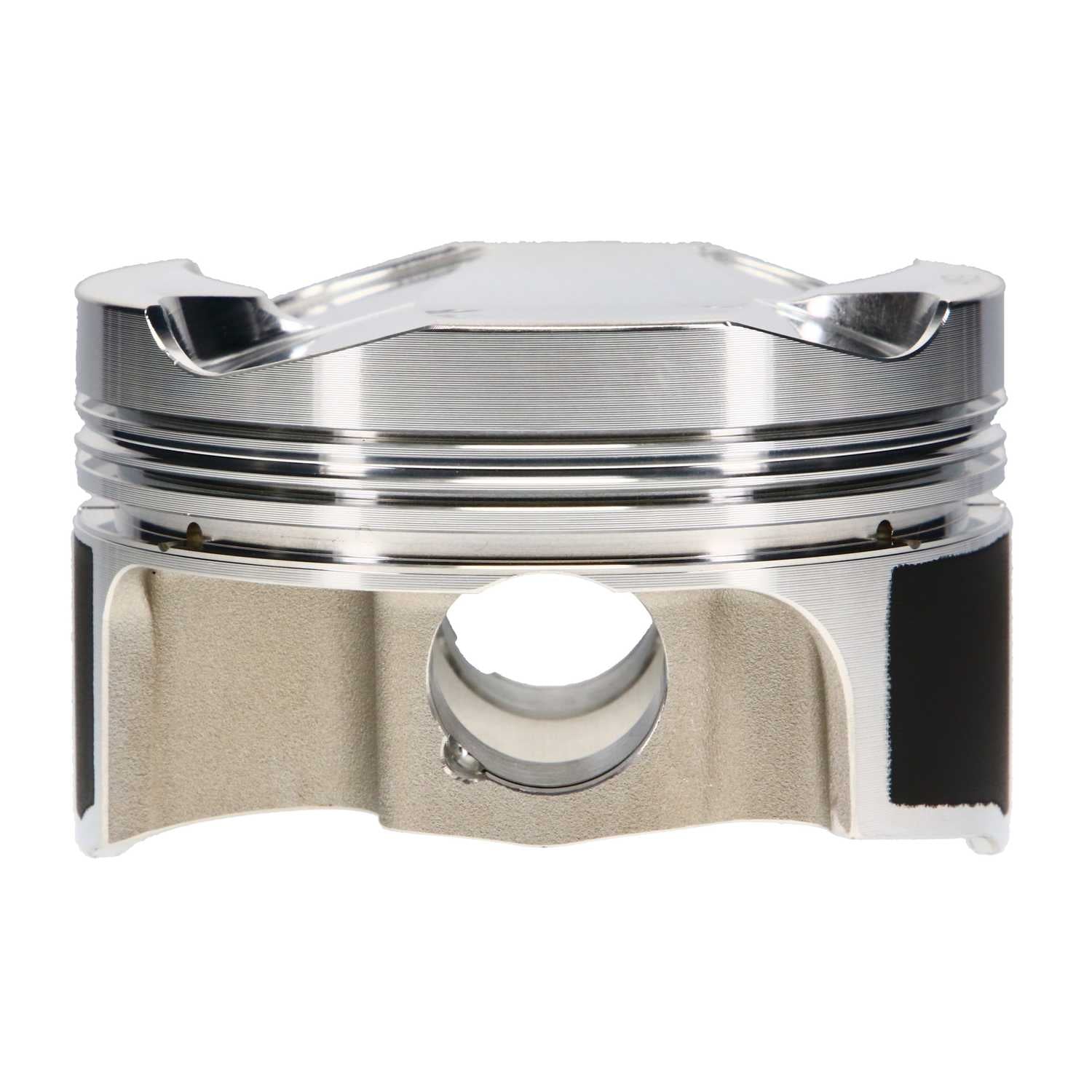

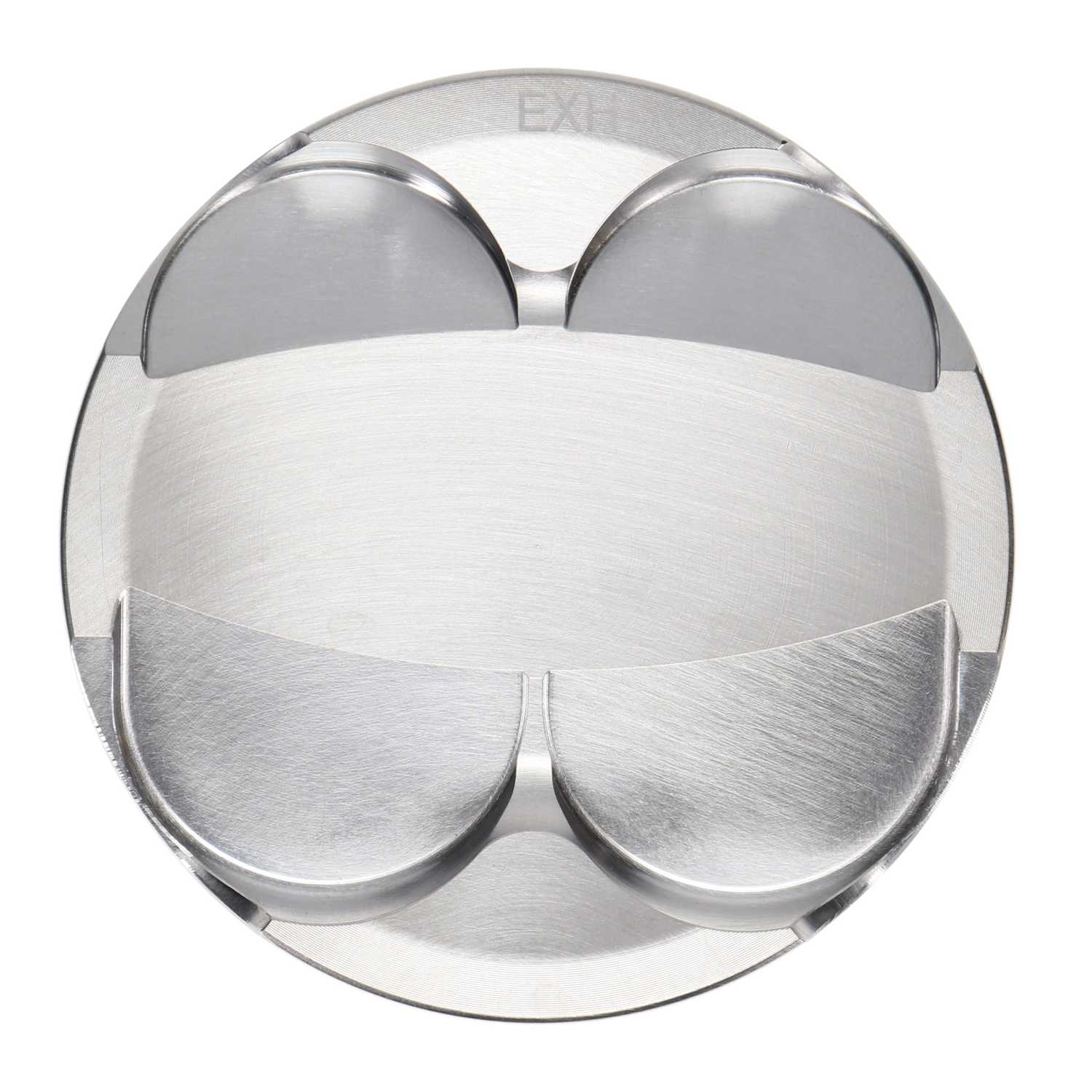

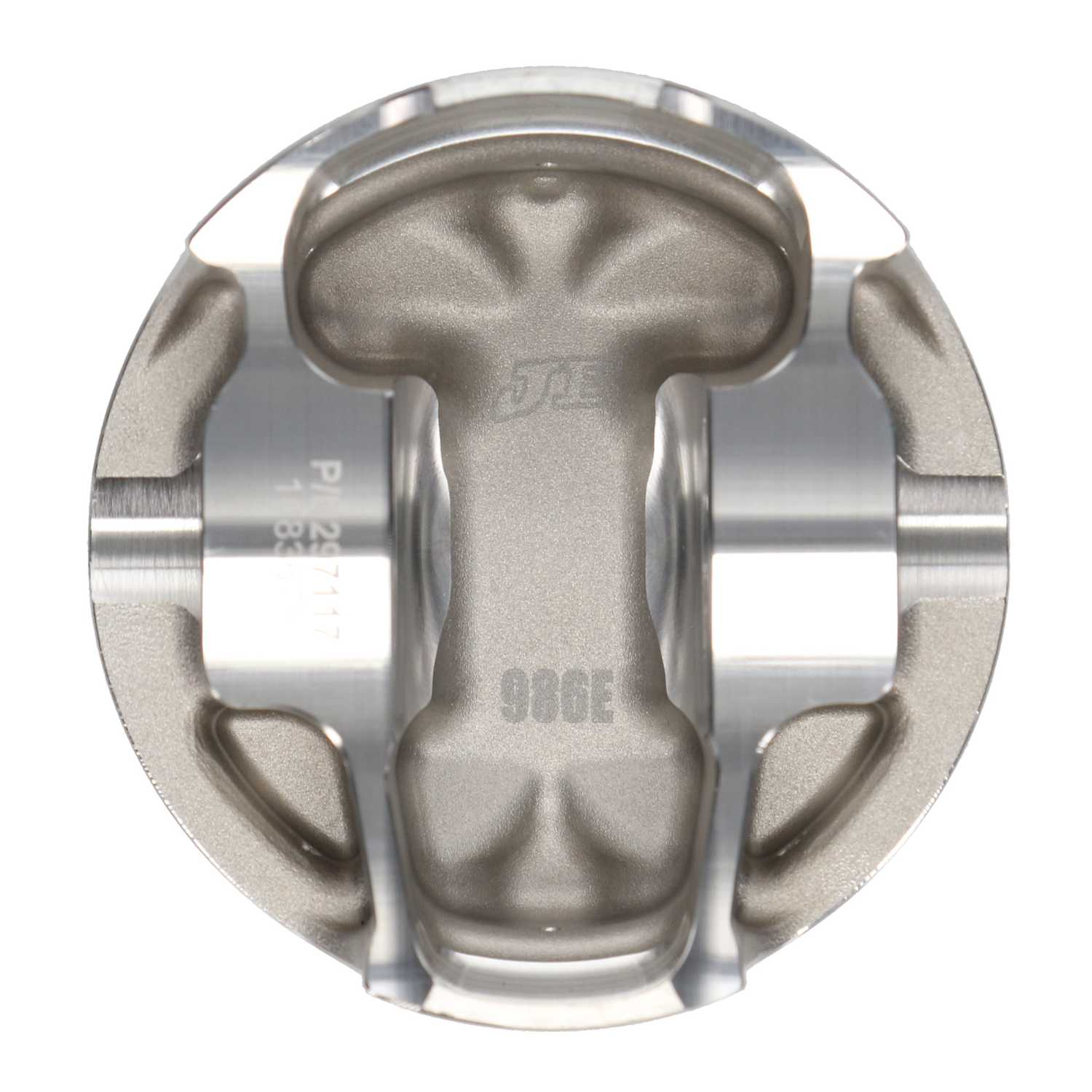

JE 297179S PISTON BMW S50B30US 9:1 (SINGLE PIECE SET)

JE 297179S PISTON BMW S50B30US 9:1 (SINGLE PIECE SET)

£407.00 Inc. VAT
£340.00 £407.00 Inc. VAT
9th Anniversary Badge

Price Match

Price Match Guarantee

If you find a lower price at an eligible US retailer website, we will match it.

Questions about this part?

Our technical advisors can confirm fitment for your vehicle. Contact us with your vehicle details.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

DESCRIPTION:

Piston Set, 2618, Inv Dome/Dish, 3.386 Bore, 1.291 CD, 0.866, Pin Dia, Set of 1
Bore (in) 3.386
Bore (mm) 86.
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Forging Type FSR
Volume (cc) -23.60
Series JE Pistons
Piston Head Type Inv Dome/Dish
Pin Diameter (IN) 0.866
Compression Height 1.291
Make BMW
Wrist Pin Style - floating or press fit Floating
Wall Type CHAMFERED
Wall Thickness (IN) 0.150
Ringset Part Number JG1001-3386
Ring Brand ProSeal
Ringset Included Yes
Retainer Thickness 0.063
Retainer Lock Style Wire Lock
Retainer Lock Part Number 866-063-MW
Retainer Diameter (IN) 0.866
Replacement Single Piston 297179S
Replaced By 288916
Piston Pin Inside Diameter 0.566
Piston Pin Material 5115 LOW CARBON STEEL, CASE HARDENED
Piston Material 2618
Piston Pin Length (IN) 2.250
Piston Avg Wt 297
Pin Offset Yes
Pin Brand JE Pistons
Pin Part Number 866-2250-15-51C
Pin Included Yes
Pin Diameter (mm) 22.00
Oil Rail Support Included No
Deck Clearance 0.030
Brand JE Pistons
