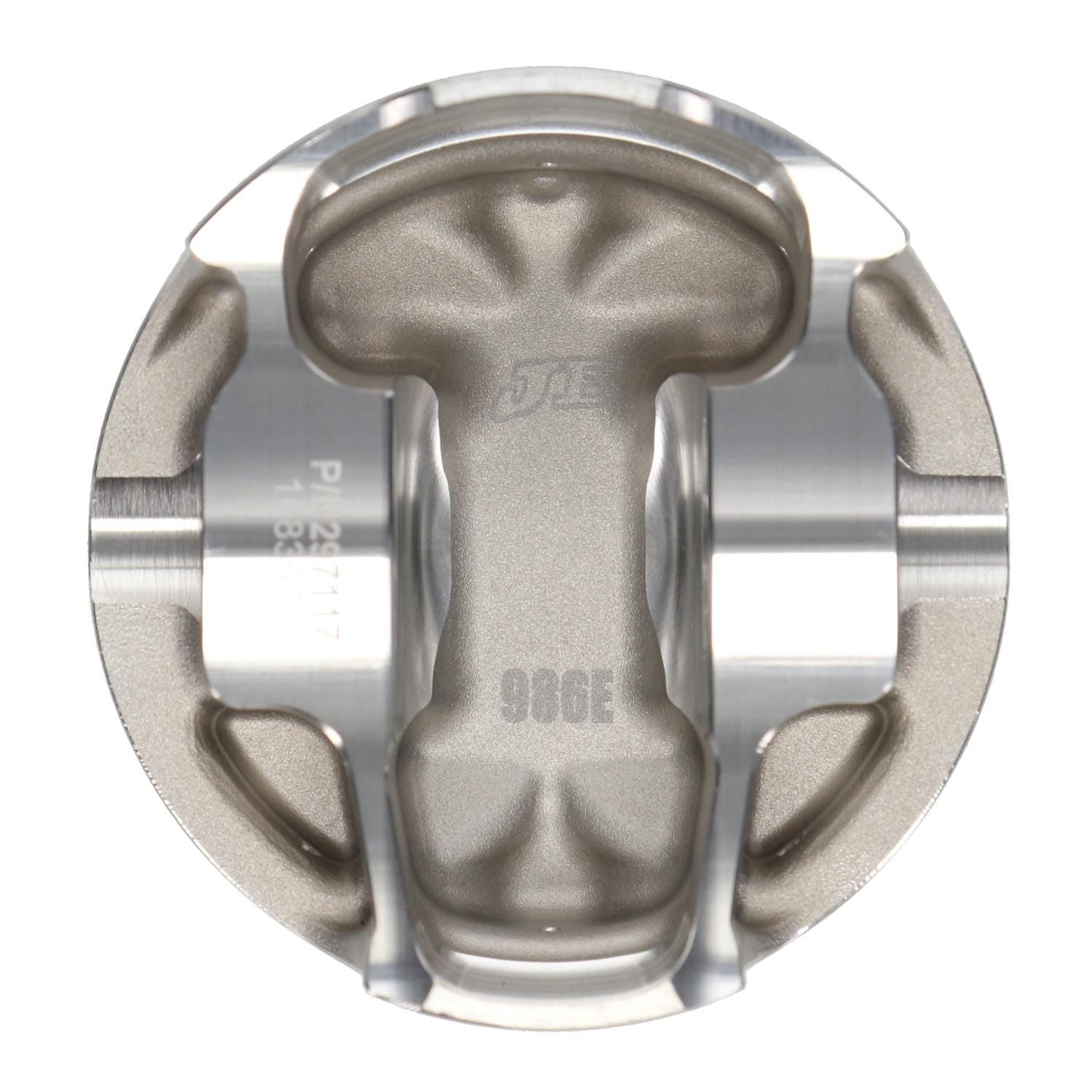

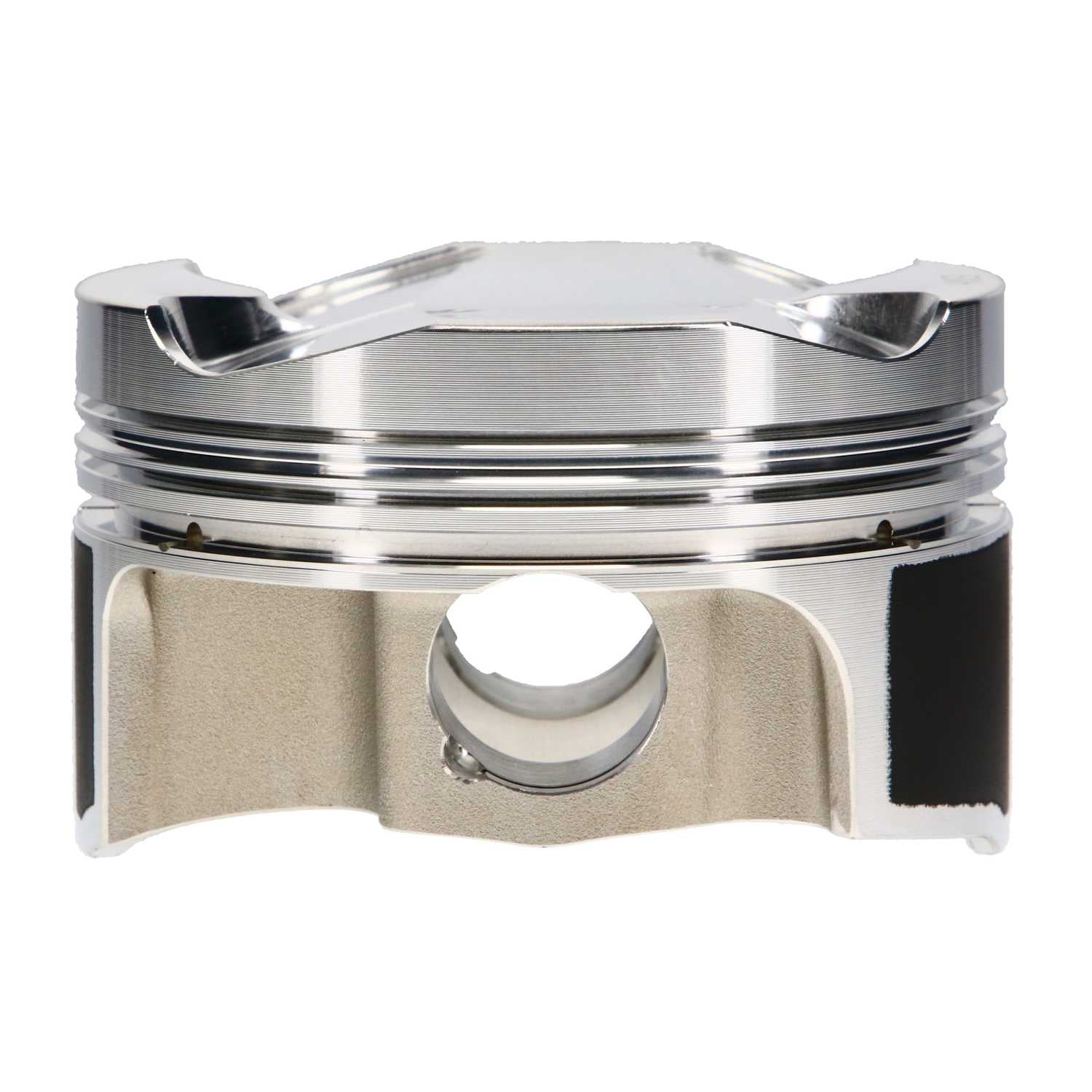

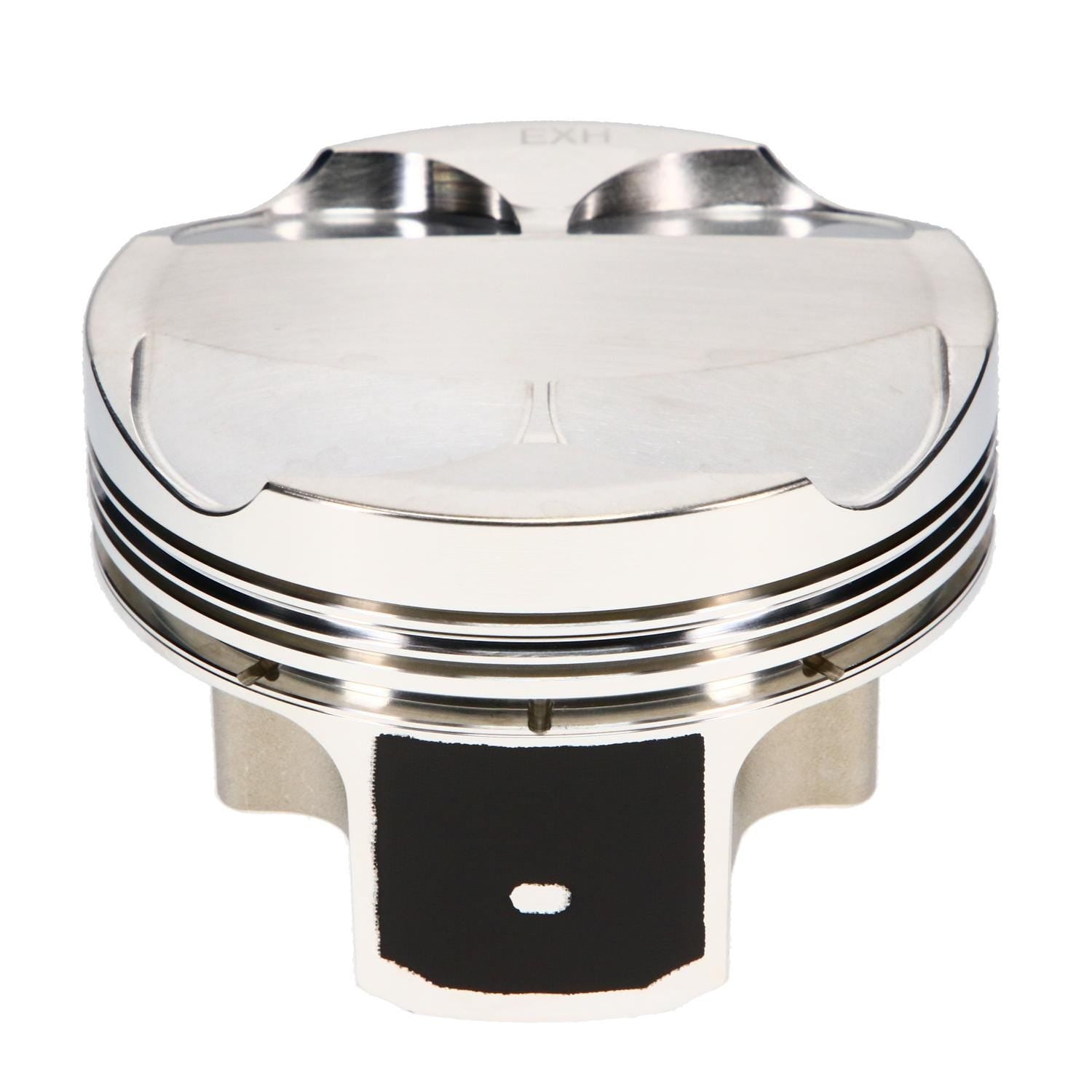

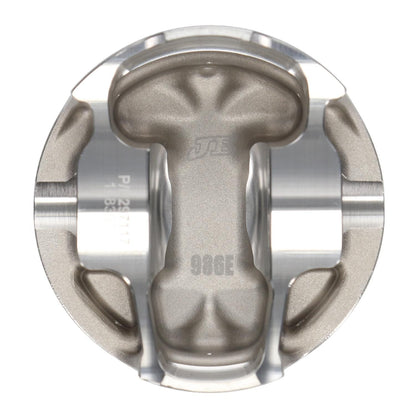

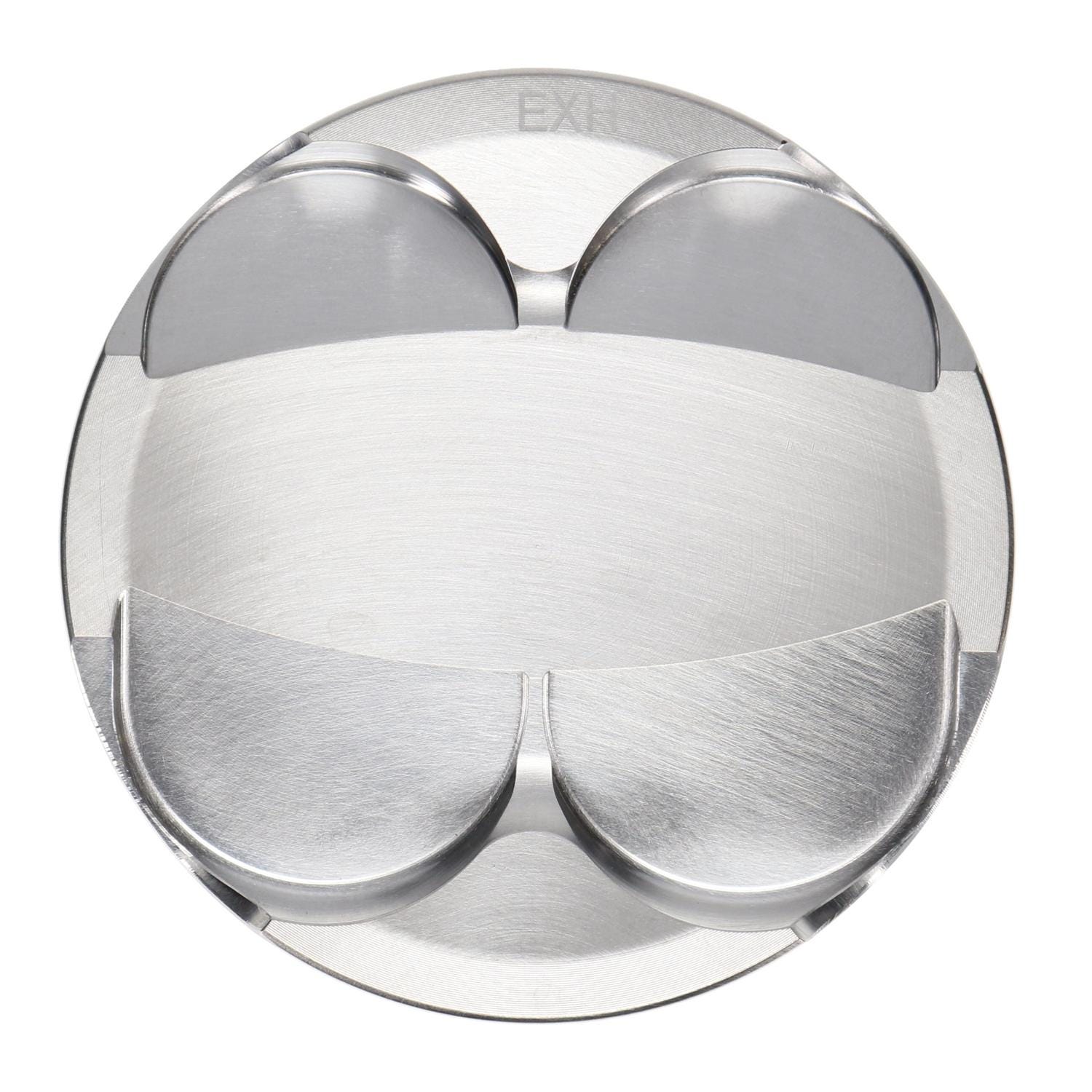

JE 297184 PISTONS KIT BMW S50B30US 12.5 (SET OF 6 PIC) BORE 86,50 OVERSIZE 0,50 STROKE 85,80 CR12.5:1
JE 297184 PISTONS KIT BMW S50B30US 12.5 (SET OF 6 PIC) BORE 86,50 OVERSIZE 0,50 STROKE 85,80 CR12.5:1
Regular price
£1,804.00
Inc. VAT
Regular price
£1,509.00
Sale price
£1,804.00
Inc. VAT
Unit price
per
Questions about this part?
Our technical advisors can confirm fitment for your vehicle. Contact us with your vehicle details.
DESCRIPTION:
Piston Set, 2618, Inv Dome/Dish, 3.4055 Bore, 1.291 CD, 0.866, Pin Dia, Set of 6.
| Bore (in) | 3.406 |
|---|---|
| Bore (mm) | 86.5 |
| Top Compression Ring Thickness | 0.0400 |
| Second Compression Ring Thickness | 0.0480 |
| Oil Ring Thickness | 0.111 |
| Forging Type | FSR |
| Volume (cc) | -5.00 |
| Series | JE Pistons |
| Piston Head Type | Inv Dome/Dish |
| Pin Diameter (IN) | 0.866 |
| Compression Height | 1.291 |
| Make | BMW |
| Wrist Pin Style - floating or press fit | Floating |
| Wall Type | CHAMFERED |
| Wall Thickness (IN) | 0.150 |
| Ringset Part Number | JG1001-3405 |
| Ring Brand | ProSeal |
| Ringset Included | Yes |
| Retainer Thickness | 0.063 |
| Retainer Lock Style | Wire Lock |
| Retainer Lock Part Number | 866-063-MW |
| Retainer Diameter (IN) | 0.866 |
| Replacement Single Piston | 297184S |
| Replaced By | 288923 |
| Piston Pin Inside Diameter | 0.566 |
| Piston Pin Material | 5115 LOW CARBON STEEL, CASE HARDENED |
| Piston Material | 2618 |
| Piston Pin Length (IN) | 2.250 |
| Piston Avg Wt | 305 |
| Pin Offset | Yes |
| Pin Brand | JE Pistons |
| Pin Part Number | 866-2250-15-51C |
| Pin Included | Yes |
| Pin Diameter (mm) | 22.00 |
| Oil Rail Support Included | No |
| Deck Clearance | 0.030 |
| Brand | JE Pistons |
- OPEL REKORD D Estate 1.7 S 1972 - 1975
- BMW 8 (E31) 840 Ci 1996 - 1999
- BMW 8 (E31) 850 Ci 1994 - 1999
- BMW 3 Compact (E36) 316 g 1994 - 2000
- BMW 3 Compact (E36) 316 i 1994 - 2000
- BMW 3 Compact (E36) 316 i 1998 - 2000
- BMW 3 Compact (E36) 318 tds 1994 - 2001
- BMW 3 Compact (E36) 318 ti 1994 - 1995
- BMW 3 Compact (E36) 318 ti 1995 - 2000
- BMW 3 Compact (E36) 323 ti 1997 - 2000
- BMW 3 (E36) 318 tds 1995 - 1998
- BMW 3 (E36) 323 i 2.5 1995 - 1998
- BMW 3 (E36) M3 3.0 1994 - 1995
- BMW 5 Touring (E34) 518 g 1995 - 1996
- BMW 5 Touring (E34) M5 1994 - 1997
- BMW 7 (E38) 725 tds 1996 - 2001
- BMW 7 (E38) 728 i, iL 1995 - 2001
- BMW 7 (E38) 730 d 1998 - 2000
- BMW 7 (E38) 730 d 2000 - 2001
- BMW 7 (E38) 730 i, iL 1994 - 2001
- BMW 7 (E38) 730 i, iL 1994 - 2001
- BMW 7 (E38) 735 i, iL 1996 - 1998
- BMW 7 (E38) 735 i, iL 1998 - 2001
- BMW 7 (E38) 740 d 1999 - 2001
- BMW 7 (E38) 740 i, iL 1994 - 2001
- BMW 7 (E38) 740 i, iL 1996 - 2001
- BMW 7 (E38) 750 i, iL 1994 - 2001
- BMW 3 Touring (E36) 316 i 1996 - 1999
- BMW 3 Touring (E36) 318 i 1995 - 1999
- BMW 3 Touring (E36) 318 tds 1995 - 1999
- BMW 5 (E39) 520 d 2000 - 2003
- BMW 5 (E39) 520 i 1996 - 2003
- BMW 5 (E39) 520 i 1999 - 2003
- BMW 5 (E39) 520 i 2000 - 2003
- BMW 5 (E39) 523 i 1995 - 2000
- BMW 5 (E39) 525 d 2000 - 2003
- BMW 5 (E39) 525 i 2000 - 2003
- BMW 5 (E39) 525 td 1997 - 2003
- BMW 5 (E39) 525 tds 1996 - 2003
- BMW 5 (E39) 528 i 1995 - 2000
- BMW 5 (E39) 530 d 1998 - 2000
- BMW 5 (E39) 530 d 1998 - 2003
- BMW 5 (E39) 530 i 2000 - 2003
- BMW 5 (E39) 535 i 1996 - 1999
- BMW 5 (E39) 535 i 1999 - 2003
- BMW 5 (E39) 540 i 1996 - 2003
- BMW 5 (E39) M5 1998 - 2003
- BMW 5 Touring (E39) 520 d 2000 - 2003
- BMW Z3 Coupe (E36) 2.8 i 1997 - 2000
- BMW Z3 Coupe (E36) 3.0 i 2000 - 2003
- BMW Z3 Roadster (E36) 1.8 i 1995 - 1998
- BMW Z3 Roadster (E36) 1.9 i 1995 - 1999
- BMW Z3 Roadster (E36) 1.9 i 1998 - 2003
- BMW Z3 Roadster (E36) 1.9 i 1999 - 2003
- BMW Z3 Roadster (E36) 2.0 i 1999 - 2003
- BMW Z3 Roadster (E36) 2.2 i 2000 - 2003
- BMW Z3 Roadster (E36) 2.8 i 1997 - 2000
- BMW Z3 Roadster (E36) 3.0 i 2000 - 2003
- BMW Z3 Roadster (E36) M 3.2 1997 - 2001
- BMW Z3 Roadster (E36) M 3.2 2001 - 2003
- BMW Z8 Roadster (E52) 4.9 2000 - 2003
- BMW X5 (E53) 3.0 d 2001 - 2003
- BMW X5 (E53) 3.0 d 2003 - 2006
- BMW X5 (E53) 3.0 i 2000 - 2006
- BMW X5 (E53) 4.4 i 2000 - 2003
- BMW X5 (E53) 4.4 i 2003 - 2006
- BMW X5 (E53) 4.6 is 2002 - 2003
- BMW X5 (E53) 4.8 is 2004 - 2006
- BMW 7 (E65, E66, E67) 730 d 2002 - 2008
- BMW 7 (E65, E66, E67) 730 d 2002 - 2005
- BMW 7 (E65, E66, E67) 730 i, Li 2003 - 2008
- BMW 7 (E65, E66, E67) 730 i, Li 2005 - 2008
- BMW 7 (E65, E66, E67) 730 Ld 2005 - 2008
- BMW 7 (E65, E66, E67) 735 i, Li 2001 - 2005
- BMW 7 (E65, E66, E67) 740 d 2002 - 2005
- BMW 7 (E65, E66, E67) 740 i, Li 2005 - 2008
- BMW 7 (E65, E66, E67) 745 d 2005 - 2008
- BMW 7 (E65, E66, E67) 745 d 2005 - 2005
- BMW 7 (E65, E66, E67) 745 i, Li 2001 - 2008
- BMW 7 (E65, E66, E67) 750 i, Li 2005 - 2008
- BMW 7 (E65, E66, E67) 760 i, Li 2003 - 2008
- BMW 5 (E60) 525 d 2004 - 2010
- BMW 5 (E60) 525 d 2004 - 2010
- BMW 5 (E60) 525 d 2007 - 2010
- BMW 5 (E60) 525 d xDrive 2007 - 2009
- BMW 5 (E60) 525 i 2003 - 2010
- BMW 5 (E60) 525 i 2004 - 2009
- BMW 5 (E60) 525 i 2009 - 2010
- BMW 5 (E60) 525 i xDrive 2008 - 2010
- BMW 5 (E60) 525 xd 2006 - 2007
- BMW 5 (E60) 525 xi 2005 - 2010
- BMW 5 (E60) 525 xi 2007 - 2010
- BMW 5 (E60) 530 d 2002 - 2005
- BMW 5 (E60) 530 d 2005 - 2007
- BMW 5 (E60) 530 d 2007 - 2009
- BMW 5 (E60) 530 d xDrive 2007 - 2009
- BMW 5 (E60) 530 i 2001 - 2005
- BMW 5 (E60) 530 i 2004 - 2007
- BMW 5 (E60) 530 i 2006 - 2009
- BMW 5 (E60) 530 i 2006 - 2009
- BMW 5 (E60) 530 i xDrive 2008 - 2009
- BMW 5 (E60) 530 xd 2005 - 2007
- BMW 5 (E60) 530 xd 2007 - 2007
- BMW 5 (E60) 530 xi 2004 - 2007
- BMW 5 (E60) 530 xi 2007 - 2008
- BMW 5 (E60) 535 d 2004 - 2010
- BMW 5 (E60) 535 d 2007 - 2010
- BMW 5 (E60) 540 i 2005 - 2007
- BMW 5 (E60) M5 2004 - 2010
- BMW 5 Touring (E61) 520 d 2005 - 2008
- BMW 5 Touring (E61) 520 d 2007 - 2010
- BMW 5 Touring (E61) 520 i 2007 - 2010
- BMW 5 Touring (E61) 520 i 2007 - 2010
- BMW 5 Touring (E61) 523 i 2004 - 2007
- BMW 5 Touring (E61) 523 i 2007 - 2010
- BMW 5 Touring (E61) 523 i 2007 - 2010
- BMW 5 Touring (E61) 525 d 2004 - 2007
- BMW 5 Touring (E61) 525 d 2004 - 2007
- BMW 5 Touring (E61) 525 d 2007 - 2010
- BMW 5 Touring (E61) 525 d xDrive 2008 - 2010
- BMW 5 Touring (E61) 525 i 2004 - 2010
- BMW 5 Touring (E61) 525 i 2005 - 2010
- BMW 5 Touring (E61) 525 i 2007 - 2010
- BMW 5 Touring (E61) 525 i xDrive 2008 - 2010
- BMW 5 Touring (E61) 525 xd 2007 - 2008
- BMW 5 Touring (E61) 525 xi 2005 - 2010
- BMW 5 Touring (E61) 525 xi 2007 - 2010
- BMW 5 Touring (E61) 530 d 2004 - 2005
- BMW 5 Touring (E61) 530 d 2005 - 2007
- BMW 5 Touring (E61) 530 d 2007 - 2010
- BMW 5 Touring (E61) 530 d xDrive 2007 - 2010
- BMW 5 Touring (E61) 530 i 2004 - 2007
- BMW 5 Touring (E61) 530 i 2007 - 2010
- BMW 5 Touring (E61) 530 i 2006 - 2010
- BMW 5 Touring (E61) 530 i xDrive 2008 - 2010
- BMW 5 Touring (E61) 530 xd 2005 - 2007
- BMW 5 Touring (E61) 530 xd 2007 - 2007
- BMW 5 Touring (E61) 530 xi 2005 - 2007
- BMW 5 Touring (E61) 530 xi 2007 - 2010
- BMW 5 Touring (E61) 535 d 2004 - 2010
- BMW 5 Touring (E61) 535 d 2007 - 2010
- BMW 5 Touring (E61) 545 i 2004 - 2010
- BMW 5 Touring (E61) 550 i 2005 - 2010
- BMW 5 Touring (E61) M5 2007 - 2010
- BMW X3 (E83) 2.0 d 2003 - 2007
- BMW X3 (E83) 2.0 d 2007 - 2009
- BMW X3 (E83) 2.0 i 2005 - 2008
- BMW X3 (E83) 2.5 i 2004 - 2006
- BMW X3 (E83) 2.5 si 2006 - 2008
- BMW X3 (E83) 3.0 d 2004 - 2005
- BMW X3 (E83) 3.0 d 2005 - 2008
- BMW X3 (E83) 3.0 i xDrive 2004 - 2006
- BMW X3 (E83) 3.0 sd 2006 - 2008
- BMW X3 (E83) 3.0 si 2006 - 2008
- BMW X3 (E83) xDrive 18 d 2008 - 2011
- BMW X3 (E83) xDrive 20 d 2007 - 2010
- BMW X3 (E83) xDrive 20 d 2007 - 2010
- BMW X3 (E83) xDrive 20 i 2008 - 2011
- BMW X3 (E83) xDrive 25 i 2008 - 2010
- BMW X3 (E83) xDrive 30 d 2008 - 2010
- BMW X3 (E83) xDrive 30 d 2008 - 2010
- BMW X3 (E83) xDrive 30 i 2008 - 2011
- BMW X3 (E83) xDrive 35 d 2008 - 2011
- BMW 6 (E63) 630 i 2004 - 2007
- BMW 6 (E63) 630 i 2007 - 2010
- BMW 6 (E63) 630 i 2007 - 2010
- BMW 6 (E63) 635 d 2007 - 2010
- BMW 6 (E63) 645 Ci 2004 - 2005
- BMW 6 (E63) 650 i 2005 - 2010
- BMW 6 (E63) M 2005 - 2010
- BMW 6 Convertible (E64) 630 i 2004 - 2007
- BMW 6 Convertible (E64) 630 i 2007 - 2010
- BMW 6 Convertible (E64) 630 i 2007 - 2010
- BMW 6 Convertible (E64) 635 d 2007 - 2010
- BMW 6 Convertible (E64) 645 Ci 2004 - 2005
- BMW 6 Convertible (E64) 650 i 2005 - 2010
- BMW 6 Convertible (E64) M 2006 - 2010
- BMW X5 (E70) 3.0 d 2007 - 2008
- BMW X5 (E70) 3.0 sd 2007 - 2008
- BMW X5 (E70) 3.0 si 2006 - 2008
- BMW X5 (E70) 4.8 i xDrive 2007 - 2008
- BMW X5 (E70) M 2009 - 2013
- BMW 1 Coupe (E82) 118 d 2009 - 2013
- BMW 1 Coupe (E82) 118 d 2009 - 2013
- BMW 1 Coupe (E82) 120 d 2007 - 2013
- BMW 1 Coupe (E82) 120 d 2007 - 2013
- BMW 1 Coupe (E82) 120 i 2007 - 2013
- BMW 1 Coupe (E82) 123 d 2007 - 2013
- BMW 1 Coupe (E82) 125 i 2007 - 2013
- BMW 1 Coupe (E82) 135 i 2007 - 2013
- BMW 1 Coupe (E82) 135 i 2007 - 2013
- BMW 1 Coupe (E82) M 2011 - 2012
- BMW X6 (E71, E72) ActiveHybrid 2009 - 2011
- BMW X6 (E71, E72) ActiveHybrid xDrive 2009 - 2011
- BMW X6 (E71, E72) M 2008 - 2014
- BMW X6 (E71, E72) M 50 d 2011 - 2014
- BMW X6 (E71, E72) xDrive 30 d 2010 - 2014
- BMW X6 (E71, E72) xDrive 30 d 2010 - 2014
- BMW X6 (E71, E72) xDrive 30 d 2008 - 2010
- BMW X6 (E71, E72) xDrive 35 d 2008 - 2010
- BMW X6 (E71, E72) xDrive 35 i 2007 - 2014
- BMW X6 (E71, E72) xDrive 40 d 2009 - 2014
- BMW X6 (E71, E72) xDrive 50 i 2007 - 2014
- BMW 5 (F10) 518 d 2013 - 2014
- BMW 5 (F10) 518 d 2013 - 2016
- BMW 5 (F10) 520 d 2010 - 2014
- BMW 5 (F10) 520 d 2013 - 2016
- BMW 5 (F10) 520 d 2013 - 2014
- BMW 5 (F10) 520 d 2013 - 2016
- BMW 5 (F10) 520 d xDrive 2013 - 2014
- BMW 5 (F10) 520 d xDrive 2013 - 2016
- BMW 5 (F10) 520 d xDrive 2013 - 2014
- BMW 5 (F10) 520 d xDrive 2013 - 2016
- BMW 5 (F10) 520 i 2010 - 2016
- BMW 5 (F10) 520 i 2010 - 2016
- BMW 5 (F10) 523 i 2009 - 2011
- BMW 5 (F10) 523 i 2009 - 2011
- BMW 5 (F10) 525 d 2011 - 2016
- BMW 5 (F10) 525 d 2011 - 2016
- BMW 5 (F10) 525 d 2010 - 2011
- BMW 5 (F10) 525 d xDrive 2011 - 2016
- BMW 5 (F10) 525 d xDrive 2011 - 2016
- BMW 5 (F10) 528 i 2010 - 2016
- BMW 5 (F10) 528 i 2009 - 2011
- BMW 5 (F10) 528 i xDrive 2010 - 2016
- BMW 5 (F10) 530 d 2011 - 2016
- BMW 5 (F10) 530 d 2009 - 2011
- BMW 5 (F10) 530 d 2010 - 2016
- BMW 5 (F10) 530 d xDrive 2011 - 2016
- BMW 5 (F10) 530 d xDrive 2010 - 2016
- BMW 5 (F10) 530 i 2011 - 2013
- BMW 5 (F10) 530 i 2009 - 2013
- BMW 5 (F10) 535 d 2011 - 2016
- BMW 5 (F10) 535 d 2010 - 2011
- BMW 5 (F10) 535 d xDrive 2011 - 2016
- BMW 5 (F10) 535 i 2009 - 2016
- BMW 5 (F10) 535 i 2013 - 2016
- BMW 5 (F10) 535 i xDrive 2010 - 2016
- BMW 5 (F10) 535 i xDrive 2013 - 2016
- BMW 5 (F10) 550 i 2009 - 2013
- BMW 5 (F10) 550 i 2012 - 2016
- BMW 5 (F10) 550 i xDrive 2010 - 2013
- BMW 5 (F10) 550 i xDrive 2013 - 2016
- BMW 5 (F10) ActiveHybrid 2010 - 2016
- BMW 5 (F10) ActiveHybrid 2010 - 2016
- BMW 5 (F10) M 550 d xDrive 2011 - 2016
- BMW 5 (F10) M5 2010 - 2016
- BMW 5 (F10) M5 Competition 2013 - 2016
- BMW 5 (F10) M5 Edition 30 2014 - 2016
Feel free to contact us at info@mlperformance.co.uk should you wish to double check!
To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
JE-PISTONS-297184
Manufactured by
JE PISTONS
Price Match Request
We are never beaten on price. Let us know where you found a lower rate!
If approved, you will receive a customised invoice with the matched price within 24 hours.
-
Price Match Guarantee
We are committed to giving you the best price. if you find a lower price on the same item at an eligible US retailer website, we will match it.
-
Fast US Delivery
For in-stock item, get guaranteed fast US delivery. Same day dispatch available on in-stock items if your order is placed before 1pm ET.
-
Worldwide Shipping
We ship worldwide via DHL International, simply enter your full address at checkout to see the shipping option(s) and quote(s). Same day dispatch available if your order is placed before 1pm ET on all in stock items!
- Choosing a selection results in a full page refresh.
- Opens in a new window.
