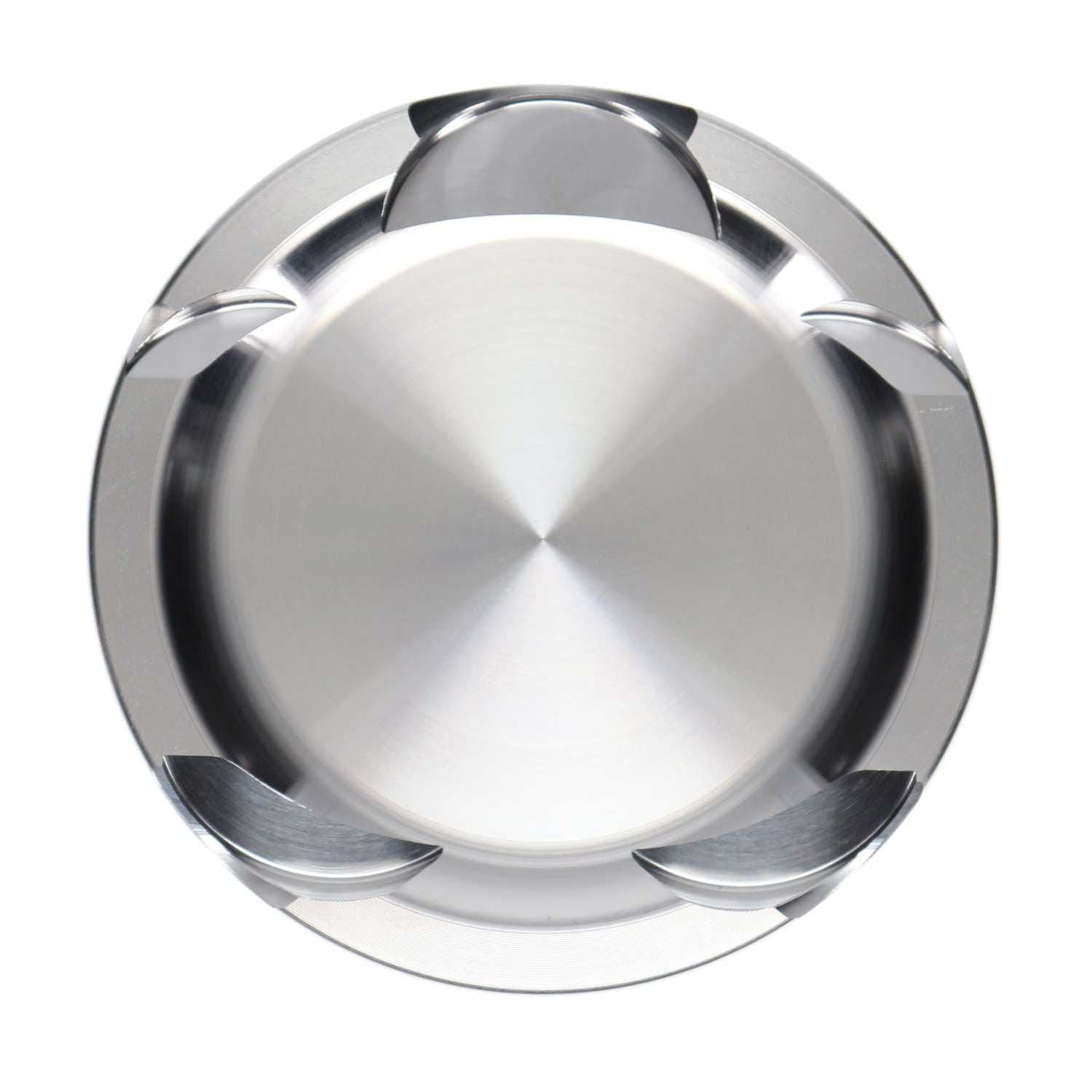

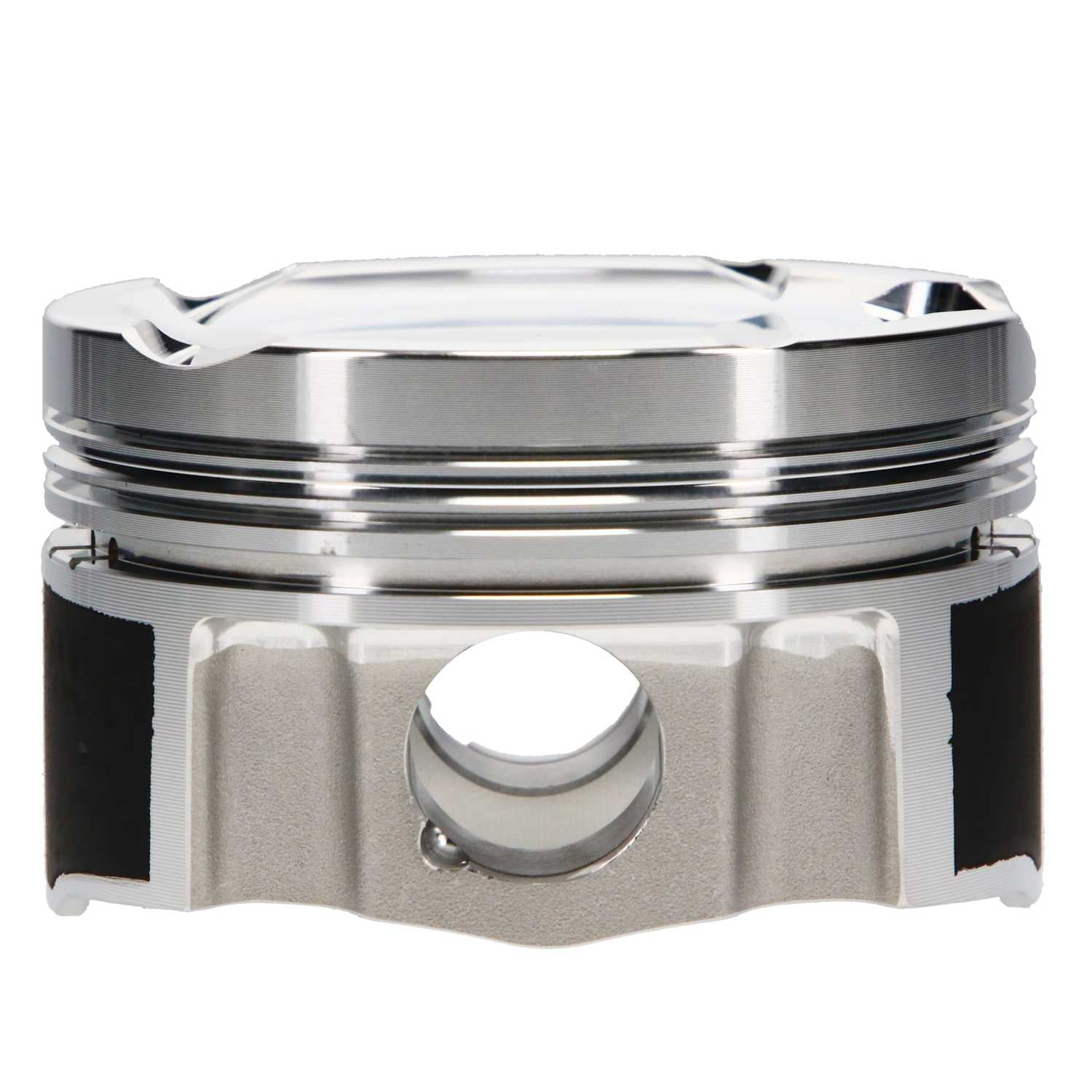

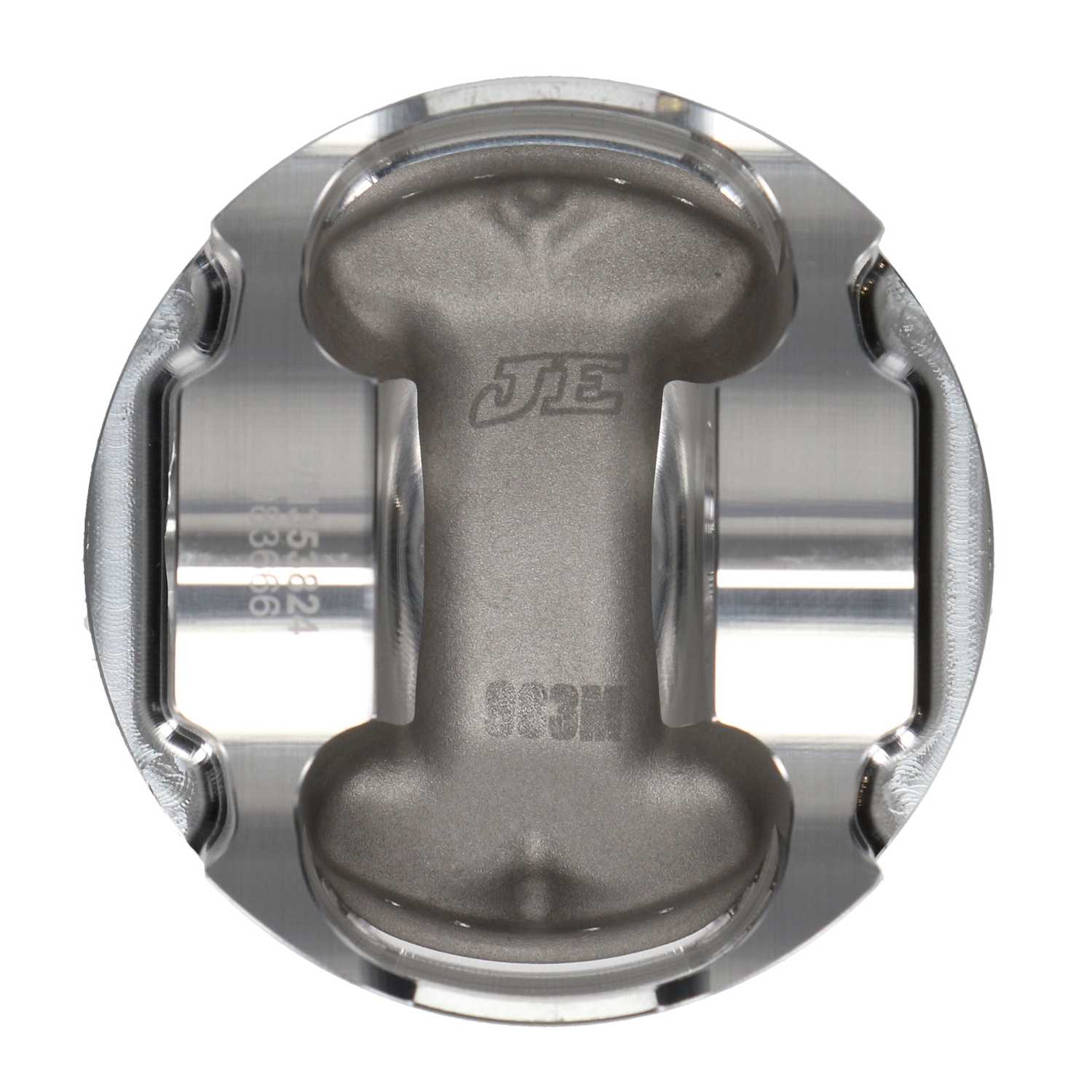

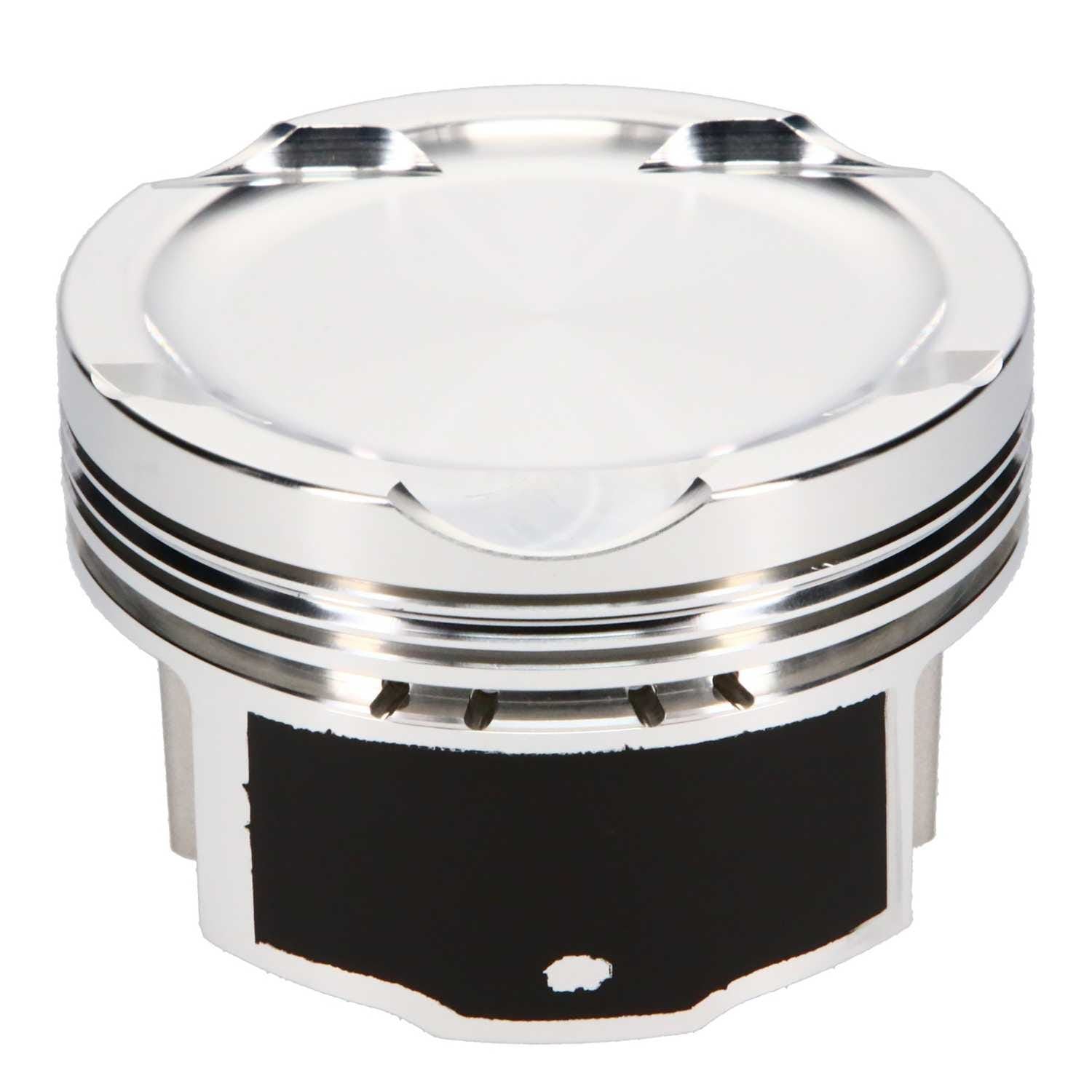

JE 353826 PISTONS KIT VW 1.8T 20V (SET OF 4 PIC) BORE 82,50 OVERSIZE 1,50 STROKE 86,40 CR8.5:1

JE 353826 PISTONS KIT VW 1.8T 20V (SET OF 4 PIC) BORE 82,50 OVERSIZE 1,50 STROKE 86,40 CR8.5:1

£1,225.00 Inc. VAT
£1,025.00 £1,225.00 Inc. VAT
9th Anniversary Badge

Price Match

Price Match Guarantee

If you find a lower price at an eligible US retailer website, we will match it.

Questions about this part?

Our technical advisors can confirm fitment for your vehicle. Contact us with your vehicle details.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

DESCRIPTION:

Piston Set, 2618, Inv Dome/Dish, 3.248 Bore, 1.286 CD, 0.787, Pin Dia, Set of 4.
Car | 2004 | Audi | TT Quattro
Car | 2000 | Audi | TT Quattro
Car | 2005 | Audi | TT Quattro
Car | 2006 | Audi | TT Quattro
Car | 2002 | Audi | S3
Car | 1999 | Audi | A4
Car | 1998 | Audi | A4
Car | 2004 | Audi | A4
Car | 2005 | Audi | A4
Car | 2002 | Audi | A4
Car | 2000 | Audi | A4
Car | 1999 | Audi | A4 Quattro
Car | 1998 | Audi | A4 Quattro
Car | 2000 | Audi | A4 Quattro
AUDI / VOLKSWAGEN|1.8T 20V - 20MM PIN - NEW FSR SERIES
Bore (in) 3.248
Bore (mm) 82.5
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Forging Type FSR
Volume (cc) -12.70
Series JE Pistons
Piston Head Type Inv Dome/Dish
Pin Diameter (IN) 0.787
Compression Height 1.286
Make AUDI / VOLKSWAGEN
Wrist Pin Style - floating or press fit Floating
Wall Type CHAMFERED
Wall Thickness (IN) 0.180
Ringset Part Number JG1001-3250
Ring Brand ProSeal
Ringset Included Yes
Retainer Thickness 0.050
Retainer Lock Style Wire Lock
Retainer Lock Part Number 787-050-MW
Retainer Diameter (IN) 0.787
Replacement Single Piston 353826S
Piston Pin Inside Diameter 0.427
Piston Pin Material 5115 LOW CARBON STEEL, CASE HARDENED
Piston Material 2618
Piston Pin Length (IN) 2.250
Pin Offset Yes
Pin Brand JE Pistons
Pin Part Number 787-2250-18-51C
Pin Included Yes
Pin Diameter (mm) 20.00
Oil Rail Support Included No
Deck Clearance -0.005
Brand JE Pistons



Feel free to contact us at info@mlperformance.co.uk should you wish to double check!



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



JE-PISTONS-353826
