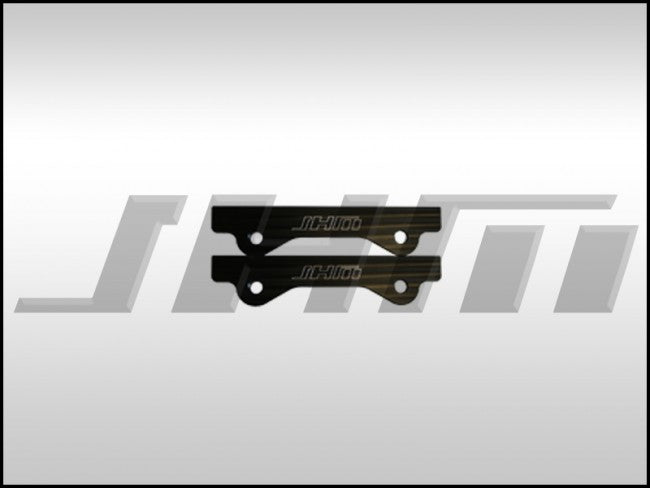

BRACKET PAIR ONLY from our popular B9 BBK 19Z kit. You will use your factory caliper to spindle bolts to bolt our bracket to your spindle and the factory caliper to caliper bracket bolts to bolt the caliper to the bracket.

DISCLAIMER: Using our brackets with your own rotor is at your own risk and this kit CAN NOT be returned

BASED ON THE MEASUREMENTS FROM OUR JHM ROTORS SUPPLIED IN OUR FULL KIT HERE ARE MEASURMENTS FOR POTENTIAL ROTORS THAT MAY WORK.

NOTE: We built a CUSTOM rotor for our kit so we have not explored what other off the shelf rotor may work with our brackets.

34mm thick rotor
Pad area needed 81mm with 382mm OD rotor - may need as much as 85mm depending on your rotor OD
15mm to 16mm offset hat
380 to 385mm OD
Correct Audi Bolt pattern and hub bore

36mm thick rotor
Pad area needed 81mm with 382mm OD rotor - may need as much as 85mm depending on your rotor OD
14mm to 15mm offset hat
380 to 385mm OD
Correct Audi Bolt pattern and hub bore

38mm thick rotor
Pad area needed 81mm with 382mm OD rotor - may need as much as 85mm depending on your rotor OD
13mm to 14mm offset hat
380 to 385mm OD
Correct Audi Bolt pattern and hub bore

NOTE: Hat offset is the measurement from the back side of the rotor hat where it touches the wheel hub to the front face of the rotor ring where the pad touches.

Feel free to contact us at info@mlperformance.co.uk should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

JHM-BBK-1025x382x34-B9-BRACKET-KIT

Manufactured by

JHM
