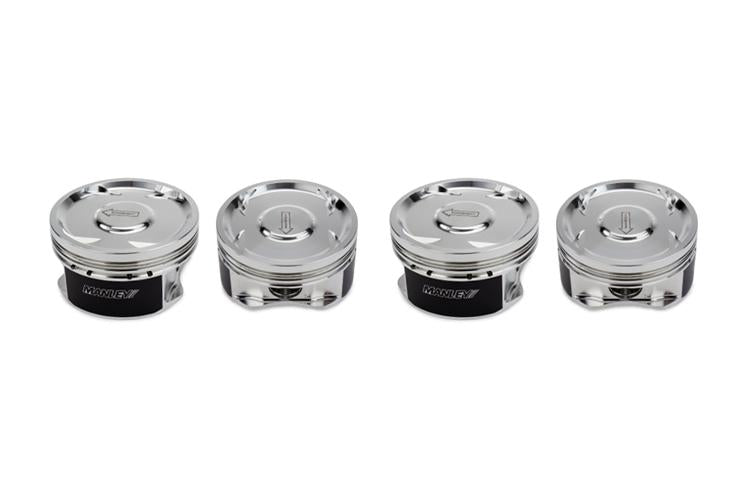

MANLEY 632801CE-4 PISTONS KIT PLATINUM SERIES EXTREME DUTY 99.5MM SUBARU WRX STI EJ257

MANLEY 632801CE-4 PISTONS KIT PLATINUM SERIES EXTREME DUTY 99.5MM SUBARU WRX STI EJ257

£1,208.00 Inc. VAT
£1,074.00 £1,208.00 Inc. VAT
9th Anniversary Badge

Price Match

Price Match Guarantee

If you find a lower price at an eligible US retailer website, we will match it.

Questions about this part?

Our technical advisors can confirm fitment for your vehicle. Contact us with your vehicle details.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

EJ25 - PLATINUM SERIES TURBO TUFF PISTONS

The best aftermarket Subaru piston company just got even better with our new Turbo Tuff lineup targeted specifically for EJ25 engines. By incorporating proven design enhancements from our "Formula-Won" piston forging, we've created the ultimate Subi piston to withstand the rigors of the highest boosted and stressed applications yet still run "quietly" and trouble-free for the daily driver. Like all Manley Subaru pistons, these are made from 2618 alloy, utilize an offset wrist pin design, are skirt coated and include our standard 2.500" x .180" wall premium chrome moly wrist pin (P/N 42346). 9310 alloy .250" wall pin upgrades are available. Simply order the EXTREME DUTY part number in the column below. These come equipped with the 9310 pins (P/N 42547). Premium steel top rings with Napier style second rings and higher tension oil rings for ultimate oil control are included with each set along with round wire locks. Recommended clearance: .003" for mildly boosted and .0035" for highly boosted measured .850" (79/83mm Strokes) and 1.100" (75mm Stroke) from the bottom of the oil ring groove.

Manley Subaru EJ257 pistons now include Napier style second rings and higher tension oil rings (by Total Seal) for superior oil control.

Subaru WRX STi 2004-Up
Standard
Part #		 Extreme Duty
Part #		 Bore Size (mm) Over Size Rod
Length		 Comp.
Distance		 Dome
Volume (cc)		 Cylinder
Head (cc)		 Comp. Ratio Piston Type Piston Wt / Gms Included
Ring Set
75mm De-Stroked (2.35L)
632000C-4 632000CE-4 99.5 STD 5.137" 1.285" -18 51 8.5 Dish 439 46995DT-4
632002C-4 632002CE-4 99.75 +.25mm 5.137" 1.285" -18 51 8.5 Dish 444 46997DT-4
632005C-4 632005CE-4 100 +.5mm 5.137" 1.285" -18 51 8.5 Dish 448 461000DT-4
632100C-4 632100CE-4 99.5 STD 5.137" 1.285" -6 51 9.8 Flat Top 472 46995DT-4
632102C-4 632102CE-4 99.75 +.25mm 5.137" 1.285" -6 51 9.8 Flat Top 475 46997DT-4
632105C-4 632105CE-4 100 +.5mm 5.137" 1.285" -6 51 9.8 Flat Top 479 461000DT-4
79mm STD Stroke (2.5L)
632200CA-1* 632200CEA-1* 99.5 Grade A STD 5.137" 1.209" -22 51 8.5 Dish 405 46995DT-1
632200CB-1* 632200CEB-1* 99.5 Grade B STD 5.137" 1.209" -22 51 8.5 Dish 405 46995DT-1
632200C-4 632200CE-4 99.5 STD 5.137" 1.209" -22 51 8.5 Dish 405 46995DT-4
632201C-4 632201CE-4 99.55 +.05mm 5.137" 1.209" -22 51 8.5 Dish 405 46995DT-4
632202C-4 632202CE-4 99.75 +.25mm 5.137" 1.209" -22 51 8.5 Dish 408 46997DT-4
632205C-4 632205CE-4 100 +.5mm 5.137" 1.209" -22 51 8.5 Dish 412 461000DT-4
632800CA-1* 632800CEA-1* 99.50 Grade A 5.137" 1.209" -17 57 8.5 Dish TBA 46995DT-1
632800CB-1* 632800CEB-1* 99.50 Grade B 5.137" 1.209" -17 57 8.5 Dish TBA 46995DT-1
632800C-4 632800CE-4 99.50 STD 5.137" 1.209" -17 57 8.5 Dish TBA 46995DT-4
632801C-4 632801CE-4 99.55 +.05mm 5.137" 1.209" -17 57 8.5 Dish TBA 46995DT-4
632802C-4 632802CE-4 99.75 +.25mm 5.137" 1.209" -17 57 8.5 Dish TBA 46997DT-4
632805C-4 632805CE-4 100.00 +.5mm 5.137" 1.209" -17 57 8.5 Dish TBA 461000DT-4
632300C-4 632300CE-4 99.5 STD 5.137" 1.209" -10 51 9.8 Dish 429 46995DT-4
632302C-4 632302CE-4 99.75 +.25mm 5.137" 1.209" -10 51 9.8 Dish 433 46997DT-4
632305C-4 632305CE-4 100 +.5mm 5.137" 1.209" -10 51 9.8 Dish 436 461000DT-4
83mm Stroker (2.6L)
632400C-4 632400CE-4 99.5 STD 5.137" 1.130" -26 51 8.5 Dish 389 46995DT-4
632402C-4 632402CE-4 99.75 +.25mm 5.137" 1.130" -26 51 8.5 Dish 393 46997DT-4
632405C-4 632405CE-4 100 +.5mm 5.137" 1.130" -26 51 8.5 Dish 396 461000DT-4
632500C-4 632500CE-4 99.5 STD 5.137" 1.130" -14 51 9.8 Dish 424 46995DT-4
632502C-4 632502CE-4 99.75 +.25mm 5.137" 1.130" -14 51 9.8 Dish 425 46997DT-4
632505C-4 632505CE-4 100 +.5mm 5.137" 1.130" -14 51 9.8 Dish 428 461000DT-4

*These pistons feature skirt diameters that correspond to the OEM Grade A or B bores resulting in a piston to wall clearance range of .0023" - .0031". Check the bore grades on the top of your block and order the appropriate quantities of Grade A or B pistons. (Sold as -1 individual pieces, not sets.)



Feel free to contact us at info@mlperformance.co.uk should you wish to double check!
