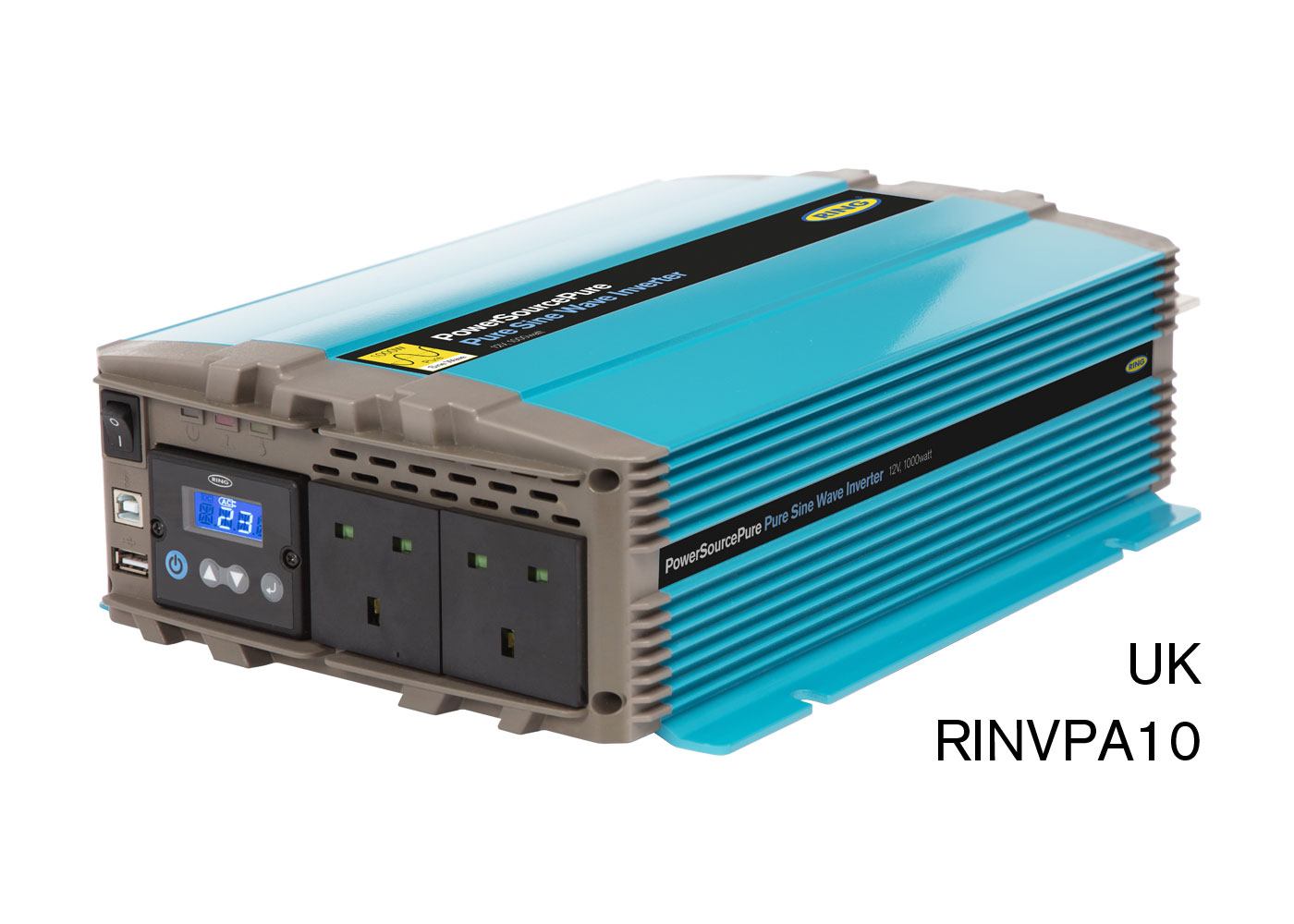

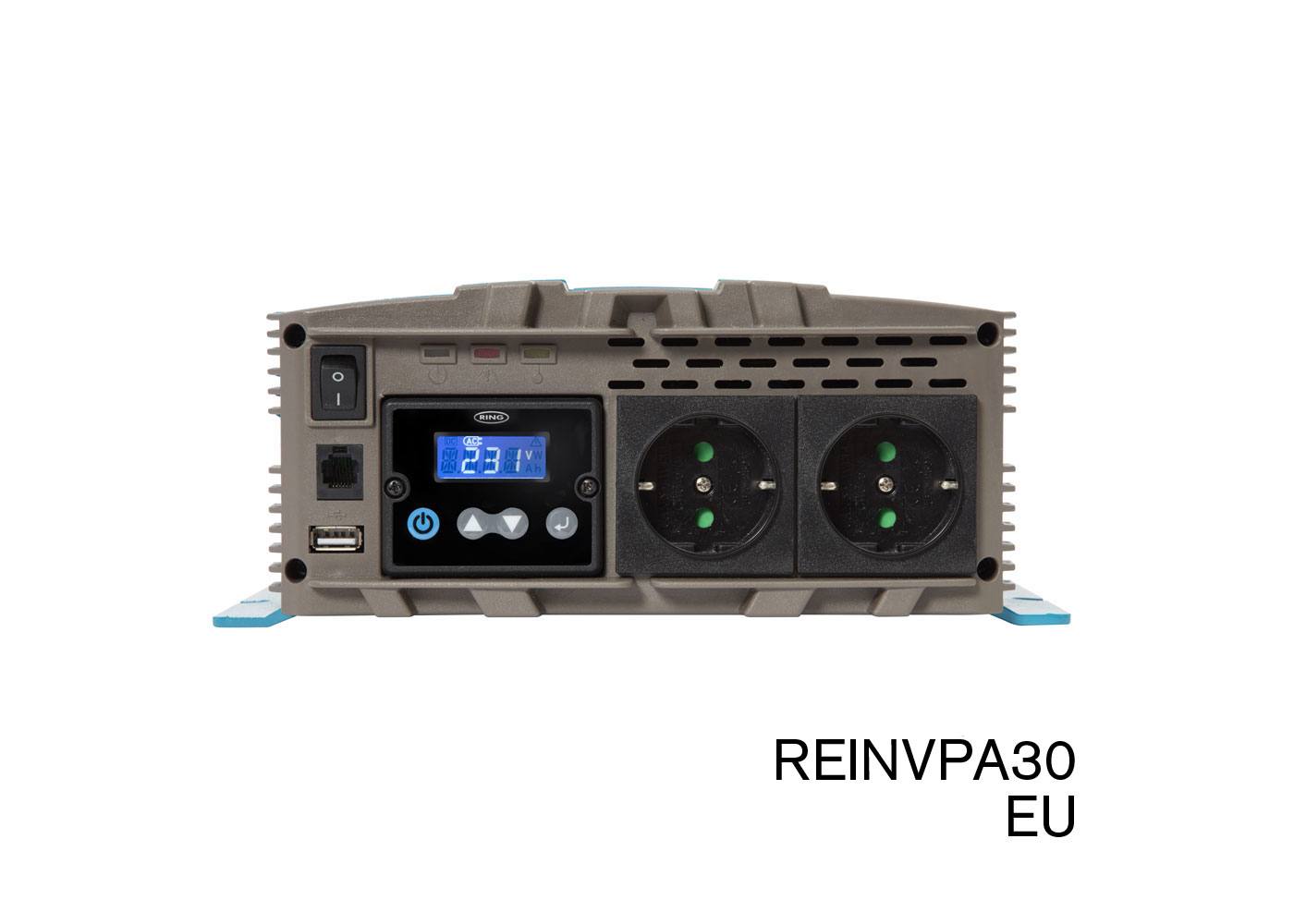

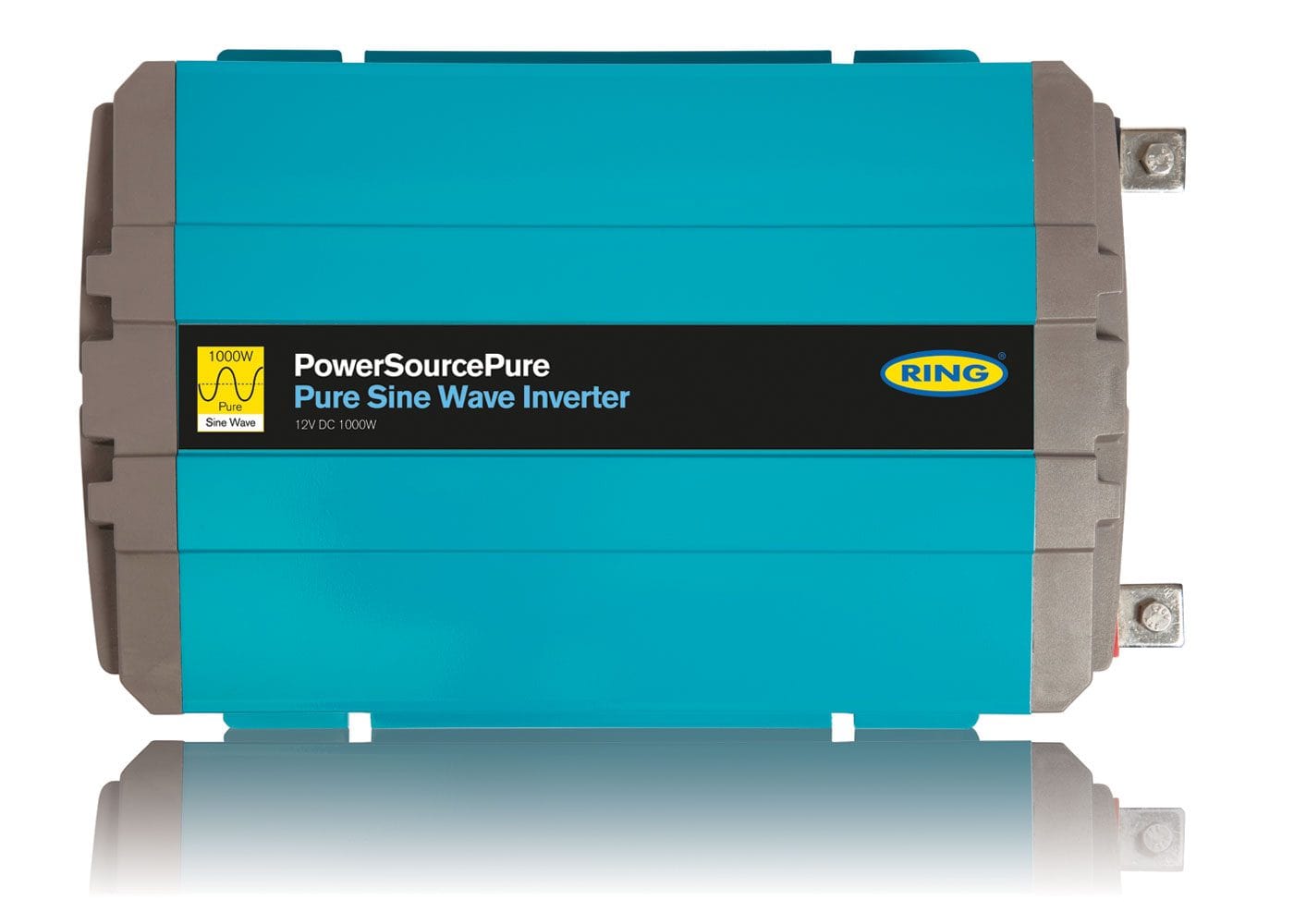

This is PowerSourcePure Pure Sine Wave Inverter.

Professional 1000 watt pure sine wave inverter, converts 12 volt battery power into useful 230 volt AC mains power - ideal for remote applications such as service vehicles. Pure sine wave inverters provide an extremely pure output, which replicates the normal domestic mains supply. This makes them suitable for powering products not compatible with modified sine wave inverters, such as certain power tools, coffee machines, laser printers and sensitive electronics such as laptops and audio/visual equipment.

Highly efficient, running at 90% efficiency at 75% load, and with minimal footprint to reduce installation space. Includes a power saving mode to reduce battery drain when not in use. All models are fully protected against overload, over temperature and low/high voltages.

An additional LCD screen is also available, to provide power consumption information – essential for effective power management when working remotely. Also available is the RINVCM Current Sensor, which monitors the inverter's battery current, allowing indication of time remaining before battery is flat to help improve power management.

PowerSourcePure inverters are E-Marked and tested and certified to the relevant EMC and LVD Directives.



1000W pure sine wave inverter

Operating mode and fault indicators

Power saving mode reduces standby power

Up to 12 hours continuous use

Compact heavy duty extruded casing

USB charging socket for mobile devices

Optional multi-function LCD frame (RINVFRM)

Optional battery sensor module (RINVCM)

Fully protected against overload, over temperature and low/high voltage

Suitable for 12V vehicles



Specifications

Product dimensions (mm): HxWxD	99 x 247 x 373
Weight (kg)	5.266
Voltage	12V DC Input 230V AC Output
Wattage	1000W
E Regulation	10 - EMC
Continuous power rating (up to 12hrs)	1000W
Peak power rating (up to 200ms)	2000W
Output voltage	Adjustable: 200/220/230/240V +/- 10%
Output frequency	Adjustable: 50/60Hz
Output waveform	Pure sine wave
Input voltage range	9.5 - 16.5V (12V nom)
Input current	59A
Efficiency at 75% load	90%
No load current draw	<1.5A
Power saving mode	Yes
Power saving current	0.2A
Low battery alarm sounds	10 - 11.5C +/- 0.5V
Low battery shut down	9.5 - 11V +/- 0.5V
Thermal protection	60°C +/- 10°C
USB	2.1A
Display panel port	Yes
Current sensor port	Yes



Double check your vehicle's compatibility with our product recommender. Need help? Our friendly team is here to assist you!



To ensure the part(s) you have ordered fits your need, we run a compatibility check prior to dispatch. Feel free to contact us if you require any assistance!



RING-RINVPA10



Manufactured by

RING AUTOMOTIVE
