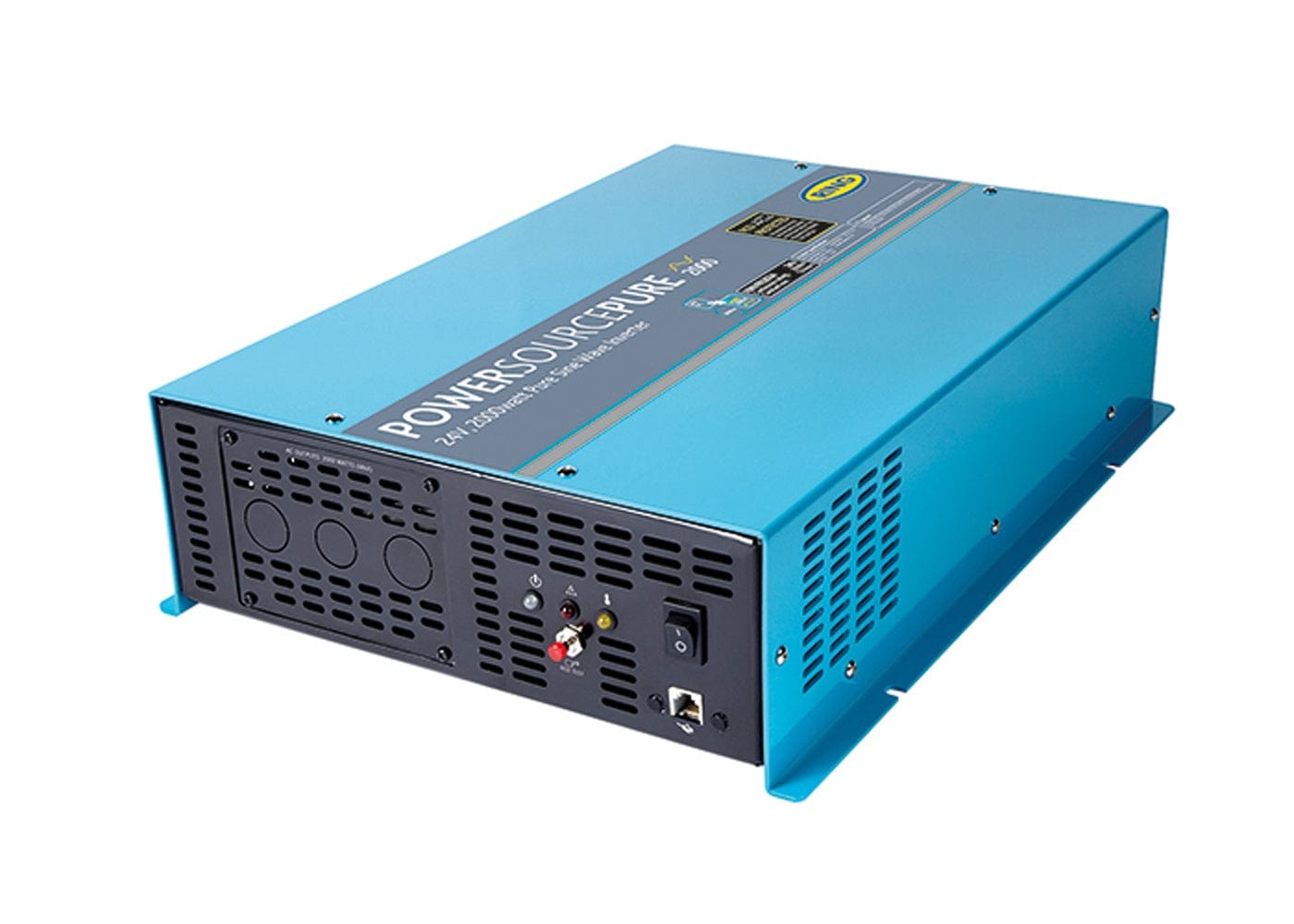

This is PowerSourcePure 2000W Inverter with RCD.

Professional 2000W pure sine wave inverter, suitable for 24V vehicles, with integral Residual Current Device (RCD). This can replace the need for an external RCD and will switch off the inverter in the event a fault is detected between live and earth. This protects the user against electric shocks.

Inverters convert 24V power into useful 230V power - ideal when working remotely where no mains power is available, and particularly for vehicle conversions. Well suited to demanding applications, with rugged extruded metal casing, heavy duty input cables and clamps for direct connection to batteries and able to provide power for up to 12 hours.

Pure sine wave inverters provide an extremely pure sine wave output, which replicates the normal domestic mains supply. This makes them ideal for powering more sensitive electronics, and able to power the widest range of equipment. This is particularly valuable for powering those products not compatible with modified sine wave inverters, such as certain power tools, coffee machines, laser printers and sensitive audio/visual equipment.

The PowerSourcePure 2000W inverter is able to power devices up to 2000W, such as mircowaves, an oxygen concentrator or a circular saw. Features 2x plug sockets, and includes low power alarm to alert you when the battery powering the inverter is running low - preventing the inverter from draining the vehicle battery - and automatic shut down. Fully protected against overload, over temperature and low/high voltages. The LED display shows operating mode and fault conditions.

Includes remote control port, to add the RINVWRC remote control panel, which provides more convenient control and display of the inverter status for permanent installation.

All Ring inverters are tested and certified to the relevant EMC and LVD Directives.



2000W pure sine wave inverter

Integrated RCD protects the user against electric shocks

Suitable for 24V vehicles

Rugged extruded metal casing

Heavy duty input cables and clamps

Provides continuous power for up to 12 hours

Features 2x plug sockets

Low power alarm and shut down to prevent inverter draining the battery

Fully protected against overload, over temperature and low/high voltage

LED display shows operating mode and fault conditions

CE approved



Specifications

Product dimensions (mm): HxWxD	99 x 291 x 415
Weight (kg)	7.208
Voltage	24V DC Input 230V AC Output
Wattage	2000W
Continuous power rating (up to 12hrs)	2000W
Surge power rating (up to 1 sec)	4000W
Output voltage	230AV +/- 10%
Output frequency	50Hz
Output waveform	Pure sine wave
Input voltage range	10V - 16V
Efficiency	>85%
No load current draw	<1.5A
Low battery alarm sounds	10.5V +/- 1V
Low battery shut down	10.0V +/- 1V
Thermal protection	60°C +/- 10°C
Remote control port	Yes



Double check your vehicle's compatibility with our product recommender. Need help? Our friendly team is here to assist you!



To ensure the part(s) you have ordered fits your need, we run a compatibility check prior to dispatch. Feel free to contact us if you require any assistance!



RING-RINVPR2024



Manufactured by

RING AUTOMOTIVE
