High performance camshafts are key to increasing the power output of your BMW S54 engine, with multiple specifications available from Schrick. Priced per engine set of two cams.

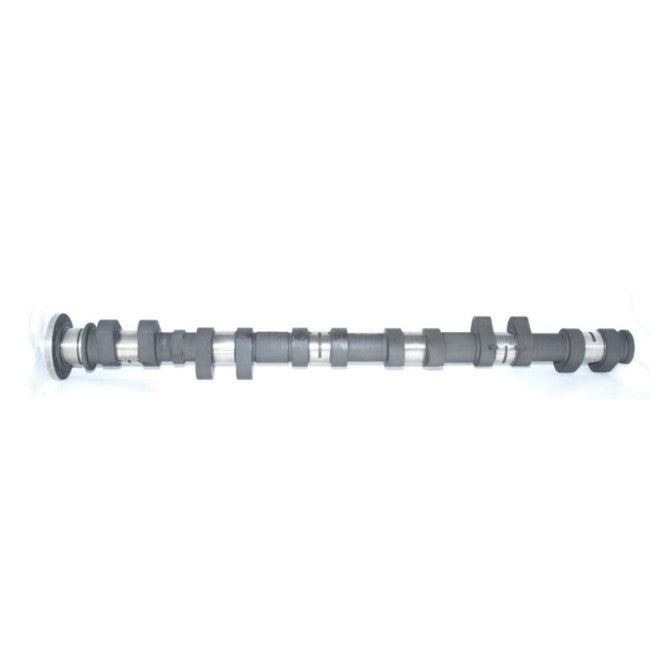

This is for 1 unit of the exhaust camshaft. For the corresponding intake camshaft, please see Schrick S54 E46 M3 CSL 288° Intake Camshaft.

Exhaust Only

Duration [°Kw] (en)

• Duration intake -

• Duration intake @ 1 mm -

• Duration exhaust 280

• Duration exhaust @ 1 mm 249

• Intake peak timing -

• Exhaust peak timing 130-85

Lift [mm] (en)

• Cam lobe lift intake -

• Cam lobe lift exhaust 11,6

• Valve lift without valve clearance intake -

• Valve lift without valve clearance 12,5

• Valve clearance intake -

• Valve clearance exhaust 0,25

Timing [°Kw] (en)

• Intake opens 0
  Intake opens (Eö) (EM) 2 -
  Intake closes -
  Intake closes (Es) (EM) 2 -
  Exhaust opens 55-45
  Exhaust opens (Aö) (AM) 2 -
  Exhaust closes 33147
  Exhaust closes (As) (AM) 2 55

Timing [°Kw] @ 1mm Lift (en)

• Intake opens @ 1 mm (EM) 1 -

• Intake opens @ 1 mm (EM) 2 -

• Intake closes @ 1 mm (EM) 1 -

• Intake closes @ 1 mm (EM) 2 -

• Exhaust opens @ 1 mm (AM) 1 -255

• Exhaust opens @ 1 mm (AM) 2 -210

• Exhaust closes @ 1 mm (AM) 1 -6

• Exhaust closes @ 1 mm (AM) 2 39

Lift @ TDC [mm] (en)

• Valve lift @ TDC intake (EM) 1 -

• Valve lift @ TDC intake (EM) 2 -

• Valve lift @ TDC exhaust (AM) 1 0,62-6,25

• Valve lift @ TDC exhaust (AM) 2 -

Performance Diagram Download

BMW M Series E46 M3 CSL S54 (09/2002 — 12/2003)

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

0415A1800-00

Manufactured by

AVL Schrick
