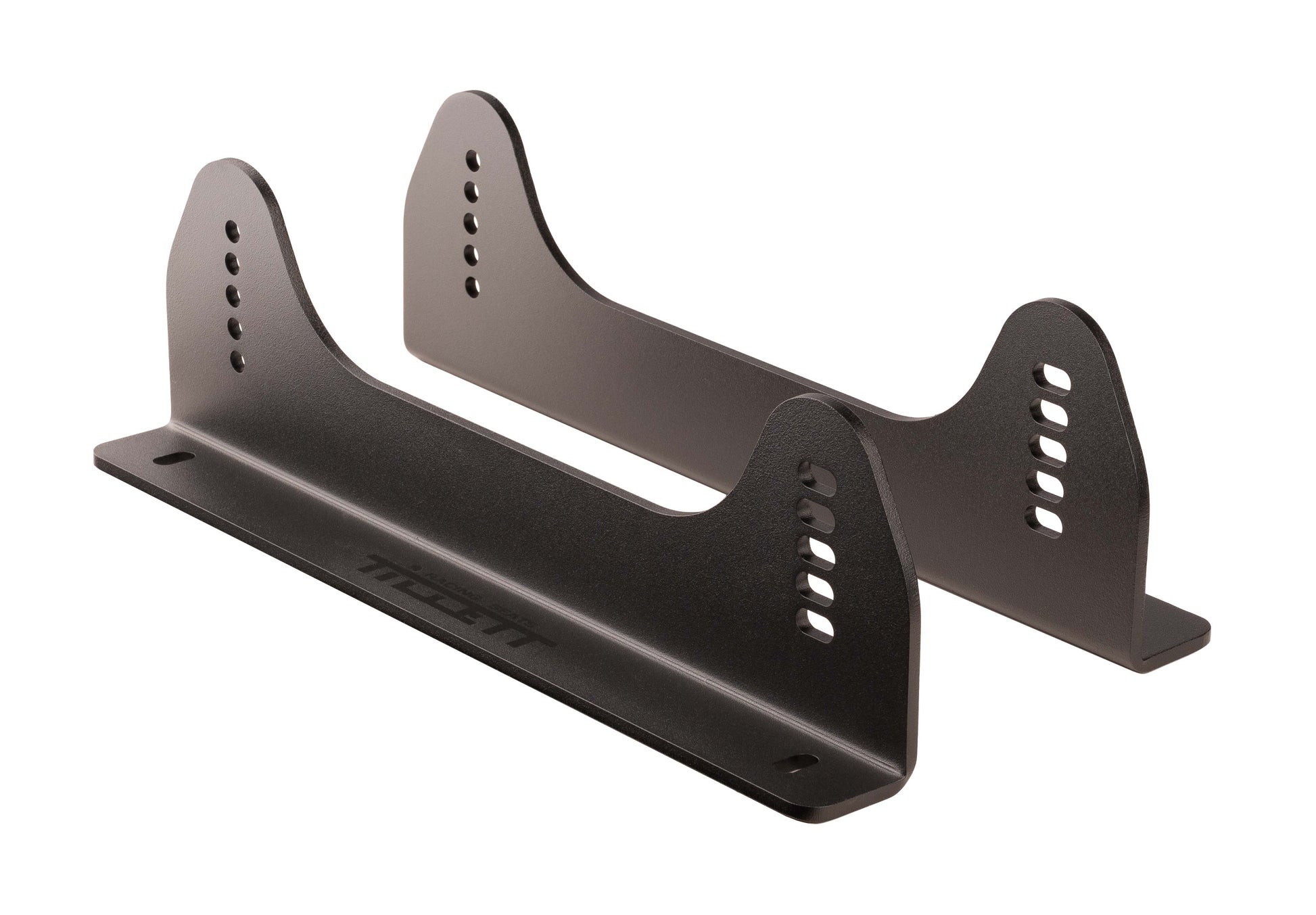

CAR SEAT BRACKET SET, MADE FOR TILLETT SEATS B6*, B7, B8, B9, B10 & C1.

The STBO bracket system is designed to point away from the seat and will therefore give a larger footprint.

This requires a wider cockpit but helps with allowing more accessible fitting if you have the space. They are made from 5mm thick black powder coated aluminium and allow the seat to be tipped, raised and lowered using the various hole and slot combinations. The lower slots in the base of the bracket enable them to fit directly on the Tillett STRO and PTRO seat adjustment runners.

The optional aluminium "Pegged spacer kit" can also be used in these brackets to strengthen the front slots in the event of an accident.

• OUTWARD pointing bracket set for a wider footprint & easier installation in a cockpit.
• Flat floor bracket with 2° angle on sides to match Tillett seats B6S, B6SXL, B6*, B6 XL, B7, B7XL, B8, B9, B10 and C1 car seats (* side mount version only).
• Made from 5mm thick aluminium with textured black powder coated finish.
• The slot and hole options in the brackets allow the seat to be tipped, raised and lowered.
• Lower slot dimension enables them to fit directly on the Tillett STRO and PTRO seat adjustment runners. (Please note we advise against using any seat adjustment runners in a race car, as they are only intended for road use).
• The optional aluminium "Pegged spacer kit" can be used to strengthen the front slots in the event of an accident.
• A pair of STBi weighs 1.11kg.
• Manufactured in the UK.

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

TILLETT-STBO

Manufactured by

Tillett
