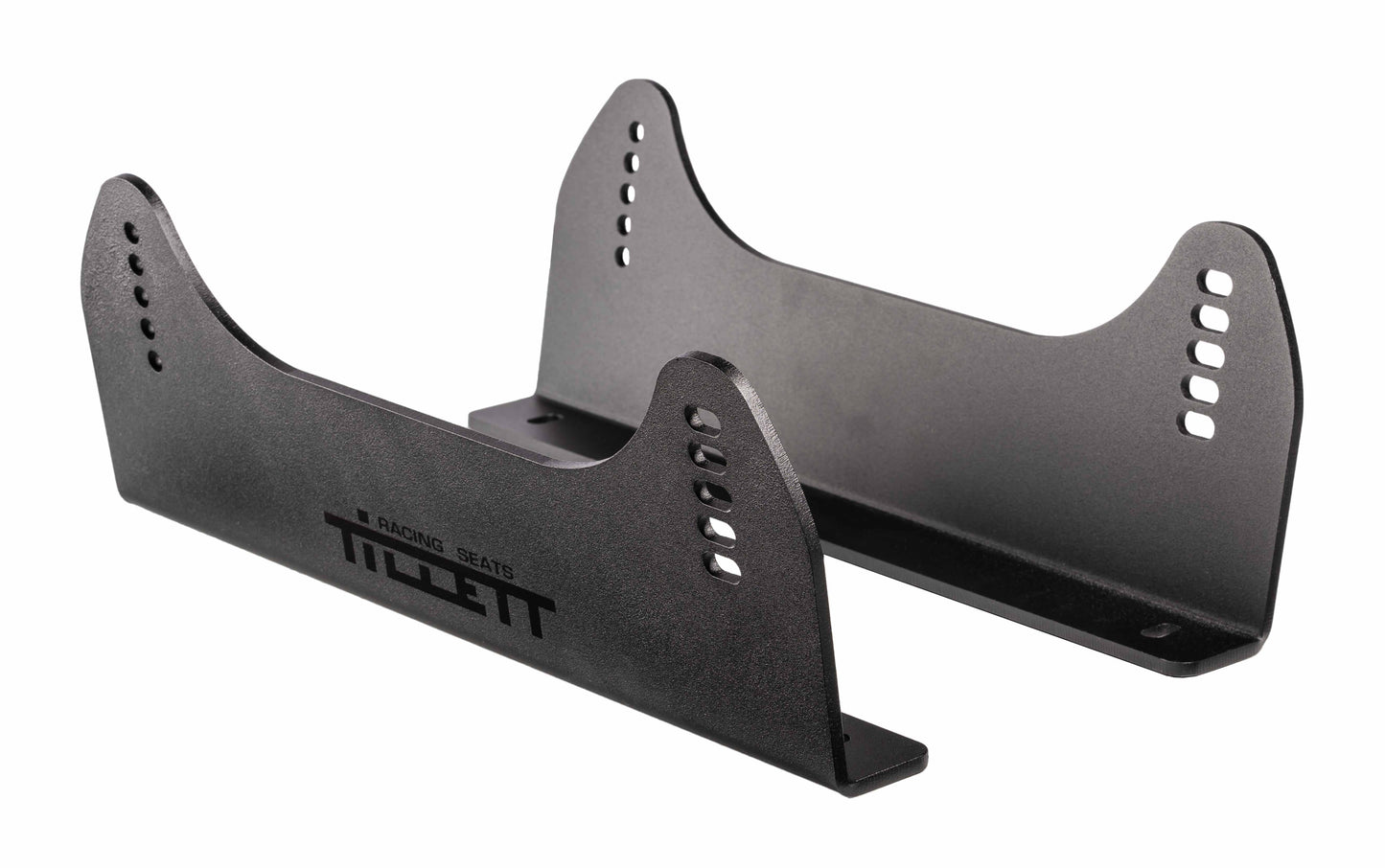

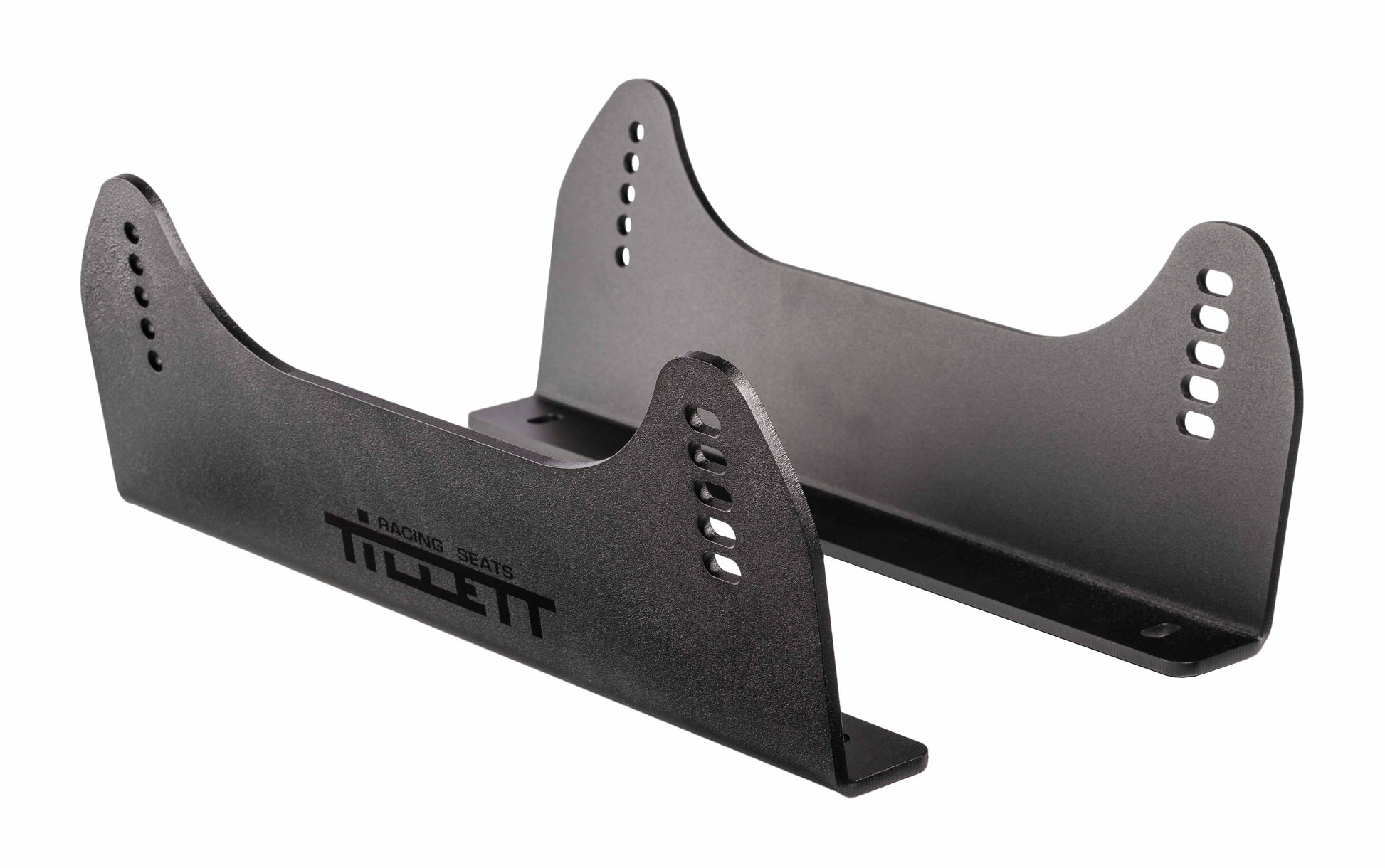

TALLER CAR SEAT BRACKET SET, MADE FOR INSTALLING B2 & B4 CAR SEATS.

TB4 brackets are for mounting specific models of Tillett car seat. These are a 30mm taller version of the TB1.

It is sometimes necessary to lift Tillett seats when used in a saloon car, as the driving position in Tillett seats is very low when compared to OEM, or regular performance seats.

They are made from 5mm thick powder coated aluminium with a resilient textured finish and the brackets point inwards under the seat for a minimal footprint. These brackets also have slot and hole options to enable the seat to be tipped, raised and lowered.

TB4 brackets are designed with an 8° negative camber to match the sides of the B2 and B4 models. In addition, they fit the older B1 carbon seat.

‍

• INWARD (under the seat) pointing bracket for minimal footprint & maximum fitment possibilities within narrow and restricted cockpits.
• 30mm taller for a regular production saloon car.
• 8° negative camber on the uprights to match the sides of the B2, B4 or older B1 models.
• Made from 5mm thick aluminium with a textured black powder coated finish.
• The slot and hole options in the brackets allow the seat to be tipped, raised and lowered.
• Lower slot dimension enables them to fit directly on the Tillett STRI and PTRI seat adjustment runners.  (Please note we advise against using any seat adjustment runners in a race car, as they are only intended for road use).
• The optional aluminium "Pegged spacer kit" can be used to strengthen the front slots in the event of an accident.
• A pair of TB4 brackets weigh 1.3kg.
• Manufactured in the UK.

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

TILLETT-TB4

Manufactured by

Tillett
