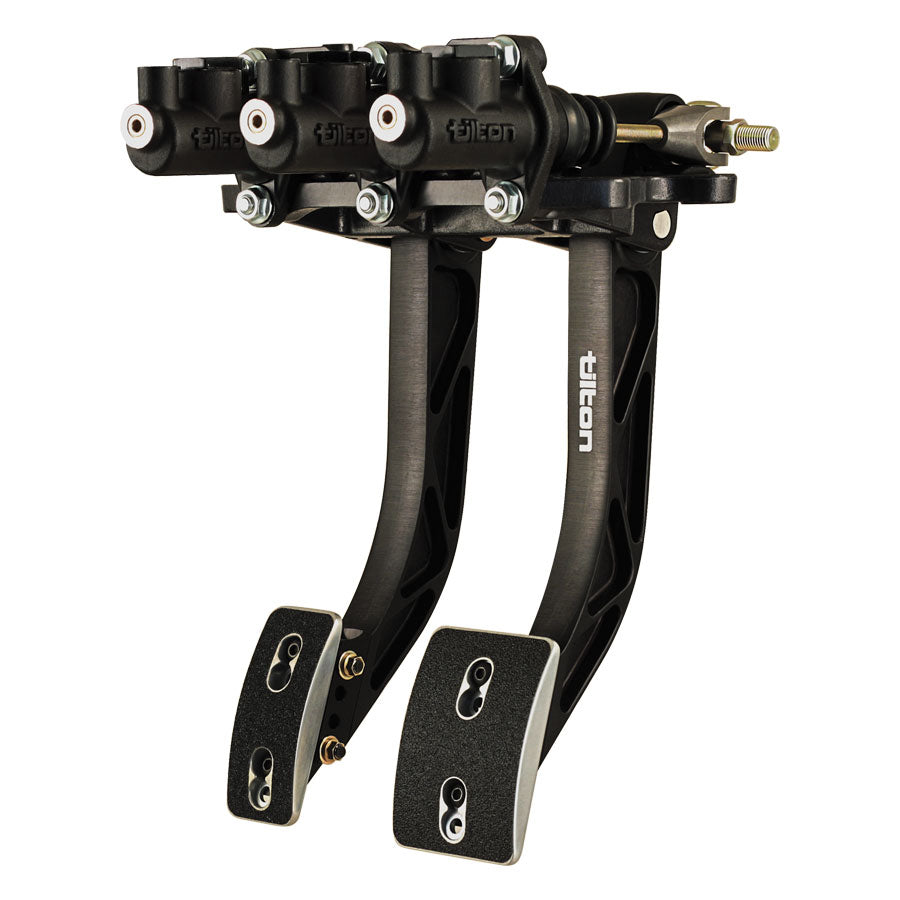

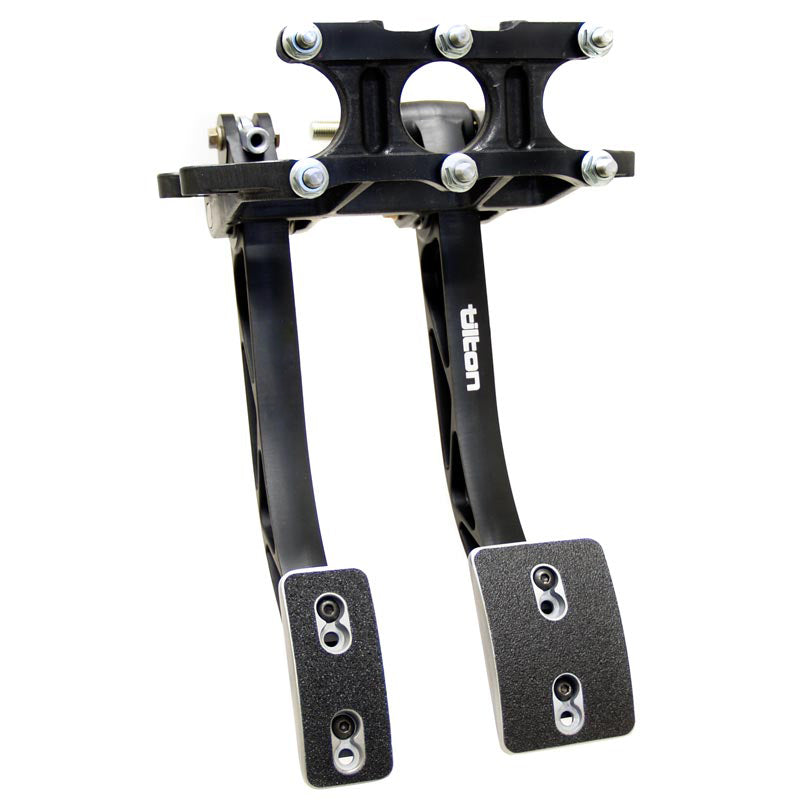

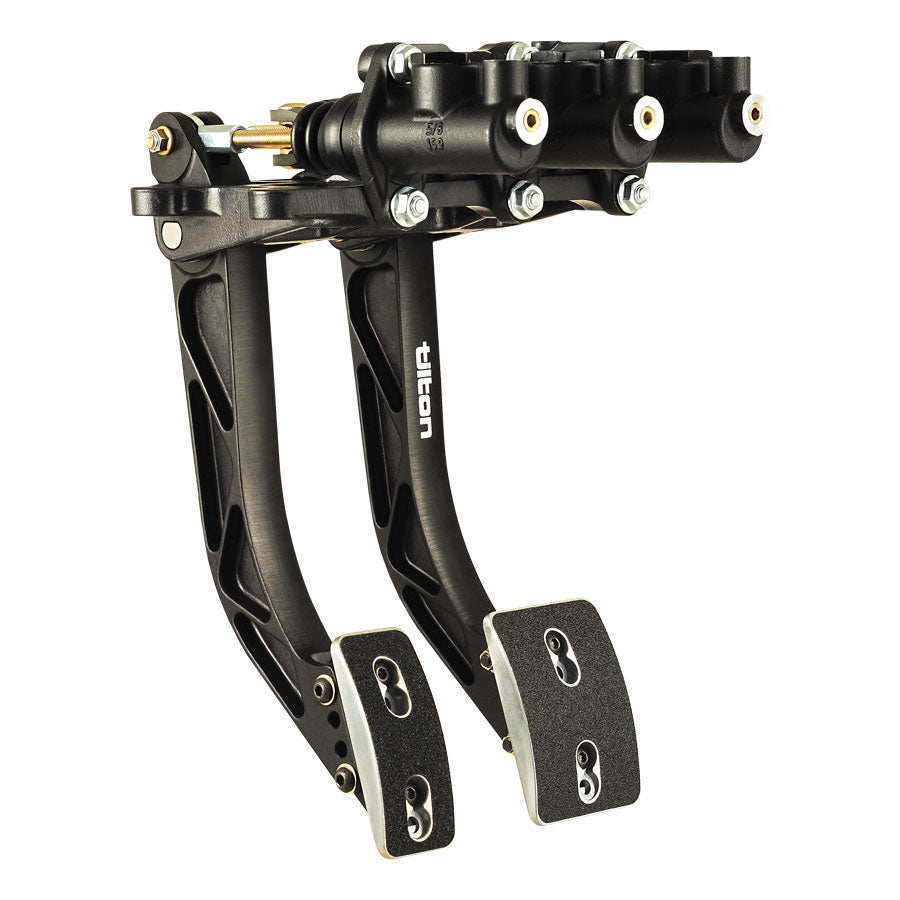

Tilton’s 600-Series overhung-mount aluminum pedal assembly features traditional fixed-mount master cylinder and balance bar technology and provide excellent performance at competitive prices.

Features:

• Forged aluminum pedals are engineered for high rigidity and low weight.
• Adjustable pedal ratio (5.0:1 - 6.2:1) enable the brake pedalto be tuned to driver preference without having to change master cylinder bore size.
• Foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences.
• Large diameter 7/16”-20 balance bar provides maximum rigidity. PTFE coated aluminum clevises for increased durability and reduced friction.
• Pedal pivots feature wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction.
• Lightweight aluminum frame features guide "ramps” to reduce balance bar tipping, decreasing friction and improving brake repeatability.

• Road Racing
• Endurance
• Off Road
• High Performance Street/Strip
• Circle Track
• Rally
• Drifting

Mounting location:Under Dash
Pedal material:Forged aluminum
Weight:4.8 lbs (2.2 kg)
