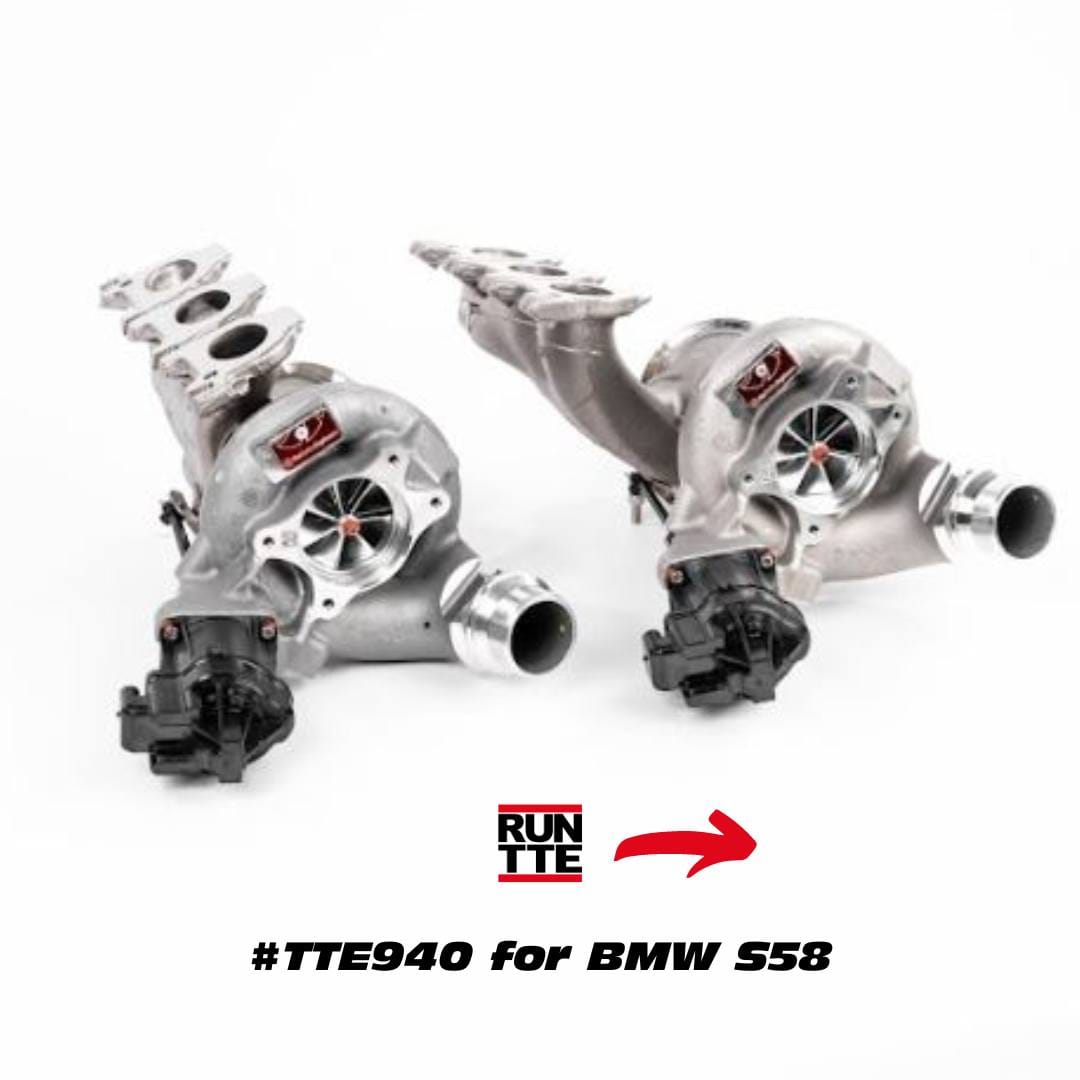

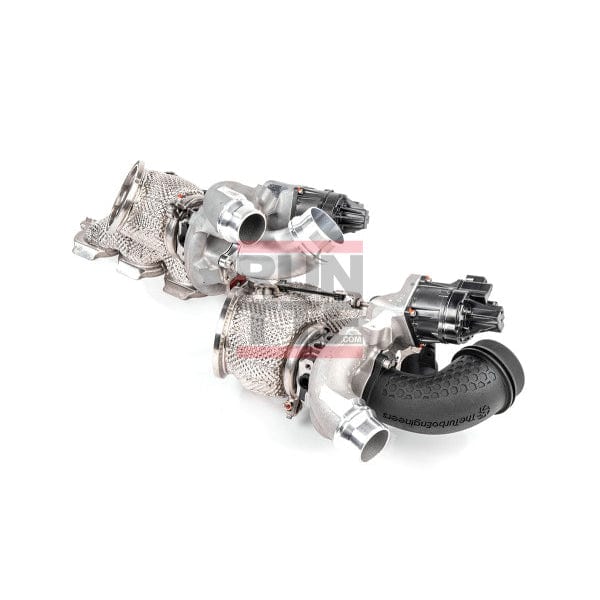

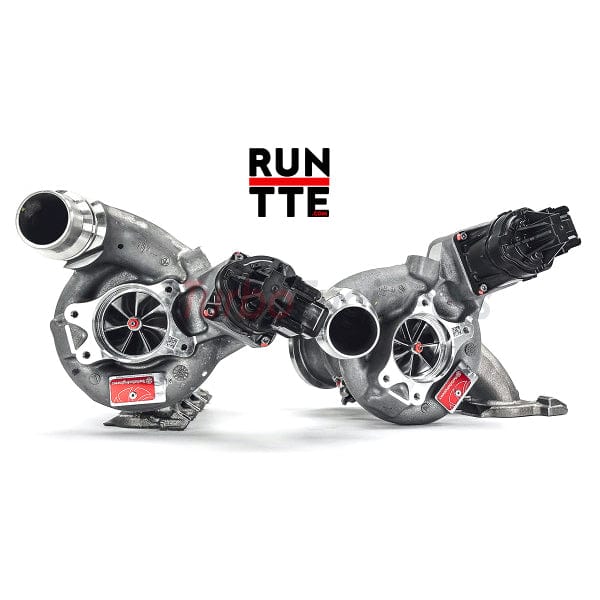

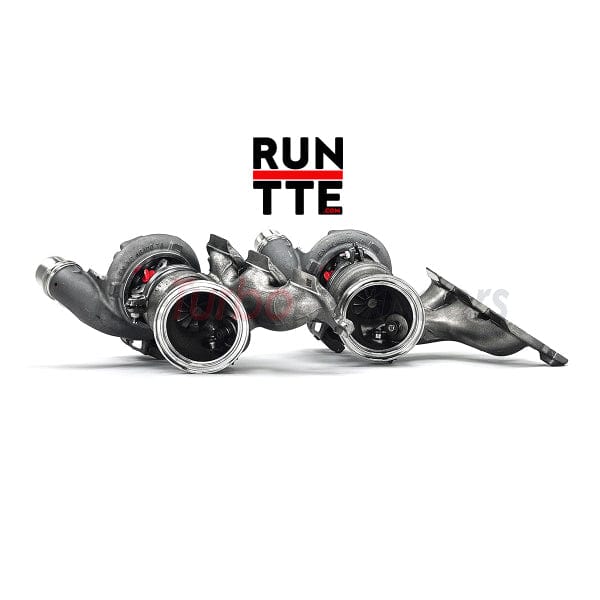

TTE940 Stage 3 Turbocharger upgrade for the BMW S58 Motor.

To construct a pair of TTE940 turbos we removed the original compressors and employ a far larger and more efficient billet wheel and mill the compressor cover to the optimum gap to match the new compressor profile. We also fitted TTE 9 blade Low-Mass turbines in the turbine housings for greater flow and lower exhaust gas temperatures at high boost and designed and fitted our upgrade bearing pack for durability. We also supply TTE upgrade turbo inlet intakes for no restrictions and ease of use. This combination gives the greatest power potential but also a fast boost response for the ultimate Plug & Play hybrid turbocharger upgrade. Race tested and approved.

Equilibrium

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.

• Original Genuine BMW turbochargers as base parts

• TTE Billet Milled compressor 7+7 BLADE 50.5mm inducer 72.5mm Exducer

• TTE High-Flow 9 blade Turbine

• TTE Upgrade Bearings

• 900+ PS Capable

• Plug & Play installation

• TTE Upgrade intake inlets

• Proven TheTurboEngineers quality

• Single parts finely balanced then components assembled and core high-speed
• VSR balanced

• Supplied with a balance test result document

• Software recalibration is required

• Made in Germany

• Price shown is for a PAIR of turbochargers

Upgrade your Existing Turbo

To upgrade your existing turbo, you will need to send us your non-damaged turbo. The listing price is the cost of upgrading a non-damaged turbo only. If your turbo is damaged, there may be extra cost on top of the listing price, we will provide you with a quote after inspection. All turbo will be closely inspected before the upgrade is carried out. You will also receive a report from our engineer after the upgrade is completed.

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

TTE10516

Upgraded by

TheTurboEngineers (TTE)

Warranty

One year TTE warranty.

Delivery

To upgrade your existing turbo, the estimated delivery time is around 3-4 weeks after receiving your existing turbo.

Our new turbos are made to order, the estimated delivery time is also 3-4 weeks after receiving your order.

TheTurboEngineers (TTE)

TheTurboEngineers GmbH based in German is a dynamic and highly innovative turbocharger engineering company, specialised in production of motorsport turbochargers to the highest quality and greatest efficiency with attention to detail. Every component is optimised on long term reliability.

TTE are focused on the construction of prototypes from a concept, through to completion with all work mostly being done in-house to TTE's extremely high standards in Germany. TTE is a fine example of German engineering at its best.

Small details are important to TTE, as is the conversion of existing OE turbochargers to new upgrade specifications, be it new or from a supplied used turbocharger.
TheTurboEngineers GmbH consults and provides to race teams and many well known tuning houses, looking for the best engineered performance turbochargers available.
