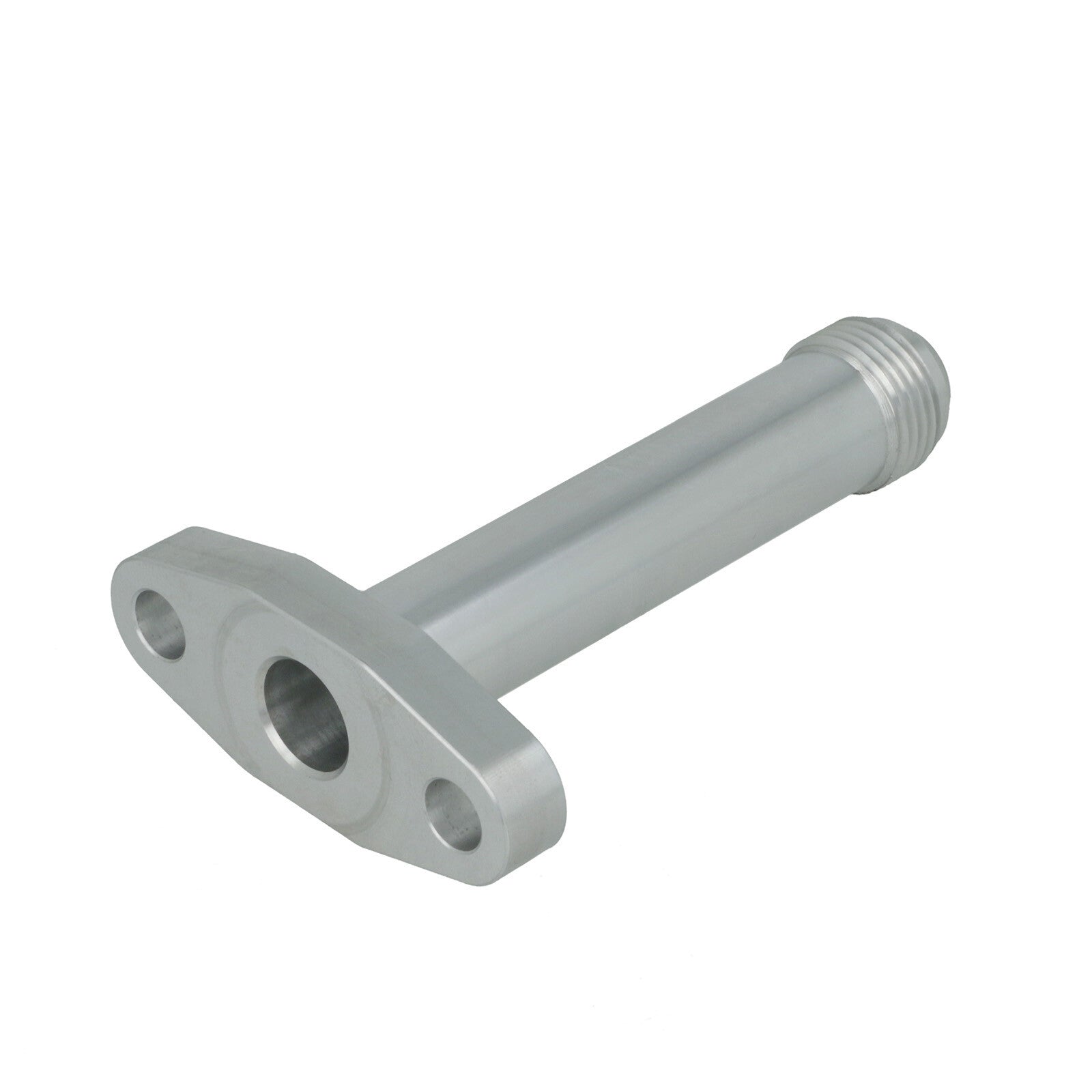

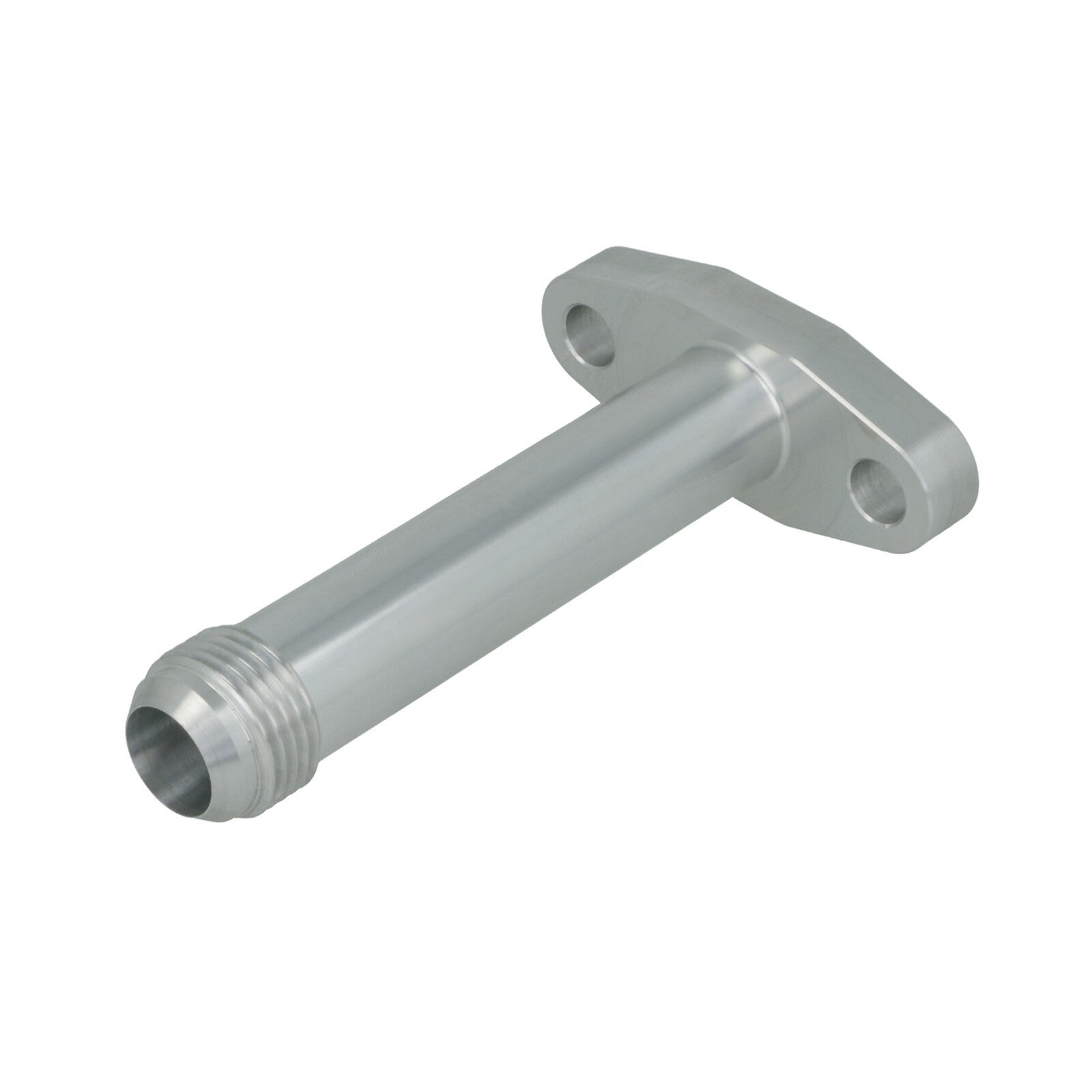

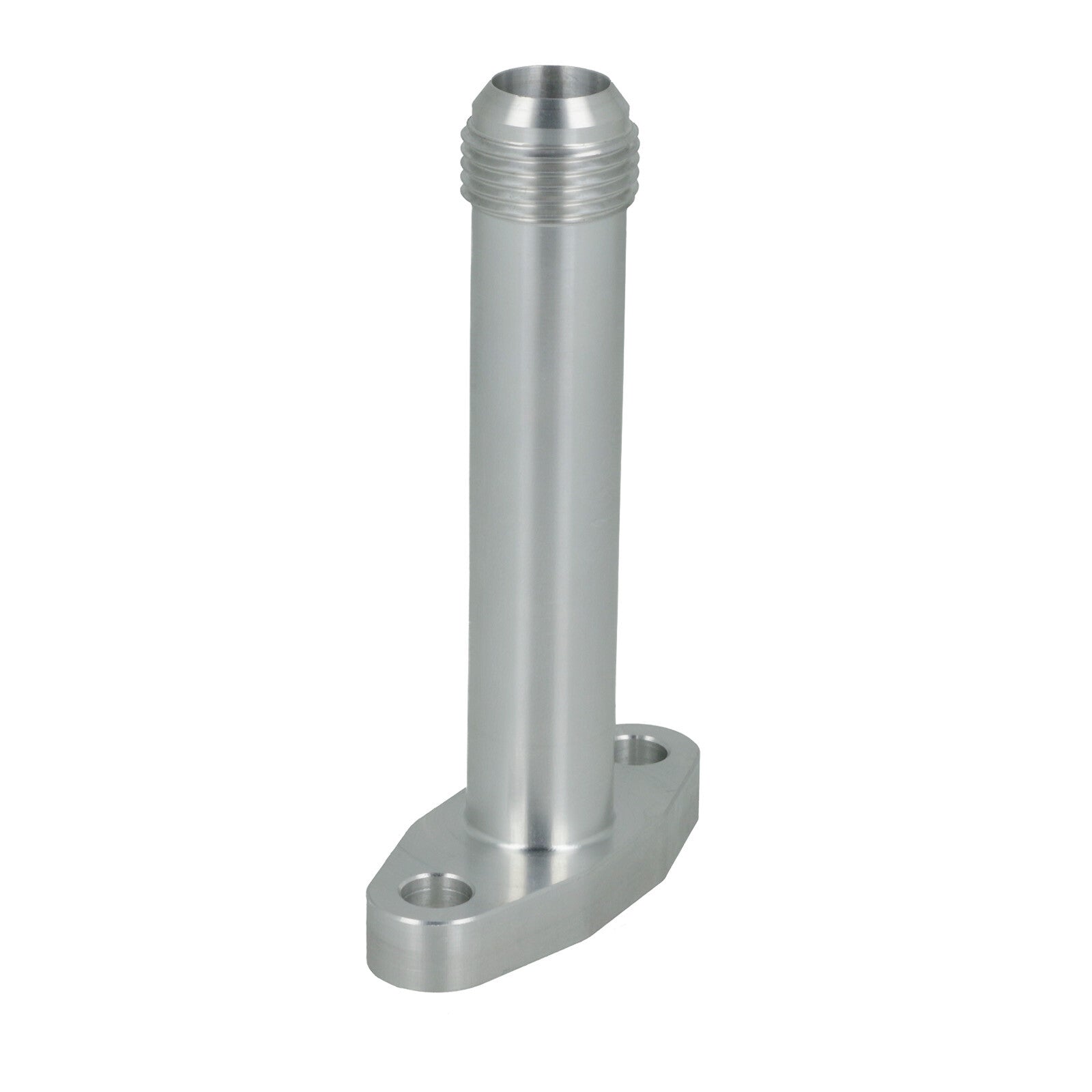

Oil return flange T3 / T4 / KKK / Airwerks Dash 10 -100mm

Return flange with extension and Dash 10 male thread. 100mm long

for Garrett T-superchargers and big Garrett GT. as well as GT-R turbos and some KKK turbochargers


This aluminum oil return flange for Garrett T-chargers and large Garrett GT. as well as GT-R turbos and some KKK turbochargers is CNC turned for a perfect fit. The cross section of the return hole is designed for the necessary return flow of the oil in the correct size.


Material: Aluminium (EN AW 6061)
Thread: Dash 10 / -10AN External thread
Dimensions total (HxWxD): 110mm x 68mm x 27mm
Hole spacing: 50mm
Bore diameter: 9mm
Diameter: 20mm


Fits for:
Garrett T-chargers or big GT (e.g. GT42)
Garrett T3
Garrett T3/T4
Garrett GT32
Garrett T4. T04
Garrett GT40. GT42. GT45. GT47
Garrett GTX40. GTX42. GTX45. GTX47
Garrett GT4082
Garrett GT4088. GT4088R. GTX4088R
Garrett GT4708. GT4708R
Garrett GT4718. GT4788
Garrett GT40R. GT4088R
Garrett GT40/42R. GT4042R. GT4094R. GTX4094R
Garrett GT42. GT4294. GT4202. GT4294R. GT4202R. GTX4202R
Garrett GT45R. GT4508R. GTX4508R
Garrett GT47R. GT4780R. GT4708R
Garrett GT47R. GT4788R. GT4718R
BorgWarner AirWerks S200. S200SX
BorgWarner AirWerks S300. S300SX3
BorgWarner AirWerks S400. S400SX3. S400SX4
BorgWarner AirWerks S500. S500SX
BorgWarner AirWerks S510

some BorgWarner KKK turbochargers like K24 K26 K27 and Precision Turbo. Turbonetics. etc.

What you should pay attention to:
For the supply line. select at least a Dash 4 line. The oil return line must be at least Dash 10 or at least 16mm (inner diameter)!
