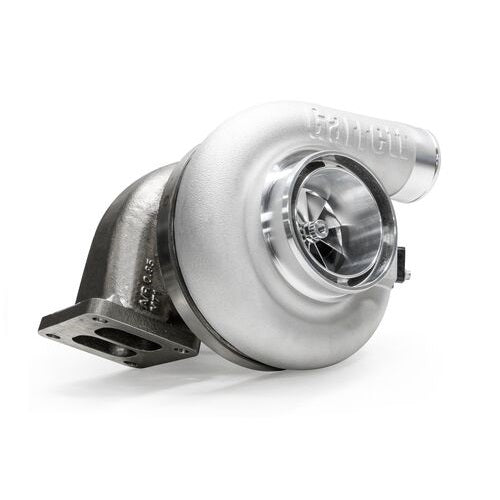

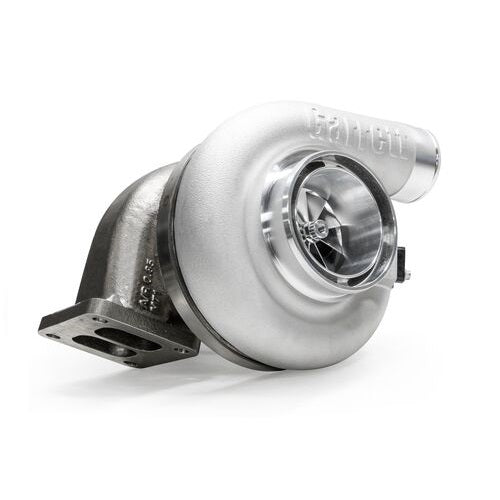

VTT Garrett G-Series G40 Turbochargers

VTT Garrett G-Series G40 Turbochargers

$3,766.30 Inc. VAT
$3,923.23 $3,766.30 Inc. VAT
9th Anniversary Badge

Price Match

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

Product Features:

  • Quick spooling, high horsepower solution for 2.0 liter up to 6.0 liter engine platforms
  • G Series compressor aero increases flow up to 32% (compared to GTX4088R)
  • Dual ceramic ball bearing with steel cages
  • G Series turbine aero increases flow 16% (compared to GTX4088R)
  • Inconel turbine wheel with 77mm inducer flows up to 43 lbs/min
  • Lightweight aluminum backplate
  • Fully machined speed sensor and pressure ports
  • Water fittings included with super core
  • Stainless steel turbine housings now available with V-Band inlet
  • V-Band In/Out turbine housing V-Band dimensions are equal to G42 and G45 models
  • High Flow but compact compressor housing design makes for smaller overall footprint



Additional information

Weight 35 lbs
Dimensions 14 x 14 x 14 in
Turbocharger Model

G40-900, G40-1050
Turbocharger Housing

w/ T4 Divided .85 A/R Turbine Housing, w/ T4 Divided .95 A/R Turbine Housing, w/ T4 Divided 1.06 A/R Turbine Housing, w/ T4 Divided 1.19 A/R Turbine Housing, w/ .85 A/R V-BAND IN/OUT Turbine Hsg, w/ .95 A/R V-BAND IN/OUT Turbine Hsg, w/ 1.06 A/R V-BAND IN/OUT Turbine Hsg, w/ 1.19 A/R V-BAND IN/OUT Turbine Hsg, CHRA G40-900, CHRA G40-1150



Feel free to contact us at info@mlperformance.co.uk should you wish to double check!



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



GRT-TBO-P67 (G40-900 / w/ T4 Divided .85 A/R Turbine Housing)

GRT-TBO-P68 (G40-900 / w/ T4 Divided .95 A/R Turbine Housing)

GRT-TBO-P69 (G40-900 / w/ T4 Divided 1.06 A/R Turbine Housing)

GRT-TBO-P70 (G40-900 / w/ T4 Divided 1.19 A/R Turbine Housing)

GRT-TBO-P92 (G40-900 / w/ .85 A/R V-BAND IN/OUT Turbine Hsg)

GRT-TBO-P93 (G40-900 / w/ .95 A/R V-BAND IN/OUT Turbine Hsg)

GRT-TBO-P94 (G40-900 / w/ 1.06 A/R V-BAND IN/OUT Turbine Hsg)

GRT-TBO-P95 (G40-900 / w/ 1.19 A/R V-BAND IN/OUT Turbine Hsg)

GRT-TBO-R11 (G40-900 / CHRA G40-900)

GRT-TBO-P71 (G40-1050 / w/ T4 Divided .85 A/R Turbine Housing)

GRT-TBO-P72 (G40-1050 / w/ T4 Divided .95 A/R Turbine Housing)

RT-TBO-P73 (G40-1050 / w/ T4 Divided 1.06 A/R Turbine Housing)

GRT-TBO-P74 (G40-1050 / w/ T4 Divided 1.19 A/R Turbine Housing)

GRT-TBO-P96 (G40-1050 / w/ .85 A/R V-BAND IN/OUT Turbine Hsg)

GRT-TBO-P97 (G40-1050 / w/ .95 A/R V-BAND IN/OUT Turbine Hsg)

GRT-TBO-P98 (G40-1050 / w/ 1.06 A/R V-BAND IN/OUT Turbine Hsg)

GRT-TBO-P99 (G40-1050 / w/ 1.19 A/R V-BAND IN/OUT Turbine Hsg)

GRT-TBO-R12 (G40-1050 / CHRA G40-1150)



Manufactured by

Vegas Turbocharger Technologies
