Wössner Citroën Peugeot 206 XSi & C2 VTS TU5JP4 1.6 16v High Comp Forged Piston Kit
Wössner Citroën Peugeot 206 XSi & C2 VTS TU5JP4 1.6 16v High Comp Forged Piston Kit
Questions about this part?
Our technical advisors can confirm fitment for your vehicle. Contact us with your vehicle details.

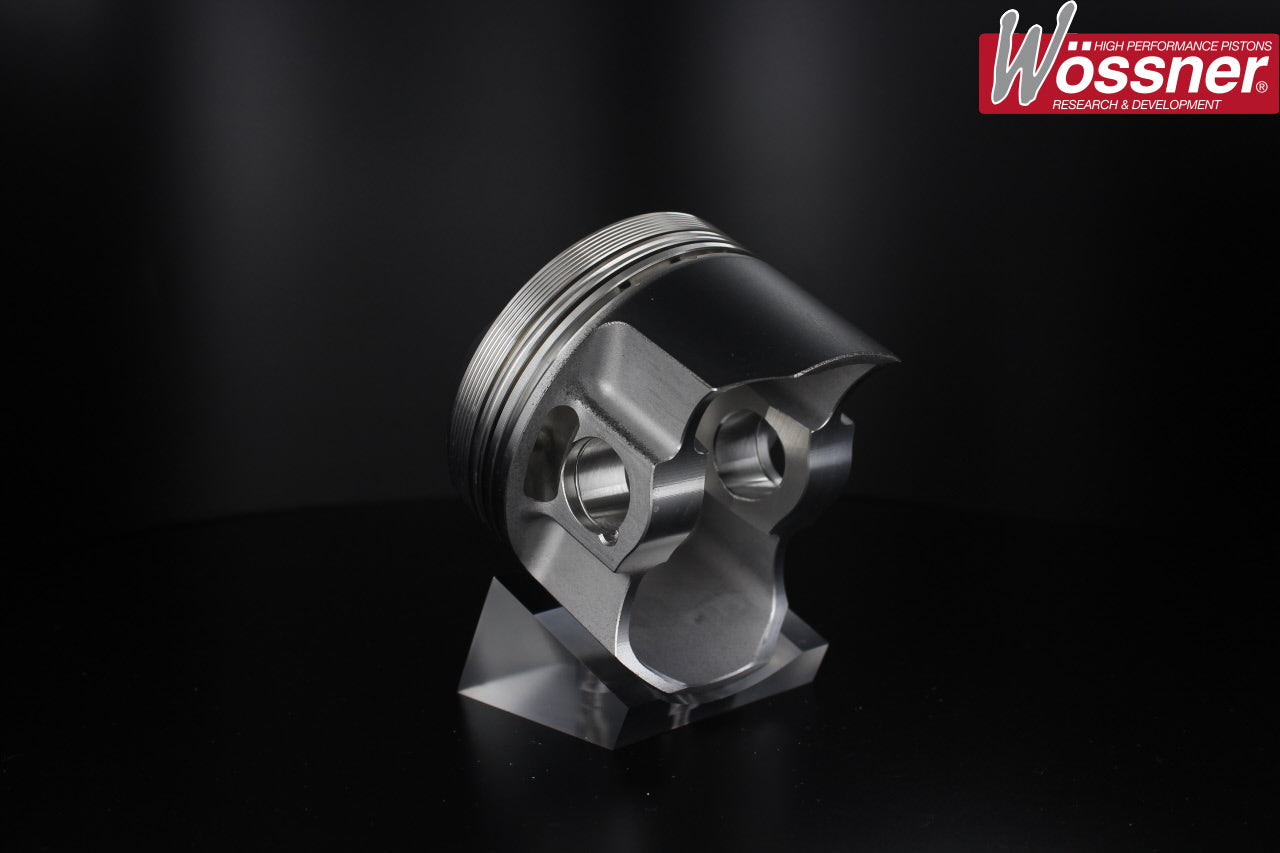

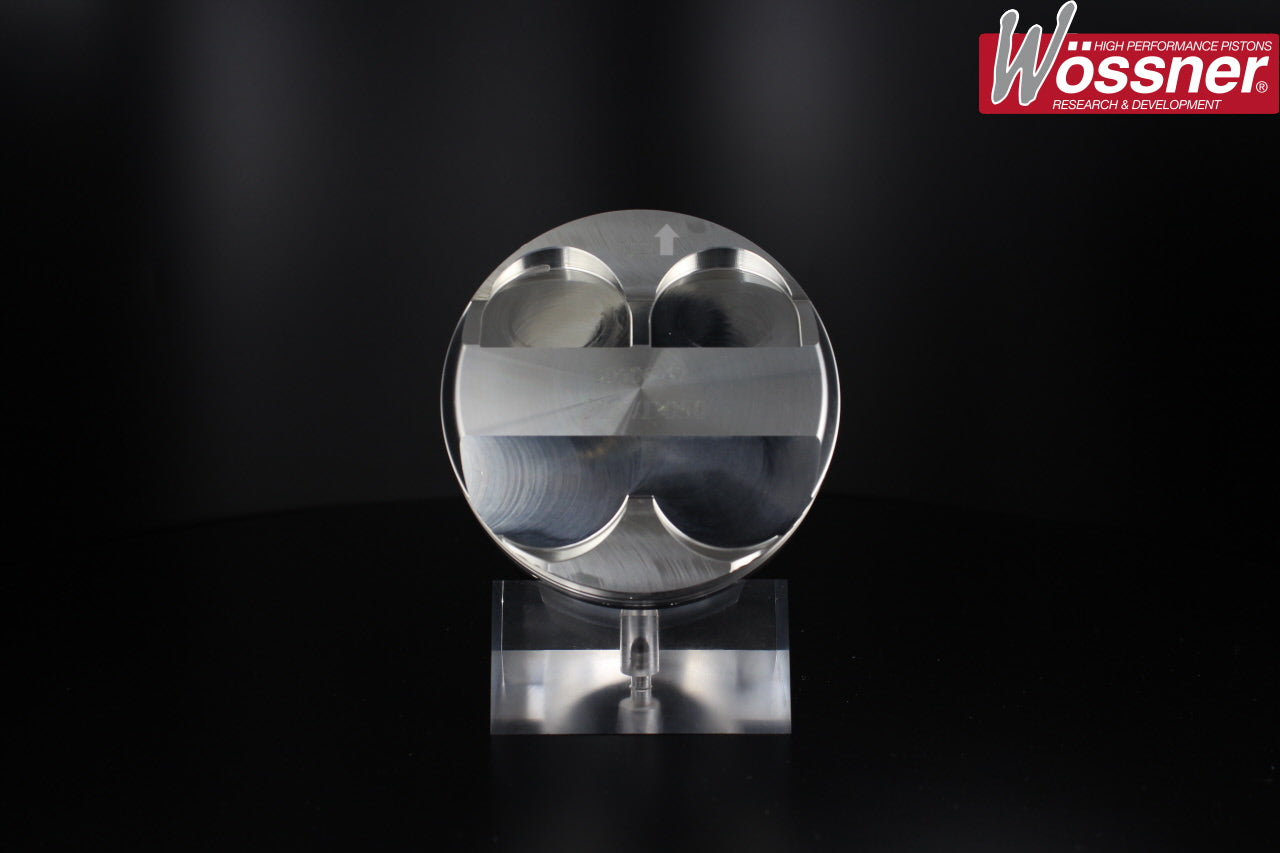

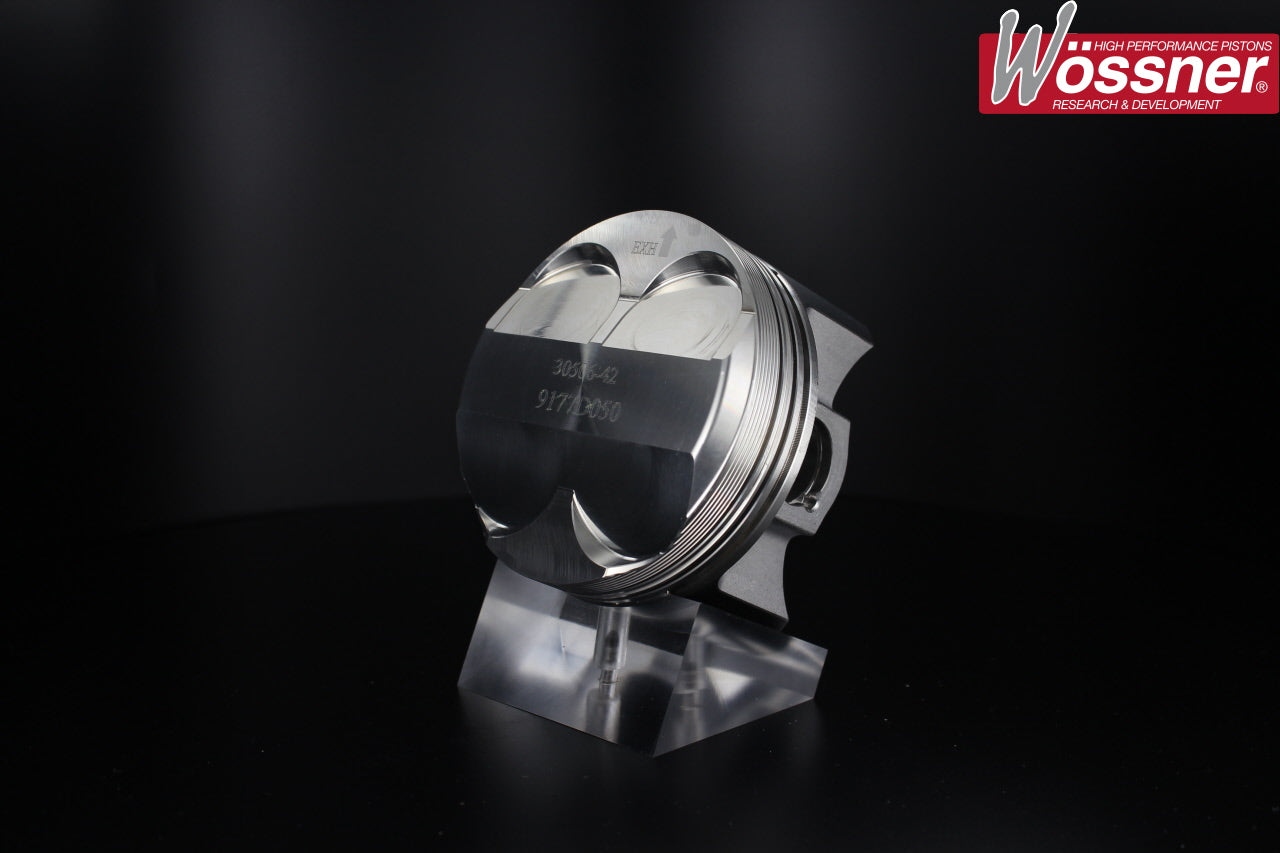

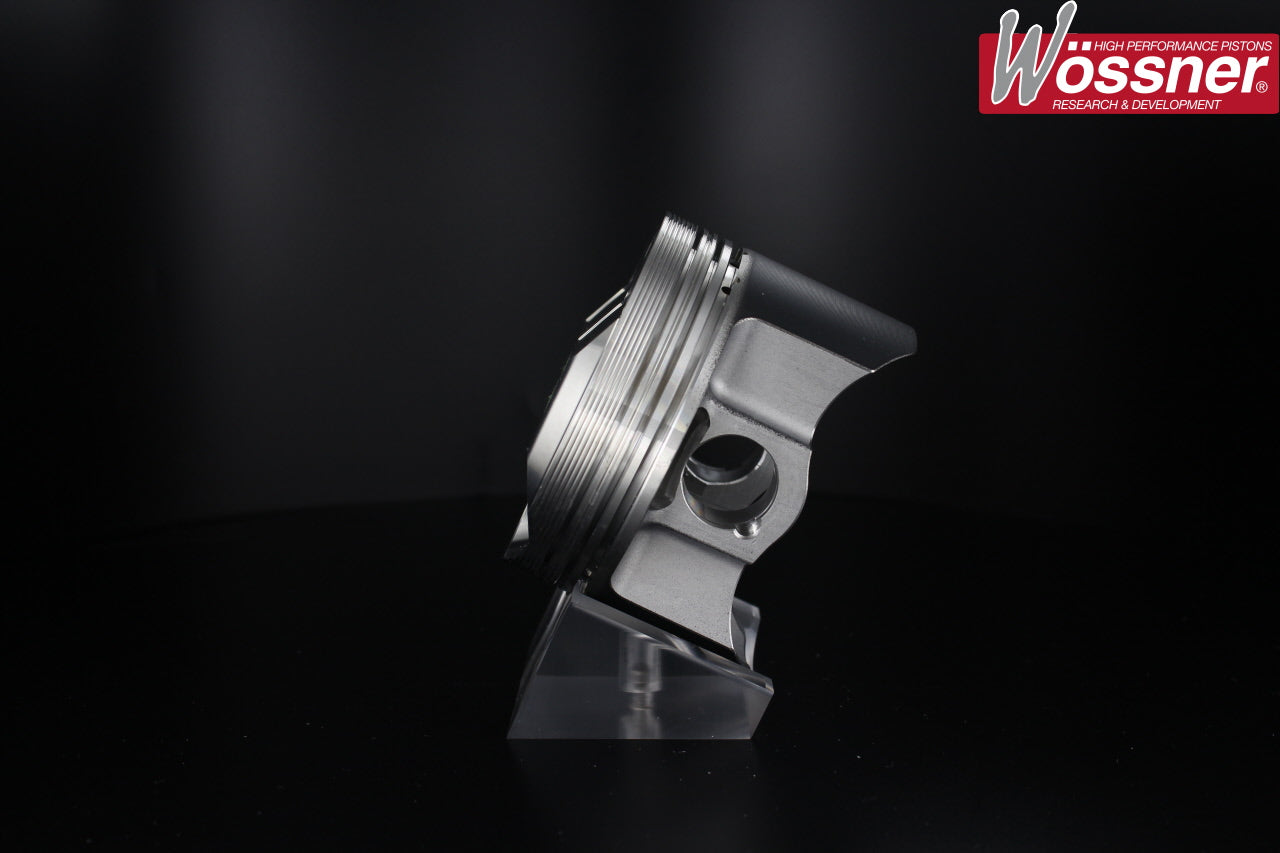

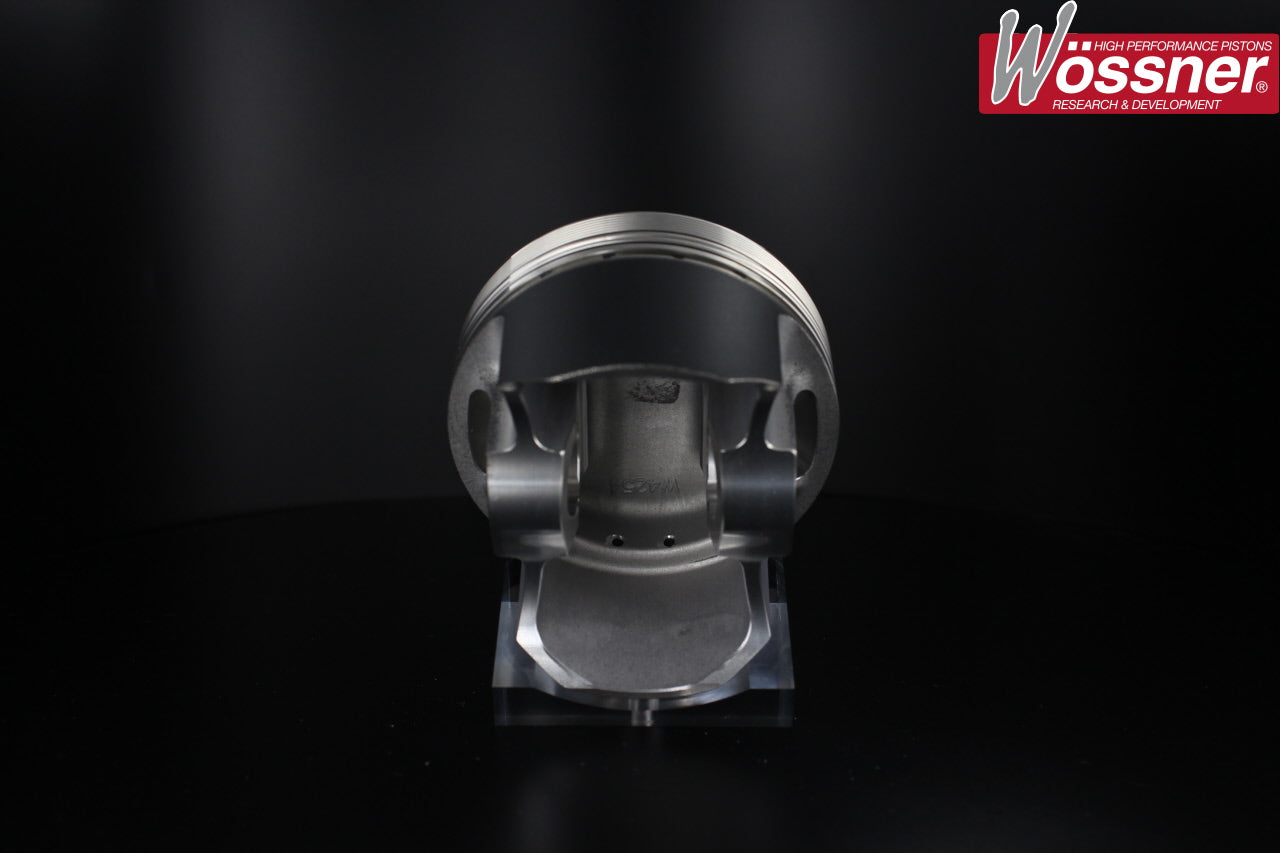

This is the Wössner Citroën Peugeot 206 XSi & C2 VTS TU5JP4 1.6 16v High Comp Forged Piston Kit.
- Manufacturer Citroën, Peugeot
- Kit Part Number K9177
- Engine Code TU5JP4
- YOM From 2000
- YOM To 2009
- Piston number K9177D020, K9177D050, K9177D150, K9177DA
- Bore Size 78.5mm, 78.7mm, 79mm, 80mm
- Stroke 82mm
- Compression Height 32.1mm
- OEM Comp Ratio 10.8:1
- Number of Rings 3
- OEM Rod Length 133.6mm
- Clip Part Number CW18
- Pin Size 18mm
- Pin Part Number WP031
- Cylinders 4
- Valves Per Cylinder 4
- Suits Wossner Con Rod G0010
- Con Rod Length C/C 133.5mm
Bore Size
78.5 mm
- Piston Size: 78.43mm – K9177DA
- Over Size: 0mm
- Displacement CC: 1587cc
- Dome / Bowl Volume: 8.72cc
- Wossner Comp Ratio: 12.2:1
- Ring Part Number: 785XDS
78.7mm
- Piston Size: 78.63mm – K9177D020
- Over Size: 0.2mm
- Displacement CC: 1595cc
- Dome / Bowl Volume: 8.72cc
- Wossner Comp Ratio: 12.26:1
- Ring Part Number: 787XDS
79mm
- Piston Size: 78.93mm – K9177D050
- Over Size: 0.5mm
- Displacement CC: 1607cc
- Dome / Bowl Volume: 8.72cc
- Wossner Comp Ratio: 12.34:1
- Ring Part Number: 790XDS
80mm
- Piston Size: 79.93mm – K9177D150
- Over Size: 1.5mm
- Displacement CC: 1648cc
- Dome / Bowl Volume: 8.72cc
- Wossner Comp Ratio: 12.63:1
- Ring Part Number: 800XDS
Citroën, Peugeot
206 XSi & C2 VTS TU5JP4 1.6 16v
To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
K9177
